top class muti-fuel steam boiler china manufacturer boiler

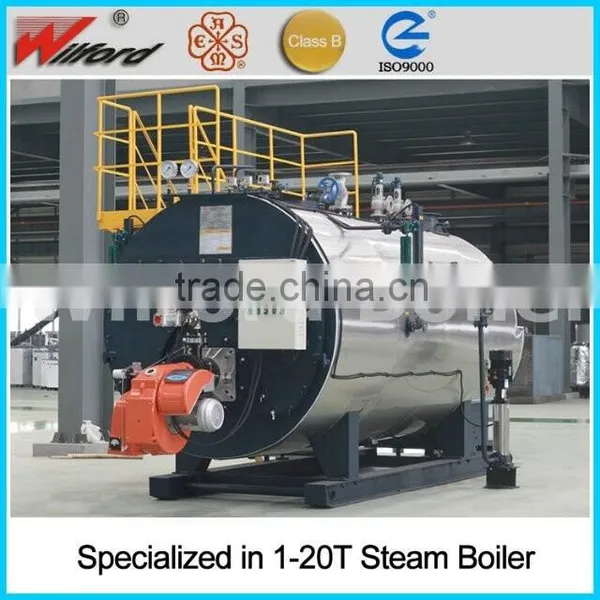

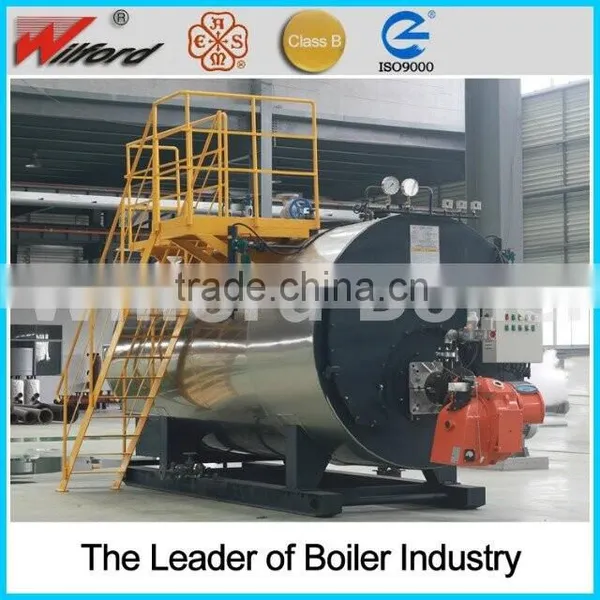

Boiler structure
Detail Introduce of boiler
1. WILFORD steam boilers adopt Three pass wet-back structure,safe and reliable.
2. Using corrugated furnace, not only strengthen the flue gas disturbance, but increase radiation heat transfer area;Both enhanced heat transfer effectiveness and promote fuel in the combustion chamber.
3. The heating surface layout is symmetrical,water cycle system is reasonable.
4. Upper boiler water capacity is large.
5. Steam room is large with a good steam quality.
6. Small fluctuations in the water level during operation.
7. The distance between two boiler drums is large,ensuring good natural cycle.
8. The unique design of furnace to gurantee minimal heat loss of boiler.
Technical parameters
| Type | WNS0.5-0.7-Y.Q |
WNS1-1.0-Y.Q | WNS2-1.0-Y.Q | WNS3-1.0-Y.Q | WNS4-1.25-Y.Q | ||
| Project | Unit | ||||||
| Rated evaporation | t/h | 0.5 | 1 | 2 | 3 | 4 | |
| Rated working pressure | MPa | 0.7 | 1.0 | 1.0 | 1.0 | 1.25 | |
| Staturated steam temperature | 170 | 184 | 184 | 184 | 193 | ||
| Fuel consumption | Light diesel oil | kg/h | 32.5 | 65 | 130 | 195 | 260 |
| Natural gas | Nm3/h | 35 | 70 | 140 | 210 | 280 | |
| Liquefied gas | Nm3/h | 15 | 30 | 60 | 90 | 120 | |
| Pipeline gas | Nm3/h | 85 | 170 | 340 | 510 | 680 | |
| Infall caliber | DN | 25 | 25 | 40 | 40 | 50 | |
| Main valve caliber | DN | 40 | 65 | 80 | 80 | 100 | |
| Safty valve caliber | DN | 40 | 50 | 40×2 | 40×2 | 50×2 | |
| Sewage valve caliber | DN | 40 | 40 | 50 | 50 | 50 | |
| Overall size | Length | mm | 3500 | 3900 | 4300 | 4500 | 5000 |
| Width | mm | 2000 | 2500 | 2700 | 2850 | 3000 | |
| Hight | mm | 2150 | 2300 | 2500 | 2980 | 3200 | |
| Weight | kg | 3300 | 4600 | 7100 | 9200 | 11000 | |
Advantage
- Flexible perfornance for fluctuating steam demand
- Sturdy,reliable and with an unparalleled serivce life
- Economical and low emission
- Maximum service availability and safety
- High steam quality for demanding users
- For all burner system,also NOx-reduced
- Easy operation and maintenance

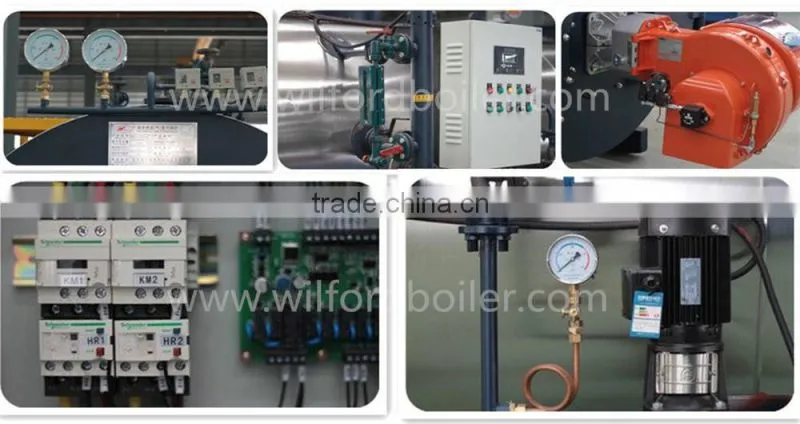

Parts of boiler
Certification
1.China High-tech Enterprise
2.Class B Boiler Manufacturing
3.ASME
4.IS9000:2008
5.Etc.
Boiler Factory
Customers' visit
Our products are exported all over the word,like Southeast Asia, Middle East,Russia,Africa,South America.etc

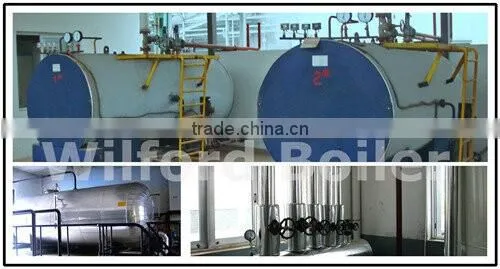

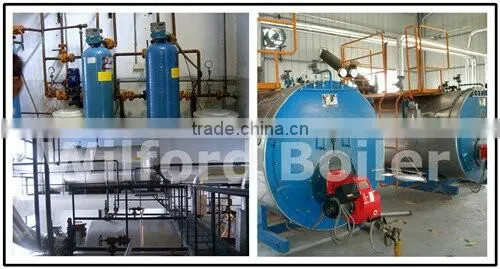

Boiler house(Optional)
1.Built a steam boiler house.
2.Preparing piping as steam boiler technical data.
3.Preparing electricity as required.
4.Installed steam boiler as manual.
5.Commissioning steam boiler as manual.
6.Operating steam boiler.
After-sale service
1. one year warranty with full life after-sale services.
2. Powerful technical support and services.
3. Fast response within 24hours.

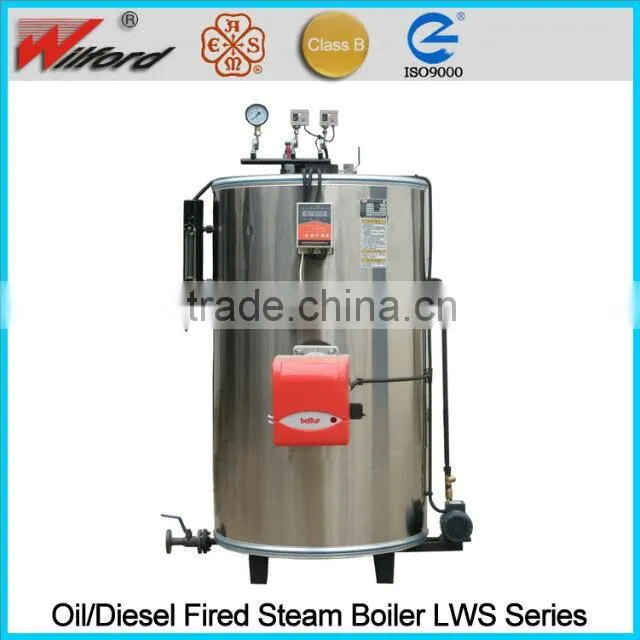

Vertical style steam boiler
1.100-300kg/h steam boiler 2.0.5-2t/h steam boiler
