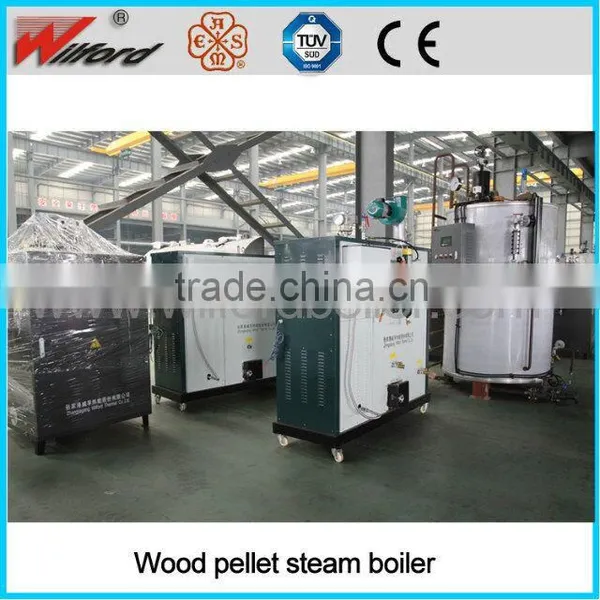

CE High Safety Biomass Steam Boiler

Name: CE High Safety Biomass Steam Boiler
Brand: WILFORD
SKU: 111865263

Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Type:

Natural Circulation

Usage:

Industrial

Zhangjiagang Wilford Thermal Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shanghai

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Type Natural Circulation

Usage Industrial

Structure Other

Pressure Low Pressure

Style Vertical

Fuel Other, Biomass Materials

Place of Origin Jiangsu, China

Brand Name WILFORD

Output Steam

Weight 14.4-21.8t, 14.4-21.8t

Certification ASME ISO SGS TUV

After-sales Service Provided Engineers available to service machinery overseas

High efficiency biomass steam boiler

1.Long life time:sweeping function after preset can extend its service life;

2.Environment protecting:the unique design can reduce NOx emissions;

3.Easy for maintenance :smoke pipes box uses multi-level sealing approaches;

4.High efficiency:horizontal structure has area ample heated

5.Quality steam:steam evaporation surface is arge;

6.Full automatic:advanced touch screen controller,digital prosecution;

7.Safe and reliable:with a variety of alarm interlock devices

Some fuels

biomass steam boiler series technical Parameter

Item			Model	DZL-1-0.7-AII	DZL1-1.0-AII	DZL2-1.0-AII	DZL2-1.25-AII	DZL2-1.6-AII
Item			Unit	DZL-1-0.7-AII	DZL1-1.0-AII	DZL2-1.0-AII	DZL2-1.25-AII	DZL2-1.6-AII
Rated steam evaporation			t/h	1	1	2	2	2
Rated steam pressure			Mpa	0.7	1	1	1.25	1.6
Rate steam temperature			'C	170	184	184	193	204
Water supply temperature			'C	20	20	20	20	20
Heating area	main body	emissions		614	6.14	6.8	16.8	16.8
	main body	convection	m2	214	21.4	44.5	44.5	44.5
	economizer					28.2	28.2	28.2
	economizer
chain grate effctive area			m2	2.4	2.4	3.42	3.42	3.42
maximum transportation size			mm	474721312866	474521312866	605124823051	605124813052	605225023151
maximum installation size			mm	474525553065	474625553066	605136224234	605136224236	605138414236
boiler room size			m	1096	1096	12107	12107	12107
maximum transportation weight			t	14.4	14.5	19.7	19.7	21.8
