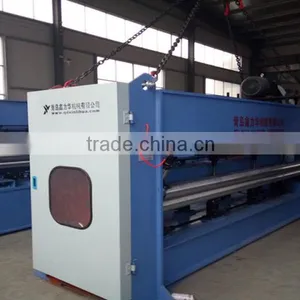

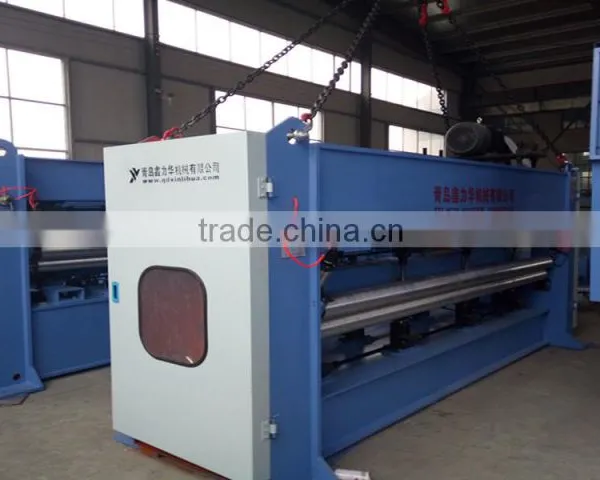

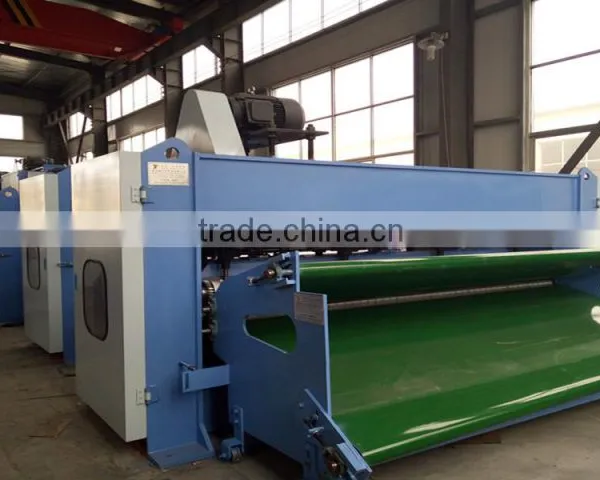

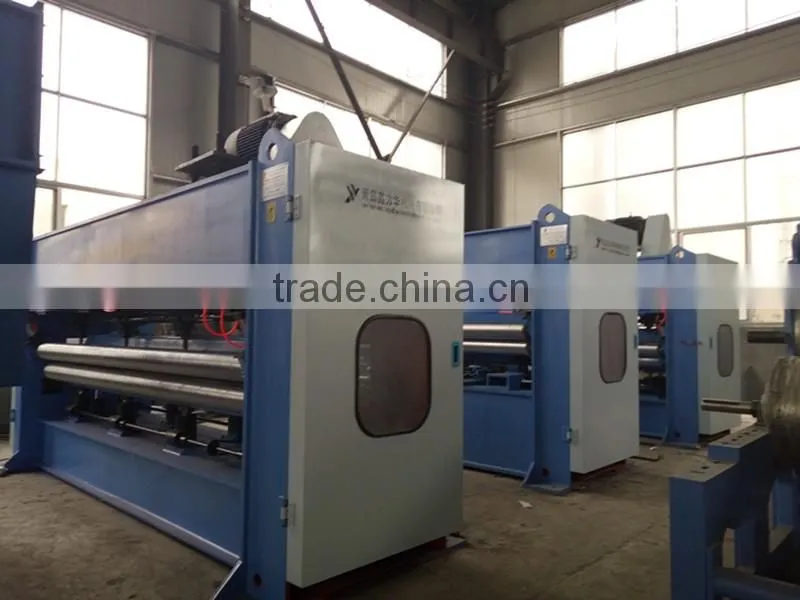

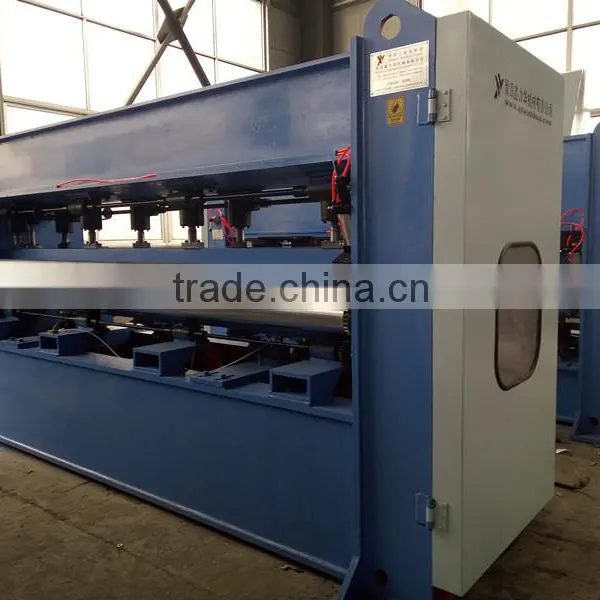

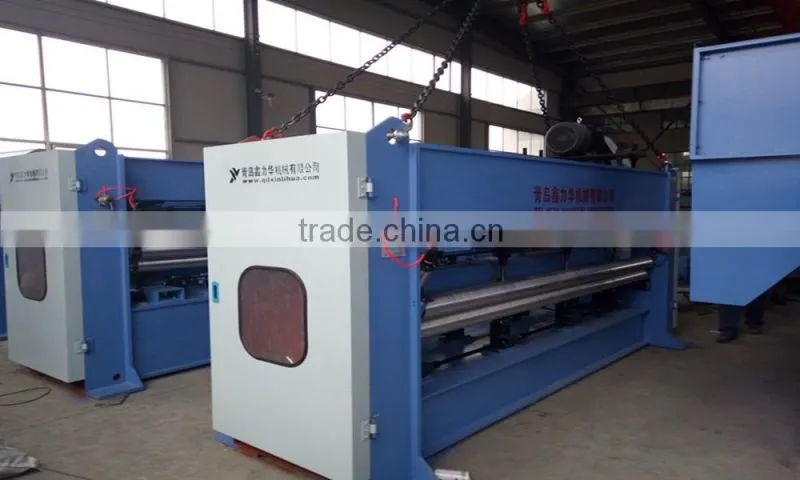

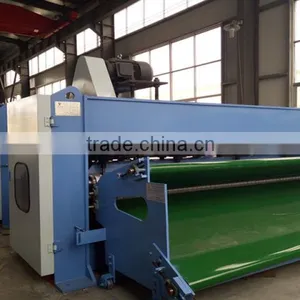

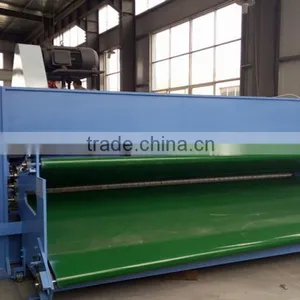

XLHZC-360 Needle punched loom and Needle punching machine
Function
Used for reinforcing and surface finishing of nonwoven fabrics.
Main specification
Working width: 2200-8000mm
Needle density: 5000-7000n/m*2 boards
Needle stroke: 30-70mm
Needle frequency: 800s/min
Needling type: single or double boards,
up stroke or down stroke
Structure
1.Crank case complete with a horizontal and vertical balance system.
2.Central oil lubrication circulation and cooling system complete with pressure and temperature alarm systems
3.Magnesium alloy/ PU combined needle board locked firmly by lock-bolt or air tube;multi random computer needling pattern for needle board.

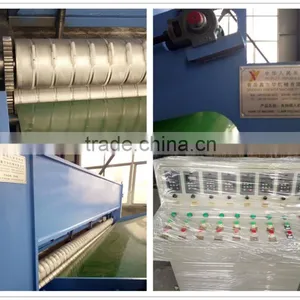

4. Chrome plated delivery rollers with carved or patterned surface.
5. Auto top and bottom dead center controlled stop.

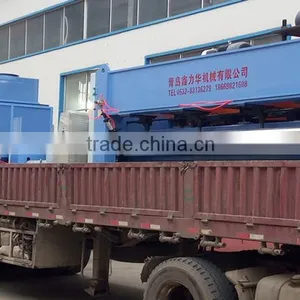

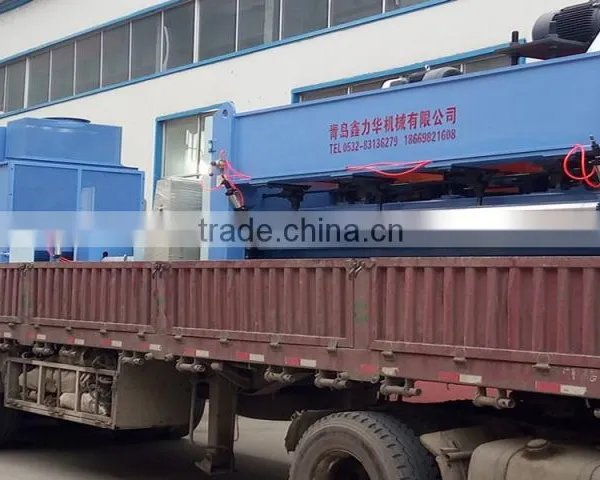

Moistureproof gown, Nude packing ,Wooden case ,Container .
1.Warranty
The warranty period shall be valid for 12 months after completion of the commissioning. During the warranty period, if any defect and fault is discovered, XinLihua grants a prompt action to solve the problem.
2.Installation & maintenance
XinLiHua will send one or two engineers to the Buyer’s factory to help the Buyer for the installation and commissioning of the production line at the request of the Buyer. The Buyer should provide the allowance , round-trip air tickets, accommodation, workers and translator. The installation and commissioning will take around 15 days to one month according to different production lines.
We are professional manufacturer for nonwoven machine many years, in order that we can supply the exact price and corresponding technical data, please kindly confirm your details requirement as follows:
1. What's the final products?
2. What's the width of the products?
3. What's the Gsm( grams per square meter )and thickness of products?
4. What's the material you used? And what’s the specification of the raw material?
5. What's the capacity you need?
6. Do you have any pics or samples of our final products? If YES,please send XinLiHua Company via express to the Add as follow:XinLihua Company,Taizhong Road,Wangtai Town,Huangdao District,Qingdao City,Shandong,China.
Contact Person:Jack lee
Mobile:0086 18669821608
TEL: 0086 532 83136279
Wechat: a18669821608
Skype: a18669821608
Whatsapp: 008618669821608
Website:
We are a professional factory, compared with those trading companies on the Alibaba webstie, we better understand the process of the product, the performance of the equipments, so we can provide customers with the most reasonable process and equipments configuration at a reasonable price.
So you have to carefully judge, in the Alibaba website, which is the factory, which is a trader. If you choose to cooperate with our factory, you can save more time, energy and money.
Just tell us the usage of your product, the weight (gsm) of the product you want to produce, the maximum width, the thickness of the product, and the type of fiber used. If you can provide samples to us, then we can give you more quickly to make professional design.
When we reach a partnership, customers can save the cost of the additional fees paid to the traders, And also, customers can enjoy a more professional pre-sales guidance, after-sales service, equipment use training.
Above is our faithful suggestion, hope to cooperate with you happy.
