5M USB Digital Microscope for Education

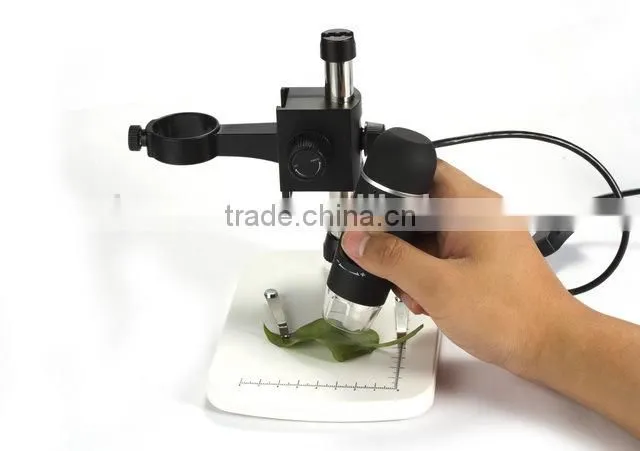

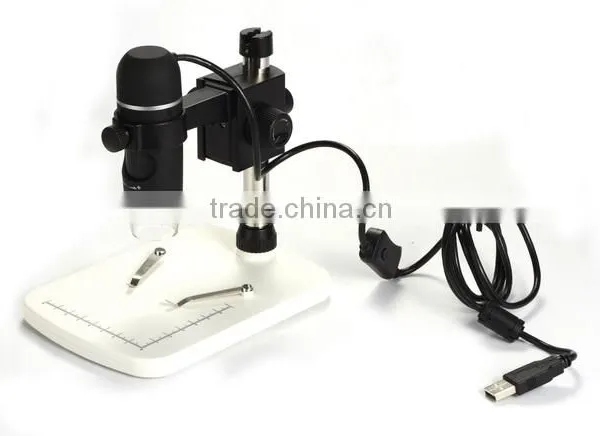

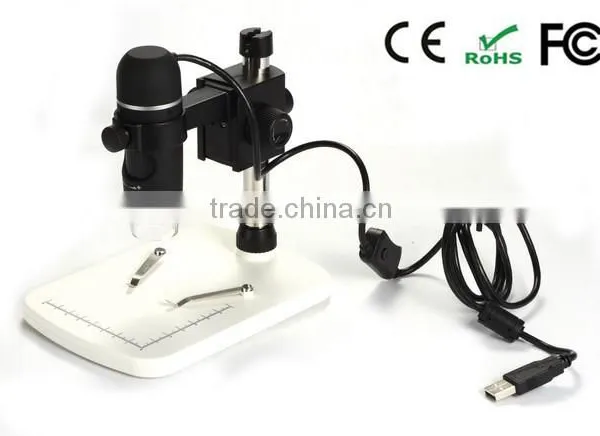

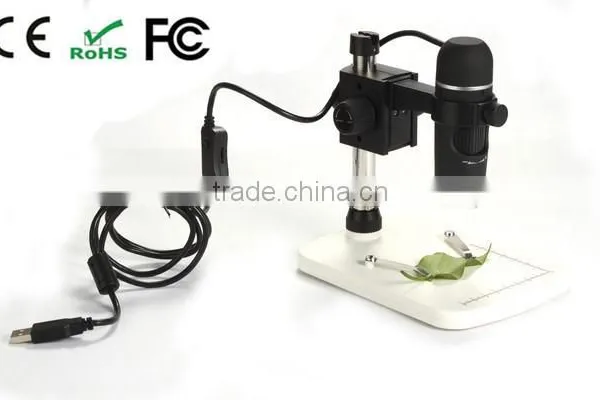

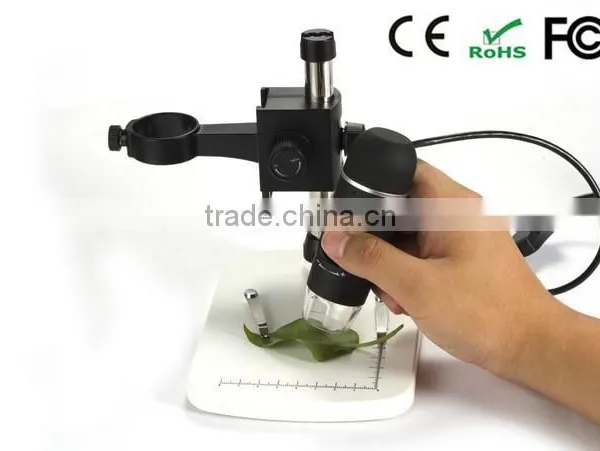

Overview of USB Digital Microscope:
This usb measuring microscope is a high-tech while easy to use Digital Microscope. With this unit you may see a unique & “bigger” world.
This usb measuring microscope is applicable in many fields such as visual inspection on electronic components, and materials in a full range of uses, beauty shop and education.
Its 5M image sensor presents vivid and sharp amazing image. 8 LEDs with brightness adjustable are good for any inspection enviornment.
The measurement software can help you to measure tiny objects easily and precisely (as small as 0.001mm).
All those excellent features make it a good aid for your daily inspection on tiny objects.
Main Features of USB Digital Microcope:
* Image Sensor: 5 Mega Pixels (true resolution)
* Still capture resolution: 5M, 3M, 1.3M, VGA, QVGA
* Video capture resolution: 5M, 3M, 1.3M, VGA, QVGA
* Focus Range: Manual focus from 10mm to 500mm
* Frame Rate: Max 30f/s under 600 Lus Brightness
* Magnification Ratio: 10x to 300x
* Video format: AVI
* Photo format: JPEG or BMP
* Light source: 8 LED (adjustable by control wheel)
* PC interface: USB2.0
* Operation system: Windows XP/Vista/Win7/Win8, Mac OS X 10.6 or above
* OSD language: English, German, Spanish, French, Russian
* Bundle software: MicroCapture with measurement (for Windows and Mac)
* Product Size: 115mm (L) x 33mm (R)
* Weight: 90g
Detailed Specifications of USB Digital Microcope:
Model No.: |
UM012C |
|
Description: |
USB Digital Microscope |
|
Specifications |
Image Sensor: |
5 Mega Pixels (true resolution) |
Stillcapture resolution: |
5M, 3M, 1.3M, VGA, QVGA |
|
Video capture resolution: |
5M, 3M, 1.3M, VGA, QVGA |
|
Focus Range: |
Manual focus from 10mm to 500mm |
|
Frame Rate: |
Max 30f/s under 600 Lus Brightness |
|
Magnification Ratio: |
20x to300x |
|
Video format: |
AVI |
|
Photo format: |
JPEG or BMP |
|
Light source: |
8 LED (adjustable by control wheel) |
|
PC interface: |
USB2.0 |
|
Operation system: |
Windows XP/Vista/Win7, Mac OS X 10.6 or above |
|
OSD language: |
English,German,Spanish,French Russia |
|
Bundle software: |
MicroCapture with measurement |
|
Product Size: |
115mm (L) x 33mm (R) |
|
Weight: |
980g |
|
Warranty: |
1 year |
|
Certificates: |
With CE, FCC approval, RoHS |
|

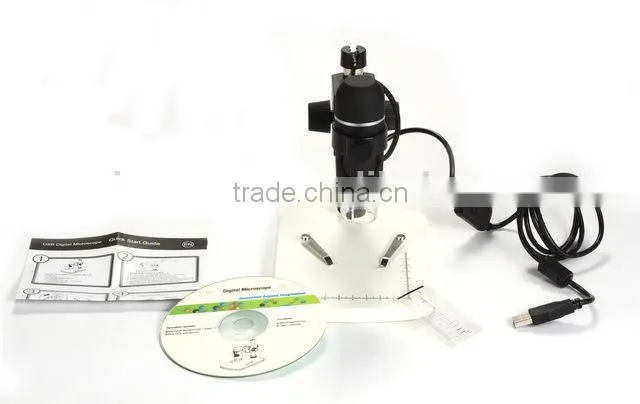

Package contents of USB Digital Microscope
usb measuring microscope
Professional stand
Software CD
User’s manual
Packaging info:
1pc usb measuring microscope per Gift box
12pcs/carton
11.8kgs/carton
45x36x43cm/carton
