2M USB Digital Microscope With 8 LED 400x Measurement Software Compatible With Windows & Mac

2M USB Digital Microscope With 8 LED 400x Measurement Software Compatible With Windows & Mac thumbnail-1
2M USB Digital Microscope With 8 LED 400x Measurement Software Compatible With Windows & Mac thumbnail-2
2M USB Digital Microscope With 8 LED 400x Measurement Software Compatible With Windows & Mac thumbnail-3
2M USB Digital Microscope With 8 LED 400x Measurement Software Compatible With Windows & Mac thumbnail-4
2M USB Digital Microscope With 8 LED 400x Measurement Software Compatible With Windows & Mac thumbnail-5
2M USB Digital Microscope With 8 LED 400x Measurement Software Compatible With Windows & Mac thumbnail-6
2M USB Digital Microscope With 8 LED 400x Measurement Software Compatible With Windows & Mac photo-1
2M USB Digital Microscope With 8 LED 400x Measurement Software Compatible With Windows & Mac photo-2
2M USB Digital Microscope With 8 LED 400x Measurement Software Compatible With Windows & Mac photo-3
2M USB Digital Microscope With 8 LED 400x Measurement Software Compatible With Windows & Mac photo-4
2M USB Digital Microscope With 8 LED 400x Measurement Software Compatible With Windows & Mac photo-5
2M USB Digital Microscope With 8 LED 400x Measurement Software Compatible With Windows & Mac photo-6
US$ 23 - 29 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Winmax/ OEM/ ODM
Model Number:
UM019
Contact Supplier Request Quote Chat Now
Shenzhen Mustech Electronics Co., Limited
Payment & Shipping
Payment Methods:
Port of Shipment:
hongkong
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name Winmax/ OEM/ ODM
Model Number UM019
Theory Video Microscope
Drawtube Monocular

Specifications

* 1.3M up to 2M by interpration
* 20x-400x usb digital microscope
* With Measurement function
* Compatible with Windows & Mac

Overview:



The 400x USB Digital Microscope is a high-tech while easy to use Digital Microscope. With this unit you may see a unique & “bigger” world.
It is applicable in many fields such as visual inspection on electronic components, and materials in a full range of uses, beauty shop and education.
400x magnification bring you with tremendous details.
Its 1.3M image sensor presents vivid and sharp amazing image. 8 LEDs with brightness adjustable are good for any inspection enviornment.
The measurement software can help you to measure tiny objects easily and precisely (as small as 0.001mm).
All the excellent features make it a good aid for your daily inspection on tiny objects.



Detailed Specifications:



* Image sensor: 1.3 Mega Pixels (interpolated to 2M)
* Focus Range: Manual focus from 10mm to 500mm
* Frame Rate: Max 30f/s under 600 Lus Brightness
* Magnification Ratio: 10x to 400x
* Light source: 8 LED (adjustable by control wheel)
* Still capture resolution: 1600x1280 (2M), 1280x1024, 1024x960, 1024x768,
                                            800x600, 640x480, 352x288, 320x240

* Video capture resolution: 1600x1280 (2M), 1280x1024, 1024x960, 1024x768,
                                                800x600, 640x480, 352x288, 320x240

* Frame Rate: Max 30f/s under 600 Lus Brightness
* Video format: AVI
* Photo format: JPEG or BMP
* PC interface: USB2.0
* Power source: 5V DC from USB port
* Operation system: Windows2000/XP/Vista/Win7/Win8, Mac OS X 10.6 or above
* OSD language: English, German, Spanish, Korean, French, Russian
* Bundle software: MicroCapture with measurement & calibration function
* Working temperature: -20°C ~ +60°C
* Size: 130mm (L) x 33mm (R)



Model No.:

UM019

Description:

USB Digital Microscope

Specifications

Image Sensor:

2 Mega Pixels (interpolated to 2M)

Still capture resolution:

1600x1280 (2M), 1280x1024, 1024x960, 1024x768, 800x600, 640x480, 352x288, 320x240,

Video capture resolution:

1600x1280 (2M), 1280x1024, 1024x960, 1024x768, 800x600, 640x480, 352x288, 320x240,

Focus Range:

Manual focus from 10mm to 500mm

Frame Rate:

Max 30f/s under 600 Lus Brightness

Magnification Ratio:

20x to 400x

Video format:

AVI

Photo format:

JPEG or BMP

Light source:

8 LED (adjustable by control wheel)

PC interface:

USB2.0

Operation system:

Windows XP/Vista/Win7,

Mac OS X 10.6 or above

OSD language:

English, German, Spanish, French, Russian

Bundle software:

MicroCapture with measurement

Product Size:

125mm (L) x 33mm (R)

Weight:

150g

Warranty:

1 year

Certificates:

With CE, FCC approval, RoHS compliance

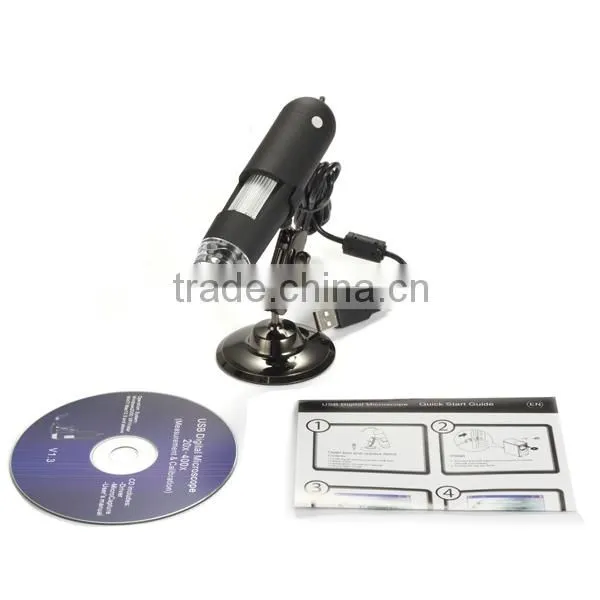

Package contents:



400x USB Digital Microscope

Metal stand



Software CD

User’s manual

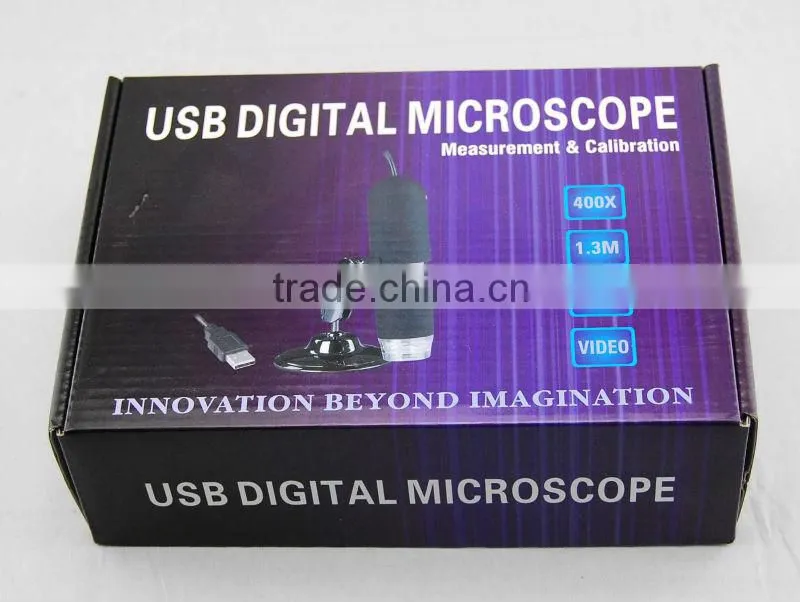

Packaging information:



1pc per Gift box



20pcs/carton

9.5kgs/carton

45.5(L)*34.5(W)*30.0(H) CM
