KB-125E Hydraform Terrazzo floor tile machine price
Product Description
machine sample for KB-125E Hydraform Terrazzo floor tile machine price
Features of KB-125E Hydraform Terrazzo floor tile machine price
1) KB-125E Hydraform Terrazzo floor tile machine price has three models: 400, 500 and 600.
2) KB-125E Hydraform Terrazzo floor tile machine price makes tiles popular size 300*300mm, 400*400mm, 500*500mm and 600*600mm, 600*300mm, 500*250mm
3). Its merits includes the high forming rapid, the high output, the PLC automatic control, the reliable performance, the convenient operation, the fully hydraopneumatic driving, the high producing speed of 5-8 pcs/min, the high rate of finished products, and the exceelent performance-price ratio.
4). It's made of cement, crushed stone and stone powder, formed by pressed, with the nice shape, various types, great stability and exact size.
5).It's multifunctional. By changing the mould, it could be used to produce stripe paving slabs, blind way brick, parking bricklawn brick....etc.
Performance of KB-125E Hydraform Terrazzo floor tile machine price
1). Requires just a few hours of instruction to become familiar with its operation;
2). Designed and constructed to the same high-quality engineering standards for which all of our equipment is known;
3). Imported hydraulic components are adopted in hydraulic system, the pressure can be adjusted. And Precise control components action.
4).Take hydraulic on worktable, high frequency pressure, automatic propulsion, etc. make molding cycle is short, high production efficiency, quality and density of large tiles, high strength, dimensional accuracy.
1. Speicification of KB-125E Hydraform Terrazzo floor tile machine price
KB-125E Hydraform Terrazzo floor tile machine price has three models 400, 500 and 600, please view following technical data of three models:
Model 400 -- KB-125E/400
| Equipment type | Model 400 | ||
| moulding speed | 6-7pcs/min | ||
| main frame power | 7.5kw | ||
| main frame weight | 5T | ||
| external dimension | 2700*1600*2480mm | ||
| normal size of tiles | 300*300mm, 400*400mm | ||
| capacity per shift | 2500 -3000pcs | ||
Model 500 -- KB-125E/500
| Equipment type | Model 500 | ||
| moulding speed | 5-6pcs/min | ||
| main frame power | 7.5kw | ||
| main frame weight | 7T | ||
| external dimension | 3300*1680*2700mm | ||
| normal size of tiles | 500*500mm, 400*400mm, 500*250mm | ||
| capacity per shift | 2000 -2500pcs | ||
Model 600 -- KB-125E/600
| Equipment type | Model 600 | ||
| moulding speed | 4-5pcs/min | ||
| main frame power | 7.5kw | ||
| main frame weight | 8T | ||
| external dimension | 3460*1830*2750mm | ||
| normal size of tiles | 600*600mm, 500*500mm, 400*400mm, 300*600mm | ||
| capacity per shift | 1000-2000pcs | ||
2. Difference between three models: model 400, model 500 and model 600 terrazzo tile machine :
KB-125E/400 can make 400*400mm, 300*300mm , 300-400m2 per day
KB-125E/500 can make 500*500mm, 400*400mm, 300*300mm, 500*250mm , 400-500 m2 per day
KB-125E/600 can make 600*600mm, 500*500mm, 400*400mm, 600*300mm , 500-700 m2 per day
big model can make small size
small model cannot make big size
customer can choose suitable model machine according his tile size and investment capacity

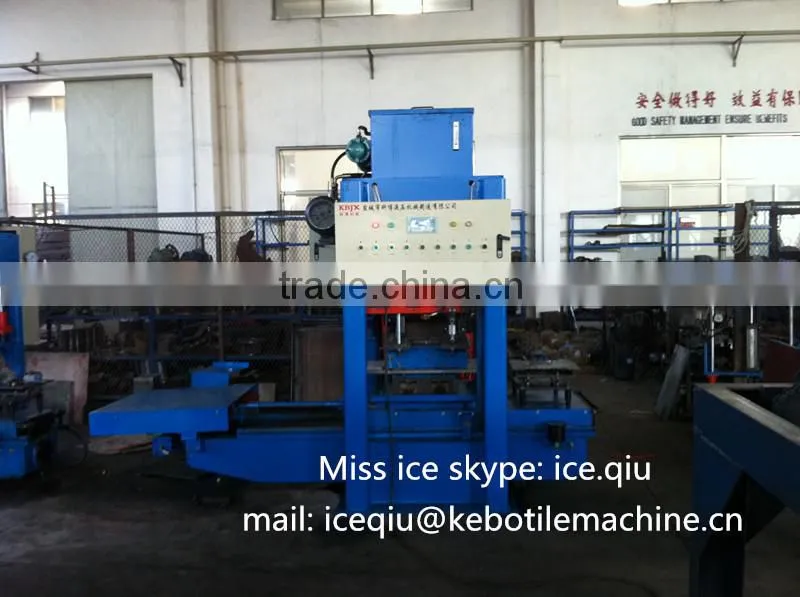

KB-125E/400 picture
KB-125E/500 picture
KB-125E/600 picture

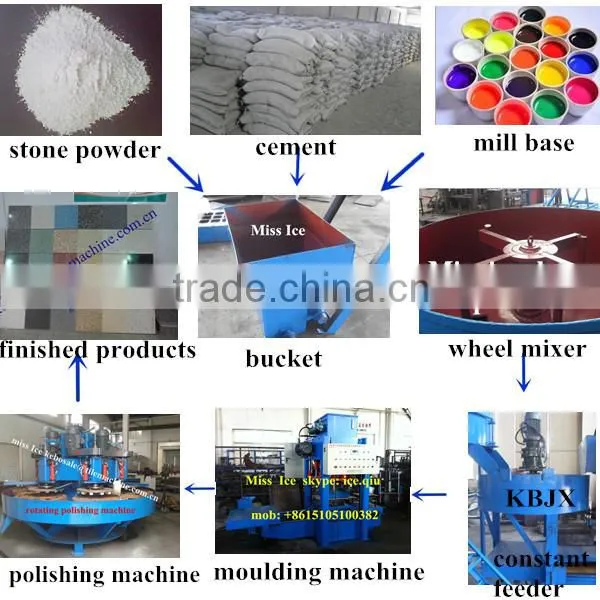

3. whole line picture of KB-125E Hydraform Terrazzo floor tile machine price
KBMJ polishing machine
to meet with three models of KB-125E Hydraform Terrazzo floor tile machine price , our polishing machine KBMJ also has three models, please view following specification, customer can choose or delete according their usage and production.
KBMJ400 matches KB-125E/400
| Equipment type | KBMJ400 | ||
| moulding speed | 9-15pcs/min | ||
| main frame power | 24kw | ||
| main frame weight | 3T | ||
| external dimension | 1950*1750mm | ||
| polishing tiles size | 300*300mm, 400*400mm | ||
| capacity per shift | 300-400 m2 | ||
KBMJ500 matches KB-125E/500
| Equipment type | KBMJ500 | ||
| moulding speed | 9-15pcs/min | ||
| main frame power | 31.5kw | ||
| main frame weight | 6T | ||
| external dimension | 2450*2150mm | ||
| polishing tiles size | 300*300mm, 400*400mm, 500*500mm | ||
| capacity per shift | 400-500 m2 | ||
KBMJ600 matches KB-125E/600
| Equipment type | KBMJ600 | ||
| moulding speed | 9-15pcs/min | ||
| main frame power | 36.5kw | ||
| main frame weight | 5T | ||
| external dimension | 2950*2320mm | ||
| polishing tiles size | 300*300mm, 400*400mm, 500*500mm, 600*600mm | ||
| capacity per shift | 500-700 m2 | ||
5. raw material and production process
| Raw materials | Specification | Ratio(kg) | Notes |
| Cement | P.O or P.S 32.5# | 50 | |
| Stone powder | Dia 2mm to 5mm | 80~100 | ≤ dia5mm |
| Cobble (crushed stone) | Dia 5mm to dia10mm | 100-150 | optional |

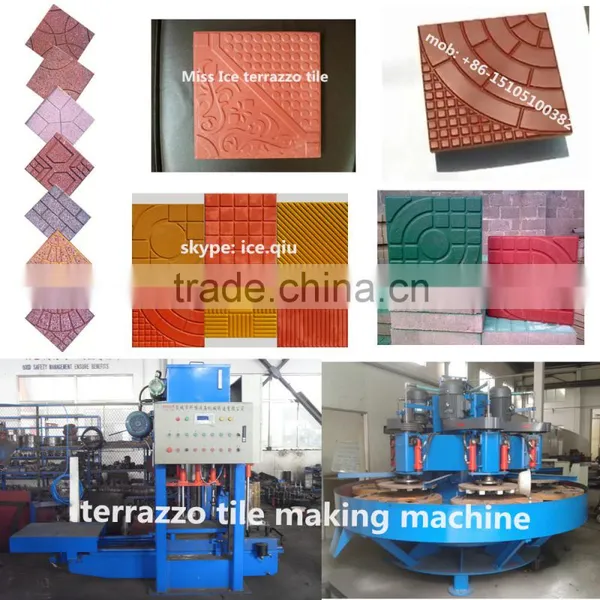

6. terrazzo tiles, floor tiles samples -- finished products
Functional products
Packaging & shipping
-- one 40' container to hold the production line
-- plastic bubble bag outside to protect machine
Our Services
Before-sale services:
(1) Tell customer how to build a brick plant, the complete plant including three parts, brick shaping machinery, drying and firing.(Confirm clay,power electricity,water,land area, fund)
(2) Guide customers to choose the best and economic plant, recover the investment within short time.
(3) site inspection
(4) We are responsible for the offer, flow chart, and detail specification of each machinery.
In-Sale services:
(1)Quality control must be inspected strictly
(2)In accordance with the agreements stipulated in the contract
After-sale services:
(1) We will send the technicians to guide with device installation, debugging and training operators until customers are fully satisfied.
(2) Guarantee for machinery, materials and equipment supplied under this quotation are valid for a period of 12 months after commissioning or 16 months after delivery whichever is earlier. Warranty shall cover manufacturing defect in material and workmanship but exclude:
a. Daily wear and tear 2.mishandling or improper operation3. Incoming power supply fluctuation
b. Consumable and spare parts.
(3) Regular visit customer, consult with the customer feedback, come true with the customer's two-way communication.
Company
FAQ
-- one year guarantee for whole machine except consumption
-- 24 hours tecnical support by email
-- calling or door to door service
-- ues-friendly english software, user manual and details video
for details information, pls feel free to contact with me of following information, if you have time, welcome your visit our workshop
