KB10-140-1120 Cold Roll Forming Tile Machine
US$ 5,000 - 10,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Tile Forming Machine
Tile Type:
Concrete
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
KB10-140-1120 Automatic Roll Roofing Steel Tile MachineryUS$ 5,000 - 10,000MOQ: 1 Set -
KB10-140-1120 Low Cost Steel Tile MachineryUS$ 5,000 - 10,000MOQ: 1 Set
-
KB10-140-1120 Waterproof Steel Tile MachineryUS$ 5,000 - 10,000MOQ: 1 Set
-
KB10-140-1120 Colored Steel Roof Tile Making MachineUS$ 5,000 - 10,000MOQ: 1 Set
-
KBJX ISO9001 Terrazzo Tiles Forming Machine KB-125E/600US$ 20,000 - 30,000MOQ: 1 Set
Condition
New
Type
Tile Forming Machine
Tile Type
Concrete
Use
Floor
Production Capacity
12-20m/min
Place of Origin
Jiangsu, China
Brand Name
KBJX
Model Number
KB10-140-1120
Power(W)
8.0kw
Voltage
220v
Dimension(L*W*H)
6.5*1.5*1.2m
Weight
3.5T
Certification
ISO
Warranty
time available
After-sales Service Provided
Engineers available to service machinery overseas
Specifications
KB10-140-1120 cold roll forming tile machineBy changing the corresponding moulds
can produce roof tiles & floor

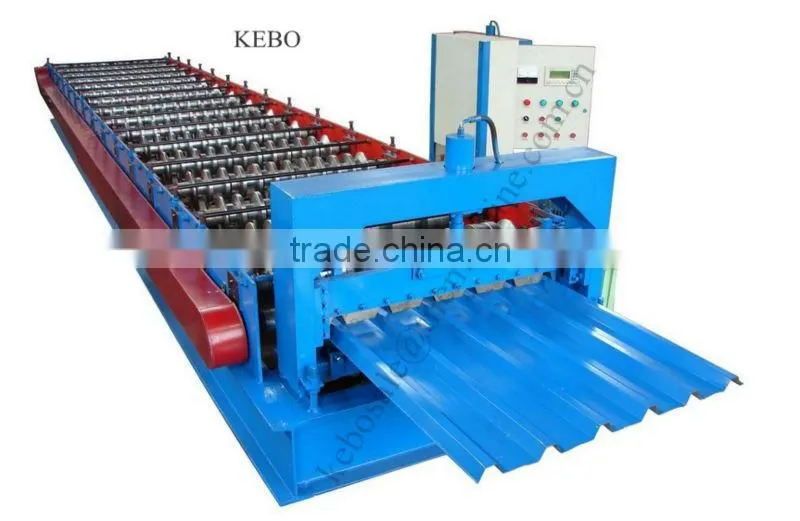

KB10-140-1120 cold roll forming tile machine
specification
No. |
Item |
|
1. |
Processing Material |
PPGI,GI |
2. |
Input Width(mm) |
1200 |
3. |
Formed Width(mm) |
1120 |
4. |
Processing Thickness(mm) |
0.3-0.7 |
5. |
Material of Rollers |
No.45 steel,with hard chrome coated |
6. |
Diameter of Shaft |
70mm |
7. |
Production Speed |
12-20m/min |
8. |
Roller Driven |
Decelerating Motor+Chain Transmission
|
9. |
Cutting Model |
Hydraulic Profile Cutting
|
10. |
Length Measurement |
Encoder |
11. |
Control Style |
PLC |
12. |
Operation Model |
Button + Touch Screen
|
13. |
Total Power |
8.0kw |
14. |
Voltage |
380V 50Hz or at buyer's request |
15. |
Test Material |
Q235 |
16 |
Dimension |
6.5 by 1.5 by1.2m |
17 |
Weight |
3.5T |

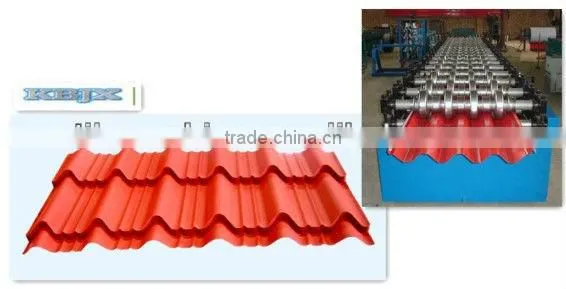

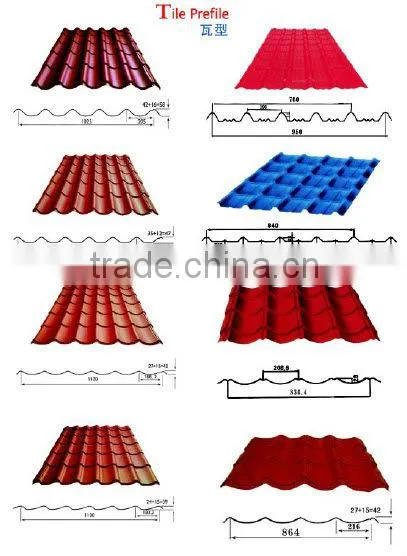

color tile sample:
