QT6-15B decorative concrete block
1> QT6-15B decorative concrete block capcity Table
Size(L x W x H) |
Pcs /Mould |
Pcs / Hr |
Pcs/day |
400x200x200mm |
6 |
1440 |
11520 |
400x240x200mm |
4 |
960 |
7680 |
2>Main parameters of QT6-15B decorative concrete block
Main specification and technical parameters | |
Overall size |
2900x2200x2650mm |
Shaping cycle |
15-18 seconds |
Pallet size |
940x830x25mm (bamboo) |
940x830x20mm (plastic) | |
Vibration frequency |
Max.5500 R/Min |
Electricity |
380V/220V/ (adjustable) |
Vibration force |
55KN |
Total weight |
8000 KGS |

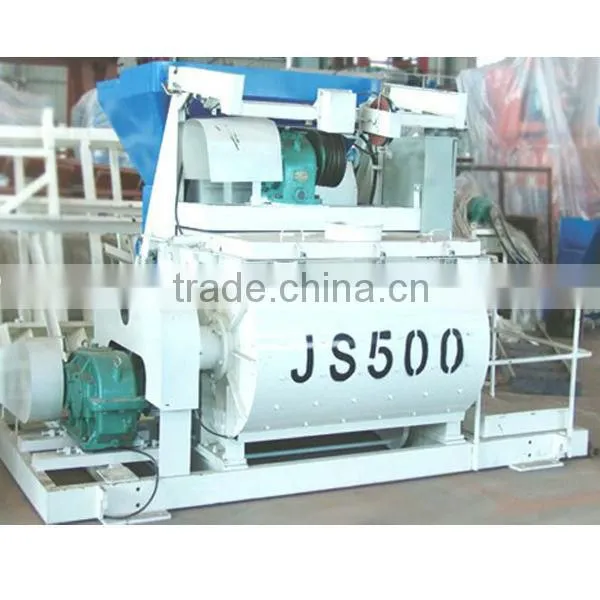

3>Main parameters of JS500 mixer
Model |
JS500 |
|
Charging Capacity (L) |
800 |
|
Discharging Capacity (L) |
500 |
|
Production Capacity (m3/h) |
≥25 |
|
Max Aggregate Diameter (mm) |
≤40/60 |
|
Cycle Time (s) |
72 |
|
Stirring Vane |
Rev Speed (r/min) |
31 |
Quantity |
2×7 |
|
Stirring Motor |
Model |
|
Power (KW) |
18.5 |
|
Lifting Motor |
Model |
|
Power (KW) |
5.5 |
|
Pump Motor |
Model |
|
Power (KW) |
0.75 |
|
Dimensions ( mm) |
Travel State |
3030×2520×2880 |
Operation State |
5025×3100×5680 |
|
Total weight (Kg) |
3500 |
|
4> QT6-15B decorative concrete block material proportion
Raw Materials |
Quantity per piece |
Water |
3% |
Cement |
9-12% |
River sand |
40% |
Crushed stone |
45% |
Other specify |
You can change the proportion depend on your needs. This block is heavy,but strong |
5> QT6-15B decorative concrete block guarantee
(1)We can supply one year guarantee period for our brick making machines, if the client have the question ,they could call our service department number any time , we will supply per day 24 hours service .
(2)Within one year, if the client meet the unsolvable questions ,we could fly to client place to help.

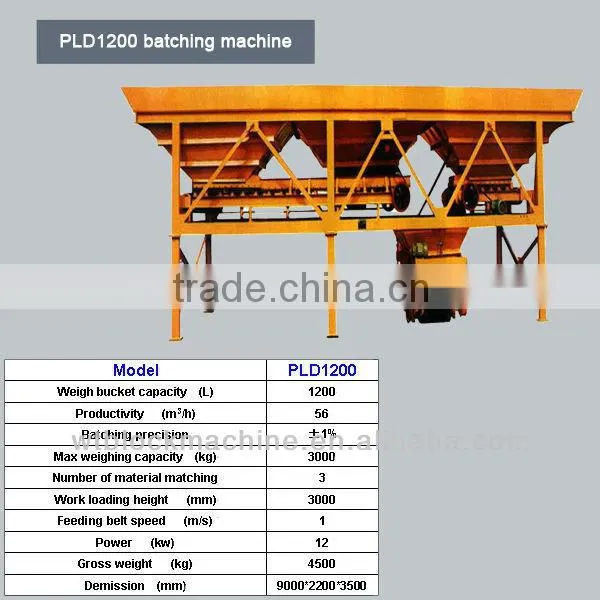

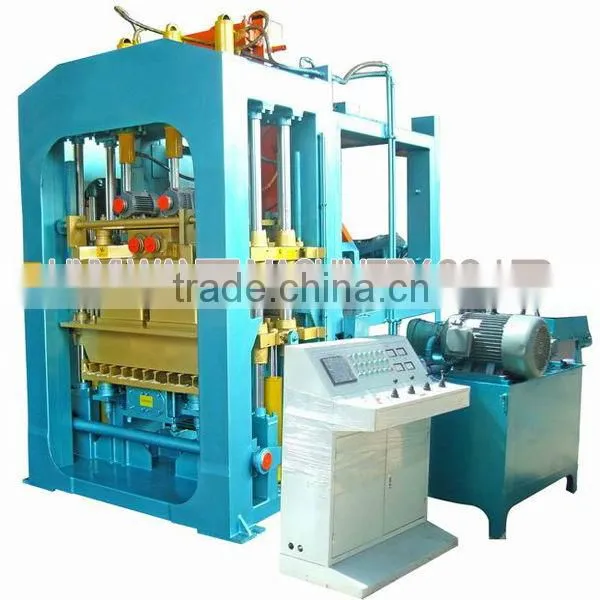

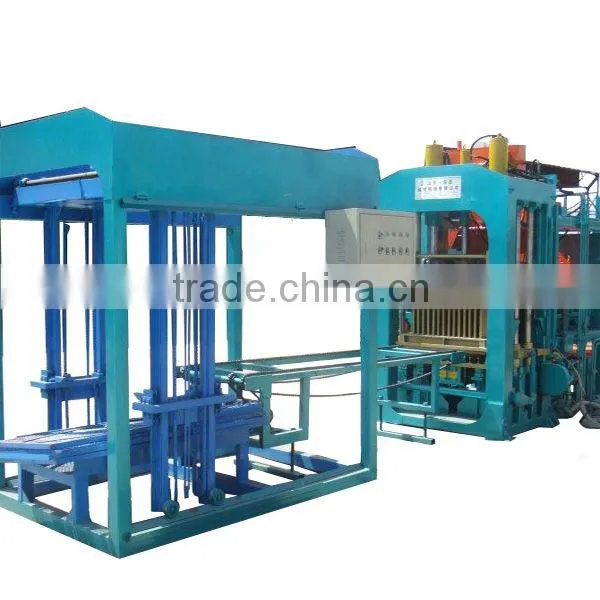

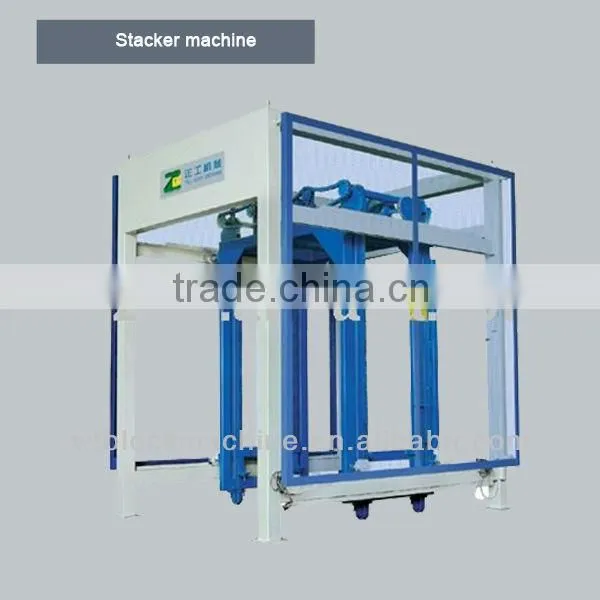

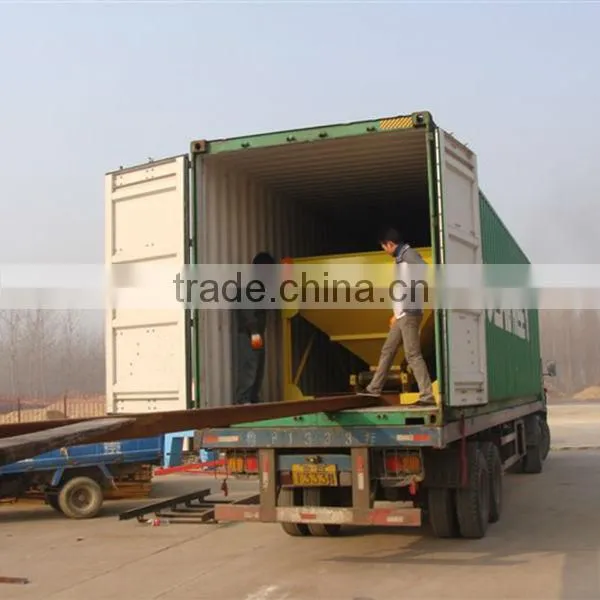

6> QT6-15B decorative concrete block photos
