LXC-410S Single Facer for Corrugated Cardboard Production Line

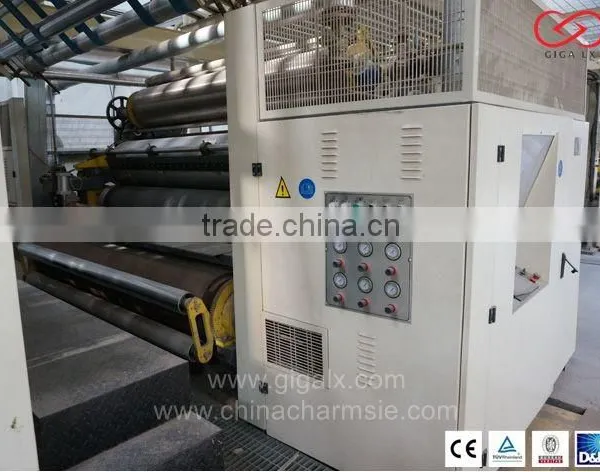

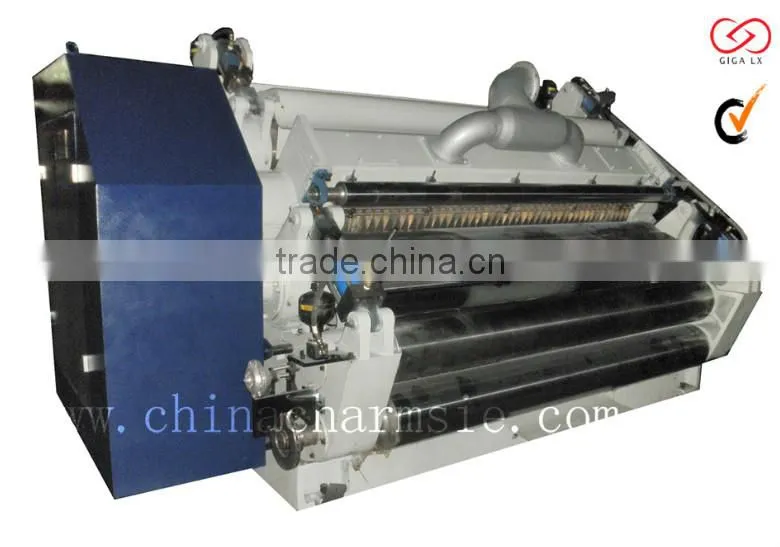

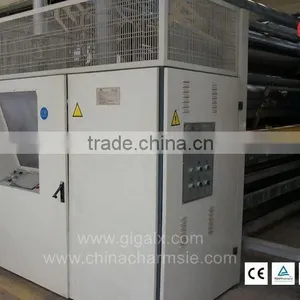

LXC 410S Single Facer Of Corrugator Cardboard Packing Machine
Single Facer Main Parameters :
1. Designed speed: 250 m/min
2. Available width: 1400 mm,1600 mm,1800 mm,2000 mm,2200mm,2500mm.
3. Flute type: A, C, B, E, F for option
4. Paper guide ways adopt wind adsorption, kept flute type stability at high speed.
5. From the fan through the corrugated cardboard vacuum suction forming negative pressure zone within the range of 180 degrees corrugating to complete rolling corrugated.
6. Below corrugated roller suction groove width not exceeding 2.5mm, can reduce single corrugated cardboard streak marks.
7. Drives using universal joint drive, isolate the vibration source, make transmission more stable, reliable operation maintenance stronger.
8. The gearbox adopt immersion oil lubricated, closed gear drives, reduce machine vibration.
9. Adopt automatic cycle provides the glue, pneumatic rubber and reset, have buffer effect.
10. Glue area electric adjustment, glue part independent operation department at shutdown to prevent depletion paste.When Host pause, the glue roller with rotation featurte to prevent glue dry. the gap between glue roller and absorption glue roller is precision measurement, touch screen display, electri adjustment, and automatic adjustment according to the machine speed.
11. Single facer glue department alone can drive pull-easy maintenance and cleaning.
12. Down corrugating using 48CrMo high quality alloy steel, heat treated, hardness HRC56-62 Surface by grinding and chrome-plated.
13. The up and down movement for upper and lower corrugated rollers, pressure roller and glue roller are controlled by oil pressure.
We provide loan to below business situation
1. The value of order over RMB 1 million (including 1 million).
2. Only for fully automatic corrugated box packing machine LX308N, LX-608CN LX707N or corrugator machine production line include LXC-180NN, LXC-220H1.8N models.
3. We accept O/A (Open account), it based on the credit level of buyer's bank credit report.
4. The details please consult with our sales department.
Packing & Shipping
Company Information
Vision: To be a cross-century enterprise, become a group corporation owns ten international
brand group with 200 design engineers.
Mission: Better machine, better carton, to provide efficient, complete plant, systematic solutions for factory construction.
Operation: Overall every control and clear.
Business philosophy:
Differentiation----no one else had
Specialization----better than anyone else
Primacy----design newer than anyone else
Value maximization----maximizing personal property along with company value
Certificate
GIGA LX Advertisement
GIGA LX Exhibitions
GIGA LX Special offer
We provide loan to below business situation
GIGA LX After-service System
/GIGALX Complete Factory Design
