GIGA LX608CN Flexo Carton Box Machine online Wiht Automatic Folder & Gluer Machine

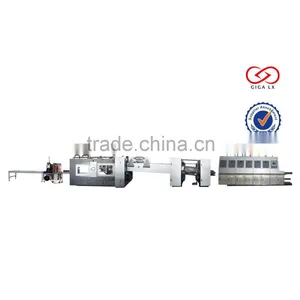

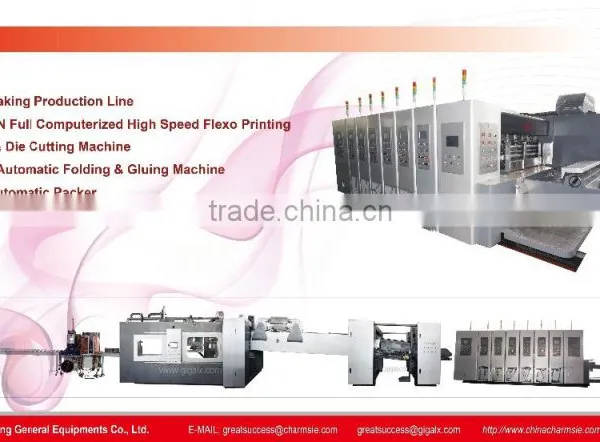

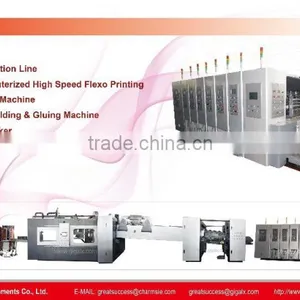

GIGA LX608CN Automatic Folder Gluer Machine Online With Flexo Carton Box Machinery

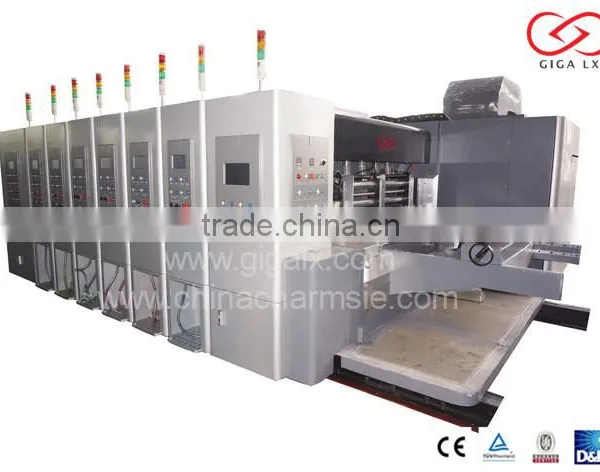

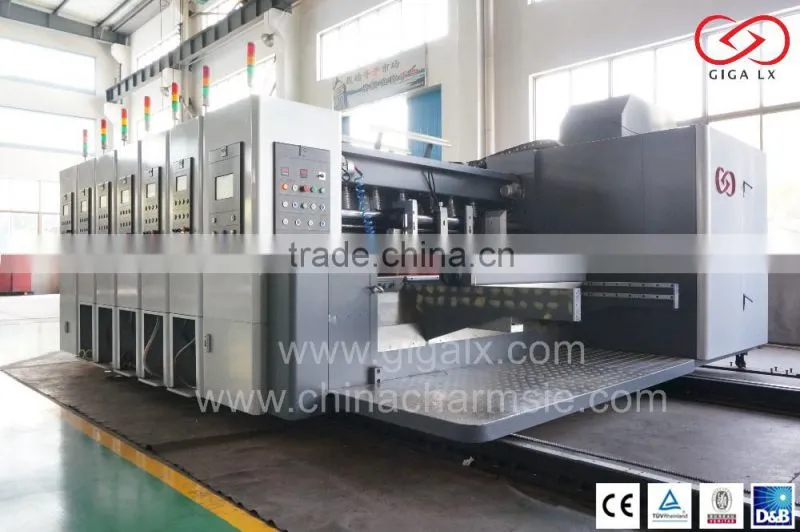

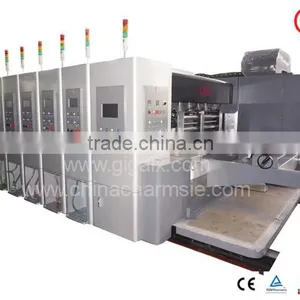

Flexo Printing Machine Main Function
- Vacuum suction conveyor for printer
- PLC central control,
- Servo Control leadge Feeder
- Slotter with intelligent photoelectric,which means it can guarantee the Slotter knife and Underthe knife to proposes an automatic alignment,and protect the blade.
- New NC Adjusting System for die cutter.
- Individualized trimming;
- Can memory 9999 orders(automatic memory reset function);
- Automatic stand by for new order ;
- High Speed Flexo Printer Slotter & Cutter;
- Remote after service. Which means when there's something the matter with the electric appliance software of the printer in your factory.we can remote check by network.
- Touch screen and electric control dual system : Phase of plate roller, axial position, pressure roller, anilox roller, slotting knife, are all motorized adjust;
- LX608CN Coder data tracking and recording system make adjustment simply by input data into interface real automatic position adjustment.
- Gears are made of high quality alloy steel (20CrMnTi) grinded under high temperature with hardness of HRC58_62, 6 grade precision the same grade with automobile gear box, features smooth run, low noise, long live, double gear oil pump multispray circulating lubrication. Up to 10 years damage resistance gears
- CAPT_LOCKS union link to reduce the connect interval, make installation and maintenance easy, and keep long lasting overprint precision
- Set up the order rapidly;
LX-608CN Feeder unit
1. Servo control Lead edge feeder--patent ;
2. Servo motor-quick react, precision positioning, system stability and durability. Electrical
camshaft supersedes mechanical style;
3. Synchronous belt un-interval links feeding shaft with servo motor shaft, to improve feeding
precision alignment; Half-wheel, quick replacing structure, to keep consistency of feeding position,
and to avoid uneven wearing on the surface of feeding wheel;
4. Pressure-free stretching feeding mechanism is the option;
We provide loan to below business situation
1. The value of order over RMB 1 million (including 1 million).
2. Only for flexo carton printing machine LX-308N, LX-608CN or corrugated machine production line include LXC-180NN, LXC-220H1.8N models.
3. We accept O/A (Open account), it based on the credit level of buyer's bank credit report.
4. The details please consult with our sales department.
5. Corrugated box making line machine price are very good, flexo printing machine price is very good .
LX-608CN Printing Unit
1. Printing phase adjustment by PLC, touch screen control and motorized digital 360 degree.
Printing cylinder keeps the function of zero return and can reset in dynamic and static condition.
2. Planetary gear phrasing mechanism.Dynamic and static balance correction ensure stable running
3. Loading and unloading of the printing plate motorized turn positive and reverse by pedal switch,
lx608cn adopts hanging mechanism
4. Pressurized automatic lifting device working in with the feeding systerm
5. Motorized digital display adjusts the transversal position of the printing cylinder within the range of
20mm..
6. Printing phase fixing mechanism with electromagnetic clutch.
LX-608CN Slotter Unit
1. Pre-scoring wheel: the sheet by pre-scored is no crush.
2. Manual adjustment on the gap between scoring wheels within the range of 0-12mm.
3. Upper scoring wheel coated by polyurethane avoid of crush on the sheet.
4. Transverse movement of scoring wheel, doctor wheel and slotting head controlled polyfunctionally
by PLC, touch screen and electromotive button.
5. The slotting knives are made of alloy tool steel by heat treatment and teeth finely ground. The width
is 7mm. Sharp teeth and endurable.
6. Bi-plate trimming knives with sharp teeth and endurable.
7. Slot phasing machanism is planetary gear structure.
8. Slotting phase adjustment by PLC, touch screen conrol and motorized digital 360 degree in dynamic
and static condition. Order can be preset.

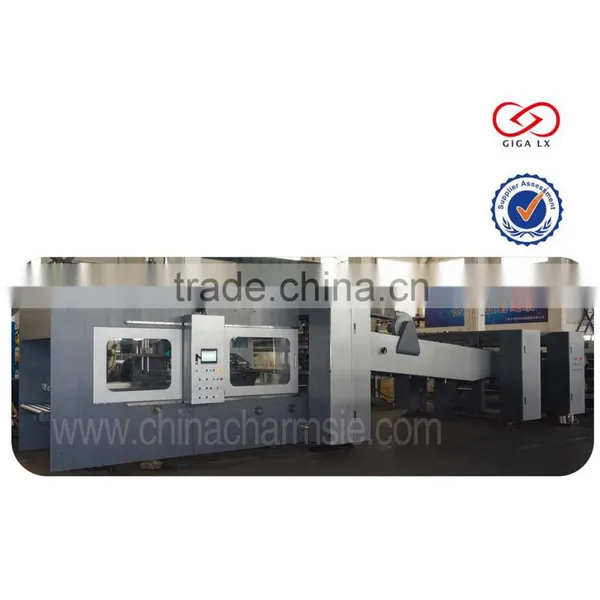

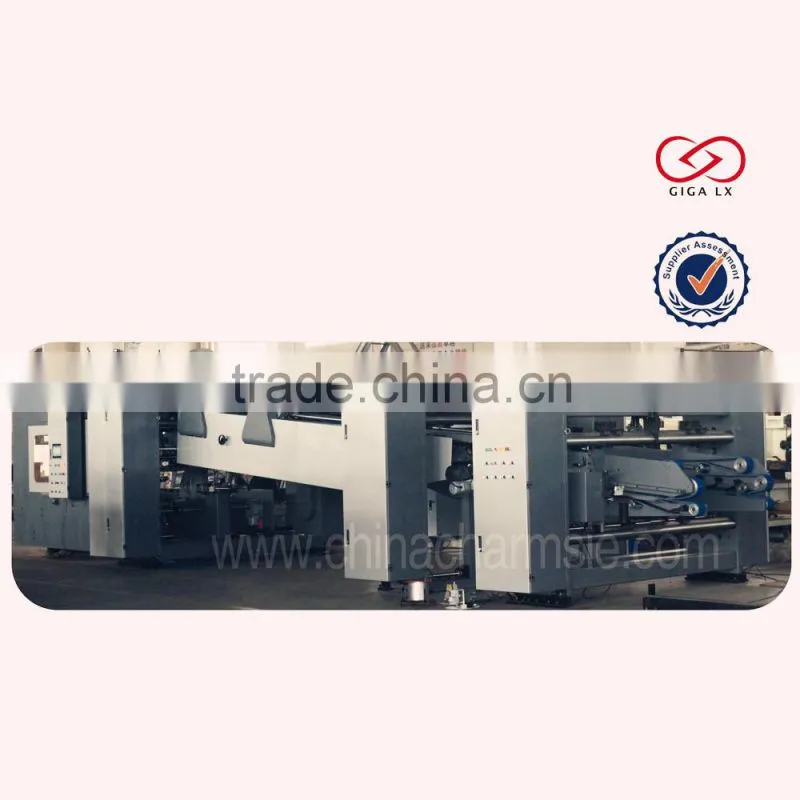

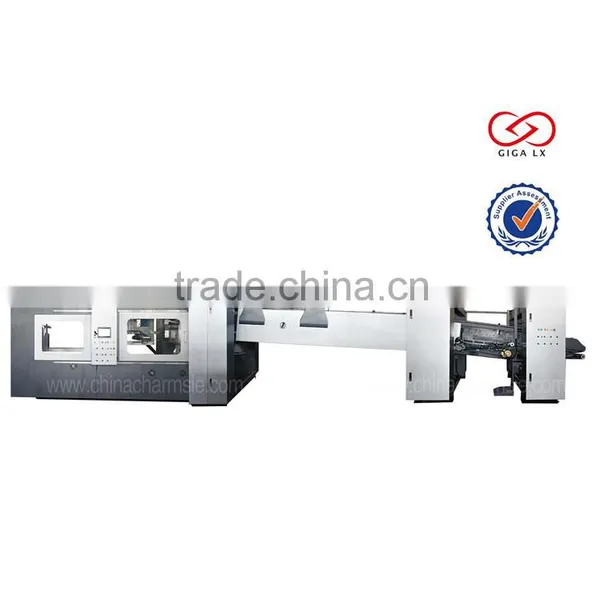

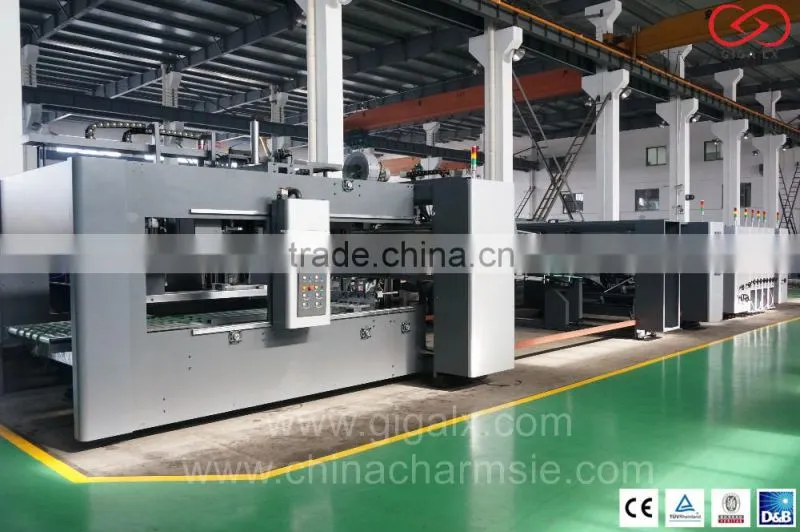

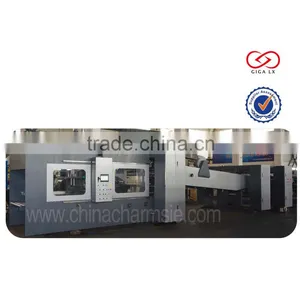

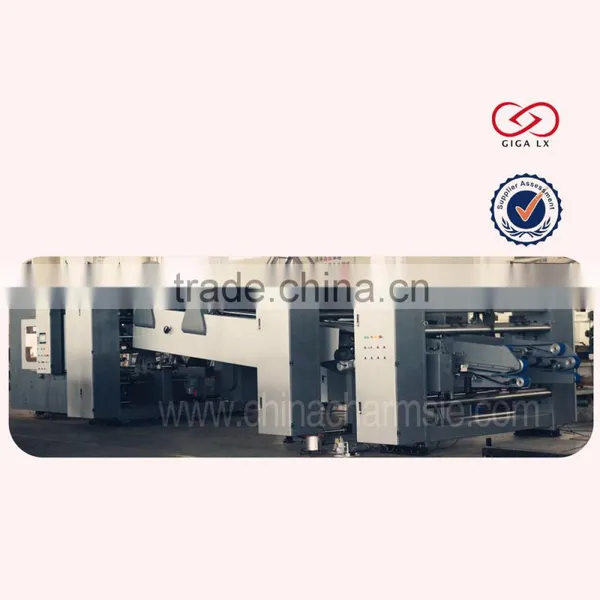

GIGA LX-FGA Automatic Folder Gluer Machine
- Touch screen input order, automatic adjust specifications.
- Lateral scorer to facilitate folding.
- Vacuum suction belt transmission to prevent slipping, and avoid scissors movement.
- Both sides equipped with guiding rollers.
- Imported USA VALCO glue spraying system(for option), automatic non-contact tracking, and accurate coating.
- Carton strapping machine moving parts are composed of imported ball screw and linear guides track;
- Stacker and output are controlled by servo motor, max.speed 200 sheet/min.
- Work independently or equipped with printer & slotter machine.
- Max.machine speed: 200sheet/min.
- Max.feeding size: 2500*1600mm
- Min.feeding size: 650*400mm
- Main motor power: 22kw
- Total power: 50.8kw
- Dimension: 12000*4810*2530mm
- Total weight: 20 ton
- Folder gluer machine and carton machinery are made in good quality.
- Main motor use servo motor;( totally 3 servo motors)
- More scientific design, stronger machine body;

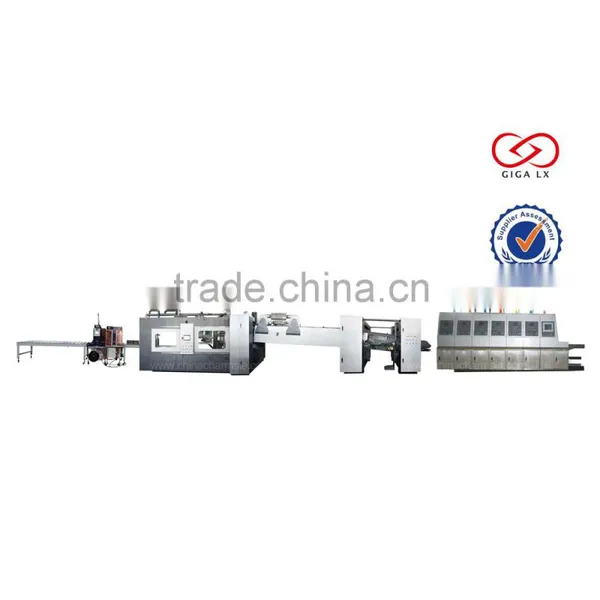

- The printer and folder gluer inline is highly integrated, one time setting the order, very quick and convenient;
- By 45 degree folding, two times scoring of the cardboard carton, full way tray folding; left and right synchronization, long belt shaping the carton, effectively avoid the problem of big/small size seam, and scissor-like shape.
- Automatic Stacking: photoelectric control, computerized, fully automatic, high efficiency.
Good functions
1.Quick order setting: By inputing only five parameters, you can finish the setting for both printer and folder gluer;
2.Folding and Stacking system: high-efficient and neat, by servo control
3.Multiple molding system(Ensure good carton):
1)45 degree inner angle flexible folding and pressing system, forming the score line by second time
2)Long belt folding system
3)whole carton shaping system
4.Automatic photoelectric control system: in case some cartons do not fall down or other problems, the main motor react quickly by alerting and stopping, to reduce the loss.
We provide loan to below business situation
1. The value of order over RMB 1 million (including 1 million).
2. Only for automatic folder gluer printing machine LX308N, LX-608CN LX707N or corrugated machine production line include LXC-180NN, LXC-220H1.8N models.
3. We accept O/A (Open account), it based on the credit level of buyer's bank credit report.
4. The details please consult with our sales department.
Packing & Shipping
Company Information
Vision:
To be a cross-century enterprise, become a group corporation owns ten international brand group
with 200 design engineers.
Mission:
Better machine, better carton, to provide efficient, complete plant, systematic solutions for factory construction.
Operation:
Overall every control and clear.
Business philosophy:
Differentiation----no one else had
Specialization----better than anyone else
Primacy----design newer than anyone else
Value maximization----maximizing personal property along with company value
CE ,SGS and Quality Control Certificate
GIGA LX Advertisement
GIGA LX Exhibitions
GIGA LX After-service System
GIGALX Complete Factory Design
2016*06*11569/*9/*9/*/*35568686141**/*/*5C5
