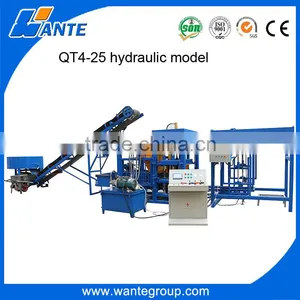

QT4-25 simple block machine production line main characteristic |
1.Simple automatic production line
2.Two types:motor type and hydraulic type
3.Can make both concrete block,pavers,curstone
QT4-25 simple block machine production line specification |
|
QT4-25 block machine |
||
Overall size |
3600(L)×1650(W)×2100(H)mm |
||
Shaping cycle |
20 seconds |
||
Pallet size |
850×450×25mm (bamboo) |
||
850×450×25mm (Plastic) | |||
Vibration frequency |
Max.4000 R/Min |
||
Upper vibrator |
4KW |
||
Nether vibrator |
4kw |
||
Electricity |
380V/220V/ (adjustable) |
||
Total weight |
3200 KGS |
||
|
|
Conveyor belt |
||
Belt width (M) |
6 |
||
Belt length (M)/KW |
6/2.2 |
||
Belt speed (M/S) |
2 |
||
|
|
JD500 mixer |
||
Overall size |
1500x1500x1400mm |
||
Shaping cycle |
5 mins |
||
Volume |
500L (50Kgs Cement) |
||
Electricity |
380V/220V/ (adjustable) |
||
Total weight |
600KGS |
||
|
Stacker machine |
||
Overall size |
2100(L)×1800(W)×2300(H)mm |
||
Power (KW) |
3KW |
||
Electricity |
380V/220V/ (adjustable) |
||
Stacker layer |
3 floor |
||
Speed |
0.5M/S |
||
Total weight |
2000KGS |
||
QT4-25 simple block machine production line capacity |
No. |
Block photo |
Block size |
Pcs/mould |
Pcs/hour |
Pcs/day |
1 |
|
400x200x200mm |
4 |
450-500 |
3600-4000 |
2 |
|
400x150x200mm |
6 |
600-700 |
4800-5600 |
3 |
|
240x115x53mm |
24 |
3000 |
24000 |
