IH Series Modal Test Impact Hammer

Name: IH Series Modal Test Impact Hammer
Brand: TENLEE
SKU: 112032695

IH Series Modal Test Impact Hammer thumbnail-1

IH Series Modal Test Impact Hammer photo-1

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Place of Origin:

Zhejiang, China

Brand Name:

TENLEE

Model Number:

IH series

Contact Supplier Request Quote Chat Now

Yueqing Tenlee Electric Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shanghai/ningbo

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Zhejiang, China

Brand Name TENLEE

Model Number IH series

Usage Other, force

Specifications

1.supply a variety of tips
2.structure health testing, resonance determination, modal analysis
3.best price, high quality

1.Introduction

IH series IEPE impact hammer features a rugged, force sensor that is integrated into the hammer’s striking surface.

The force sensor serves to provide a measurement of the amplitude and frequency content of the energy stimulus that is imparted to a test object. Accelerometers may be used in conjunction with the hammer to provide a measurement of the object’s structural response due to the hammer blow. A variety of tips supplied with each hammer permit the energy content of the force impulse to be tailored to suit the requirements of the item under test. Using multi-channel data acquisition and analysis software, the test engineer is able to ascertain a variety of mechanical properties leading to an understanding of an object’s structural behavioral characteristics. Items analyzed can include resonance detection, mode shapes, transfer characteristics, and structural health-such as crack and fatigue detection. IH series impact hammers be applied for Structure Health Testing, Resonance Determination, Modal Analysis etc.

2.Specification

Model	Sensitivity	Measuring Range	Head Weight	Hammer Mass	Head Diameter	Hammer Length	Output Socket	Tips
IH-01	25mV/N	200N	30Gram	-	Φ10mm	240mm	BNC	Stainless steel, Aluminum, Rubber, Nylon

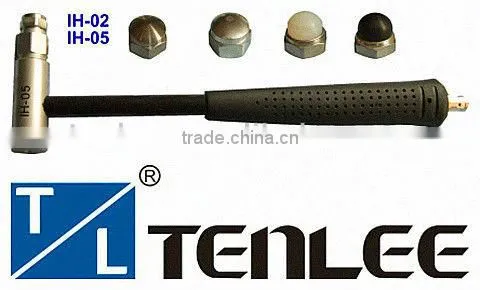

IH-02	2.5mV/N	2,000N	105Gram	-	Φ20mm	250mm	BNC
IH-05	1mV/N	5,000N	105Gram	100Gram	Φ20mm	250mm	BNC
IH-10	0.5mV/N	10,000N	1,000Gram	500Gram	Φ50mm	330mm	BNC	Hard Tip, Medium Tip ,Soft Tip

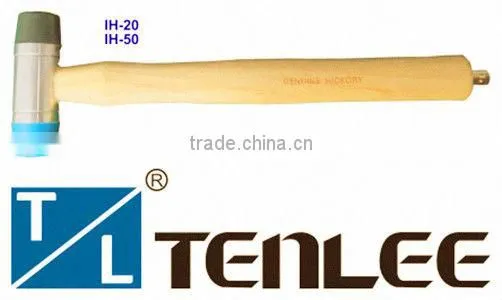

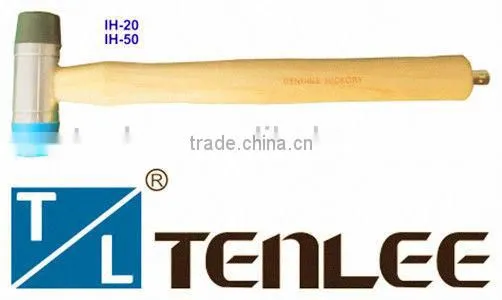

IH-50	0.1mV/N	50,000N	1,000Gram	500Gram	Φ50mm	330mm	BNC	Hard Tip, Medium Tip ,Soft Tip, Mass
