Home > Electrical & Electronics > Electric Motor > DC Motor > 4.5V DC Micro Motor for Paintball Loader

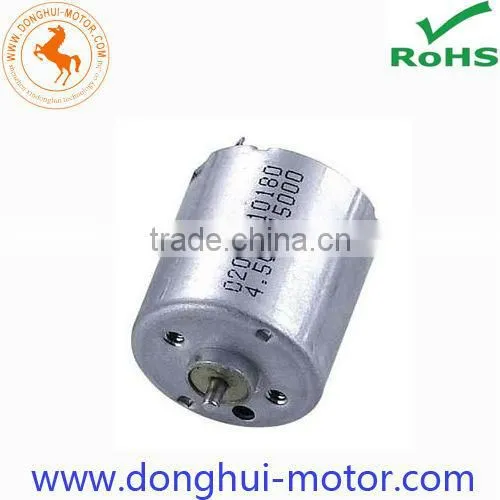

4.5V DC Micro Motor for Paintball Loader

Name: 4.5V DC Micro Motor for Paintball Loader
Brand: DONG HUI
SKU: 112071327

4.5V DC Micro Motor for Paintball Loader thumbnail-1

4.5V DC Micro Motor for Paintball Loader photo-1

Negotiable MOQ: 5000 Pieces (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Place of Origin:

Guangdong, China

Brand Name:

DONG HUI

Model Number:

RF-020TH-10210

Contact Supplier Request Quote Chat Now

Shenzhen Xin Dong Hui Motor Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shen zhen or Hong kong

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Guangdong, China

Brand Name DONG HUI

Model Number RF-020TH-10210

Usage Home Appliance, Other, Home Appliance, paintball loader

Certification ROHS, Other, ROHS, ISO:9001:2000

Type Micro Motor

Torque 16g.cm (Stall torque)

Construction Permanent Magnet

Commutation Brush

Speed(RPM) 12600rpm no load

Continuous Current(A) 0.05A no load

Voltage(V) 4.5

Efficiency IE 1

Specifications

4.5V DC Micro Motor for paintball loader
1.Precious metal brush
2.Permanent Magnet Stator
3.Metal endcap
4.Vibrator optional

Specifications

4.5V DC Micro Motor for paintball loader
1.Precious metal brush
2.Permanent Magnet Stator
3.Metal endcap
4.Vibrator optional

4.5V DC Micro Motor for paintball loader(RF-020TH-10210)

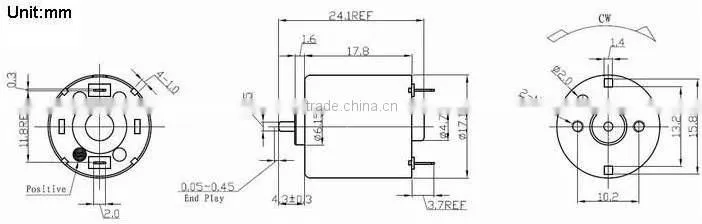

Outline:

Note:

1. SECC vibrator (1.2mm thickness per each, numbers can be custom made) for option.

2. Brass or ferrite cylinder counterweight for option

Technical Datas:

Rated Voltage: 4.5V
No Load Speed: 12600RPM

No load current: 0.05A

Stall current: 0.59A

Stall torque: 16g.cm

Remark:The above technical datas are only for reference,we (dong hui motor) can customerize them according to different requirements after evaluation.
