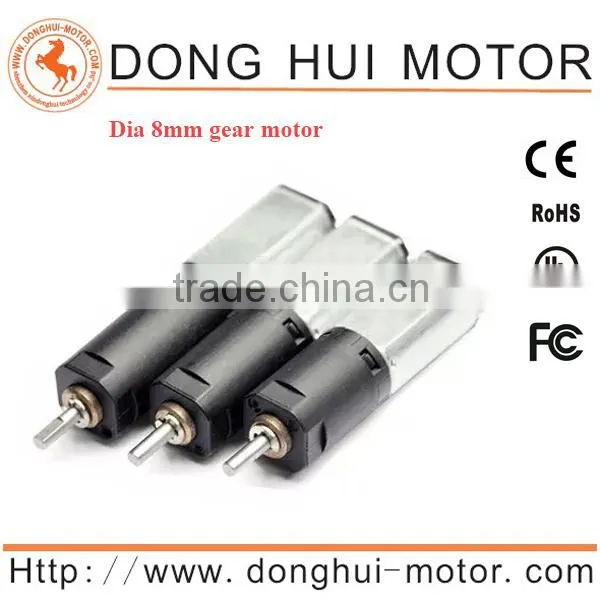

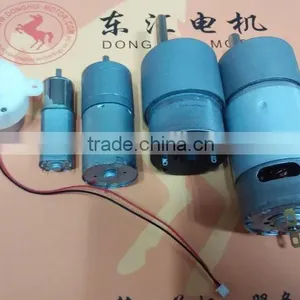

Help Center4.2v Small Electric dc Motor With Mini 8mm Plastic Gear Motor
Related Products
-
12mm Micro Gear Motor N20 Motor Gear 10 Rpm Gearboxes Worm GearUS$ 2.65 - 5MOQ: 10 Pieces -
N20 Electric Dc Motor For Steering Lock With EncoderUS$ 2.35 - 5MOQ: 100 Pieces
-
Low Rpm High Torque 12 Volt 30 Rpm dc Gear Motor GA12-N30US$ 2.89 - 5MOQ: 10 Pieces
-
12v Dc Planetary Gear Motor With 12mm Gear Box High Torque 25kg.cmUS$ 0.85 - 3.5MOQ: 1000 Pieces
-
6v Dc Micro Gear Motor With 16mm Gear Box for Robot From DH DotorUS$ 4.50 - 10.00MOQ: 10 Pieces
Quick Details
| Place of Origin: | Brand Name: | Model Number: | |||
| Gearing Arrangement: | Output Torque: | Rated Power: | |||
| Input Speed: | Output Speed: | Rated Voltage: | |||
| Gearbox & Motor Dia: | No Load Current: | Rated Load Current: | |||
| Overall Length: | Gear Box Length: | Max Rated Torque of Gear Box: | |||
| Max Instant Torque of Gear Box: | Gear Ratio: |
| Model | Typical Application Parameters | Max Rated Torque of Gear Box | Max Instant Torque of Gear Box | Gear Ratio | Gear Box Length | |||||||
| Rated | At No Load | At Rated Load | Overall Length | |||||||||
| Voltage | Speed | Current | Speed | Current | Torque | |||||||
| VDC | rpm | mA(MAX) | rpm | mA(MAX) | gf.cm | mN.m | mm | gf.cm | gf.cm | mm | ||
| ZWMD008008-4 | 4.2 | 4630 | 90 | 3361 | 155 | 4 | 0.4 | 26.1 | 250 | 500 | 3.6 | 11.6 |
| ZWMD008008-5 | 4.2 | 3125 | 90 | 2269 | 155 | 6 | 0.6 | 250 | 500 | 5.3 | ||
| ZWMD008008-13 | 4.2 | 1228 | 95 | 934 | 155 | 13 | 1.2 | 28.8 | 400 | 800 | 13.0 | 14.3 |
| ZWMD008008-19 | 4.2 | 829 | 95 | 630 | 155 | 19 | 1.8 | 400 | 800 | 19.2 | ||
| ZWMD008008-28 | 4.2 | 559 | 95 | 425 | 155 | 27 | 2.7 | 400 | 800 | 28.4 | ||
above specifications just for reference and customizable according to requirements
dc motor with gear box Supplier company in Shenzhen
Question 1:What's your main products?

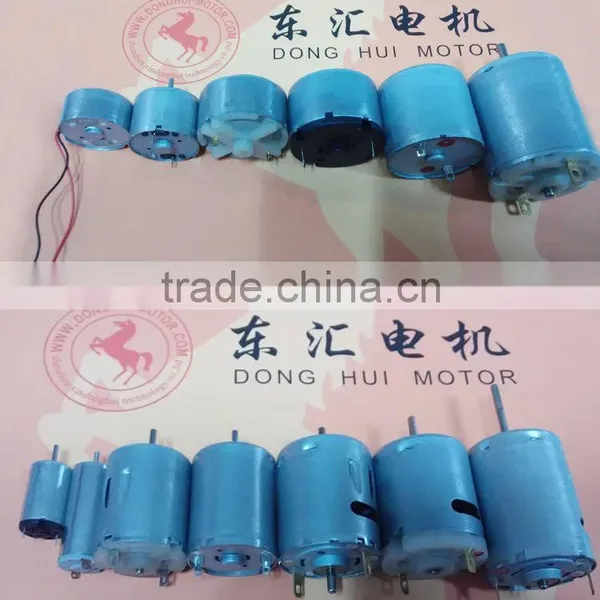

Answer: Dia10~52mm DC Micro Motor and Gear Motor,Auto dc motor, Electric motor, Gear Motor, DC Motor, Brush DC motor, Brushless DC motor,Spur Gear motor, Micro Motor, Vibration motor etc.
Question 2:What's the main usage of the micro dc gear motor?
Answer:Our motor widely used in Home Appliance,Office Equipment,Health-care appliance,Sanitation industry, High-class toy,Banking System,Electronic and electrical tools,automation industry, bank equipments,payment equipments,vending machines,power door lock,electric door lock.
Question 3:Do you accept customize?
Answer:Sure,as we have a strong design team,any problems will get our technical answer.
Question 4:What kind of data do i neet to provide if i want to order?
Answer:Please kindly tell us your voltage,speed,torque and overall dimension.
Question 5:What if i don't know the above data?
Answer:Please contact our saleman to handle,we'll answer your questions patiently.
We only sale the top-quality item, we can provide the reasonable price since we have fight with the supplier as a lowest cost as we can. Please feel free contact us if any needs and questions about the dc gear motor.
