Home > Electrical & Electronics > Electric Motor > DC Motor > GM13-030 5V Quiet High Torque Low Speed DC Gear Motor for Smart Door Lock Actuator

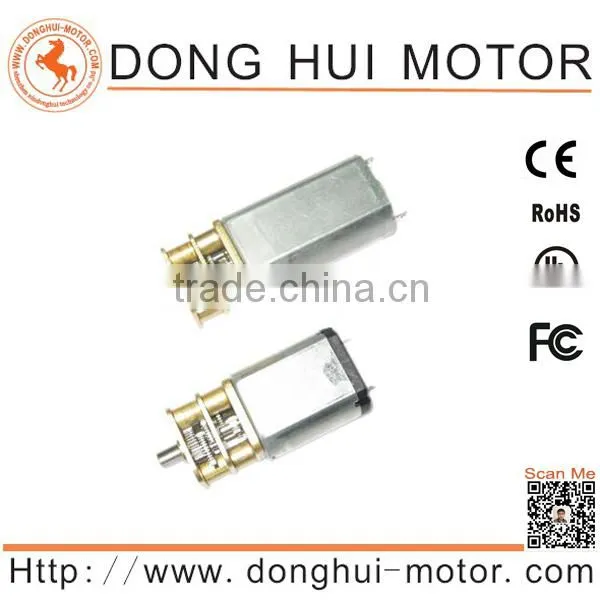

GM13-030 5V Quiet High Torque Low Speed DC Gear Motor for Smart Door Lock Actuator

Name: GM13-030 5V Quiet High Torque Low Speed DC Gear Motor for Smart Door Lock Actuator
Brand: DH Motor
SKU: 112071763

GM13-030 5V Quiet High Torque Low Speed DC Gear Motor for Smart Door Lock Actuator thumbnail-1

GM13-030 5V Quiet High Torque Low Speed DC Gear Motor for Smart Door Lock Actuator thumbnail-2

GM13-030 5V Quiet High Torque Low Speed DC Gear Motor for Smart Door Lock Actuator thumbnail-3

GM13-030 5V Quiet High Torque Low Speed DC Gear Motor for Smart Door Lock Actuator photo-1

GM13-030 5V Quiet High Torque Low Speed DC Gear Motor for Smart Door Lock Actuator photo-2

GM13-030 5V Quiet High Torque Low Speed DC Gear Motor for Smart Door Lock Actuator photo-3

US$ 2.26 - 2.85 MOQ: 1000 Pieces

Key Specifications

Get Latest Price

Place of Origin:

China

Brand Name:

DH Motor

Model Number:

GM13-030 5V Low Speed DC Gear Motor for Smart door lock actuator

Contact Supplier Request Quote Chat Now

Shenzhen Xin Dong Hui Motor Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

SHENZHEN

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin China

Brand Name DH Motor

Model Number GM13-030 5V Low Speed DC Gear Motor for Smart door lock actuator

Usage Boat, Car, Electric Bicycle

Certification CCC, CE, ROHS

Type Gear Motor

Torque High Torque

Construction Permanent Magnet

Commutation Brush

Protect Feature Drip-proof

Speed(RPM) Variable Speed

Continuous Current(A) Current

Output Power TBD

Voltage(V) 12V

Efficiency IE 1

GM13-030 5V Quiet High Torque Low Speed DC Gear Motor for Smart door lock actuator

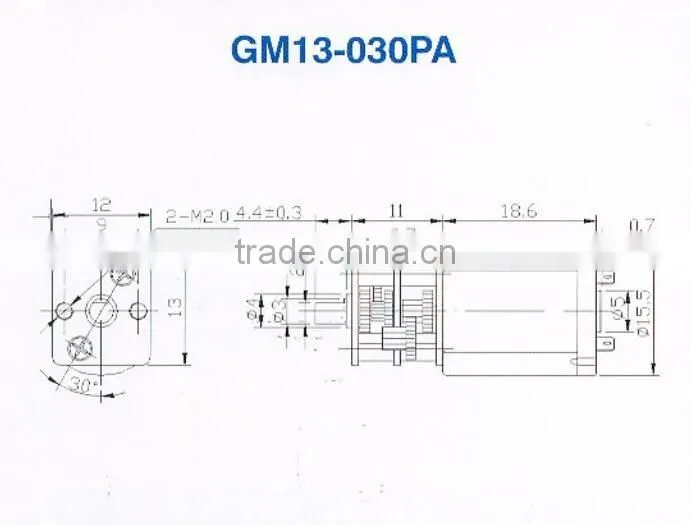

Gear Motor -SGM13F Series Model No:
SGM13F-050SHV
SGM13F-030PAV

Typical Applications:
Toys and model,Electric Door Lock
solar product,IP CAM,CCTV
Medical Instruments, Beauty care

Description :
Precious Metal-Brush Motors
Output: Approx 0.2W~1.5W
Flat Type
Diameter():15.5mm
Height:12.0mm
Length:26.9mm
Weight: 18g (approx)
Shaft Lenght:39.0mm

Adjust the performance at free(voltage,speed,torque,ECT.)

Descrpition:
- Quiet
- High Torque
- Low Speed
- Diameter: 15.5mm
- Ratio available: 35, 63, 150, 250, 360

FAQ

Question 1:What's your main products?

Answer: Dia10~52mm DC Micro Motor and Gear Motor,Auto dc motor, Electric motor, Gear Motor, DC Motor, Brush DC motor, Brushless DC motor,Spur Gear motor, Micro Motor, Vibration motor etc.

Question 2:What's the main usage of the micro dc gear motor?

Answer:Our motor widely used in Home Appliance,Office Equipment,Health-care appliance,Sanitation industry, High-class toy,Banking System,Electronic and electrical tools,automation industry, bank equipments,payment equipments,vending machines,power door lock,electric door lock.

Question 3:Do you accept customize?

Answer:Sure,as we have a strong design team,any problems will get our technical answer.

Question 4:What kind of data do i neet to provide if i want to order?

Answer:Please kindly tell us your voltage,speed,torque and overall dimension.

Question 5:What if i don't know the above data?

Answer:Please contact our saleman to handle,we'll answer your questions patiently.
