Help Center4~6.8Tons Heavy Duty Sideshifter for Forklift
Related Products
4Tons to 6.8Tons Heavy Duty sideshifters are disigh to improve the flexibility and moving efficiency when handling and stacking.Products Introduction:
WONTONNE Heavy Duty Sideshifter is designed to improve the flexibility and moving efficiency when handling and stacking. We typically supplied in 4000Kg to 6800Kg capacities to suit your operations, though others are available on request.
WONTONNE Heavy Duty Sideshifter are greatly appreciated in the markets based on the high quality and reliable performance.
Products Display:
1.Intergrate cylinder and side shifter frame into a componpent, saving room and widening the view.
2. Easy installed, directly connected to fork carriage.
3. Double-headed rod cylinder, keep the same thrust force and speed on both sides of cylinder.
4. The lower bearings used wear-resistant nylon-material to ensure smoothly move.
5. Highly efficiency, easy maintenance and operation.
Test
Every sideshifter from CNB must pass a series of strict test before selled.

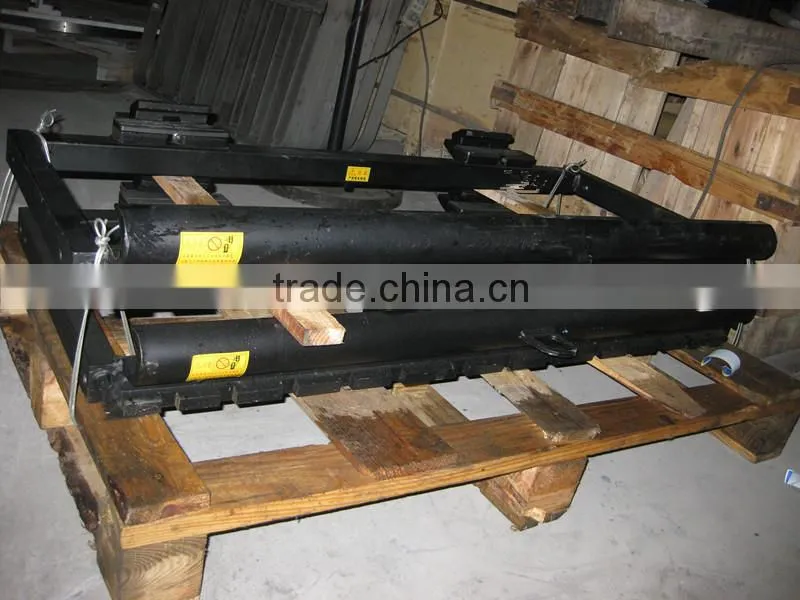

Packing
Every sideshifter from CNB must be packed very carefully before shipment.
Specification
| Capaticy@ Load Center(kg@mm) | New Catalog Order No. | Mounting Class | Minimum Truck Carriage Width(mm) | Carriage Width(mm) | Vertical Center of Gravity(mm) | Weight (kg) | Effective Thickness(mm) | Horizontal Center of Gravity(mm) |
| 4000@600 | SSS40D-001B-1000 | 3rd | 895 | 1000 | 392 | 140 | 66 | 33 |
| 4000@600 | SSS40D-001B-1100 | 3rd | 965 | 1100 | 392 | 150 | 66 | 33 |
| 4000@600 | SSS40D-001B-1150 | 3rd | 965 | 1150 | 392 | 155 | 66 | 33 |
| 4000@600 | SSS40D-001B-1200 | 3rd | 1016 | 1200 | 392 | 166 | 66 | 33 |
| 4000@600 | SSS40D-001B-1250 | 3rd | 1170 | 1250 | 392 | 200 | 66 | 33 |
| 4000@600 | SSS40D-001B-1330 | 3rd | 1210 | 1330 | 392 | 210 | 66 | 33 |
| 6800@600 | SSS40D-001C-1532 | 4th | 1220 | 1532 | 440 | 275 | 84 | 43 |
| 6800@600 | SSS70D-001C-2400 | 4th | 1220 | 2400 | 440 | 275 | 84 | 43 |
| 6800@600 | SSS70D-001C-1840 | 4th | 1525 | 1844 | 440 | 330 | 84 | 43 |
| 6800@600 | SSS70D-001C-1700 | 4th | 1525 | 1700 | 440 | 300 | 84 | 43 |
| 6800@600 | SSS70D-001C-1330 | 4th | 1220 | 1330 | 440 | 240 | 84 | 43 |
| 6800@600 | SSS70D-001C-1670 | 4th | 1372 | 1670 | 440 | 240 | 84 | 43 |
Please Note that these units are designed to be used with fixed capacity.Please contact us for further advice if you propose to use in unusual environment.
