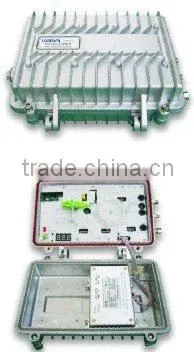

TON6800H LED Display Optical Node

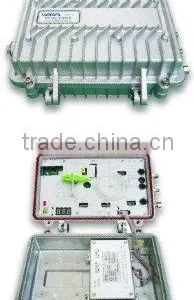

TON6800H LED Display Optical Node thumbnail-1
TON6800H LED Display Optical Node photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
Lootom
Model Number:
TON6800H
Contact Supplier Request Quote Chat Now
Lootom Telcovideo Network (Wuxi) Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Jiangsu, China
Brand Name Lootom
Model Number TON6800H

Specifications

LED display,2 output ports
112dBuV for single outlet
GaAs amplify module
FP,DFB,CWDM return lasers are option
60V/220V power

Features

  • Excellent photodiode detector
  • 1310nm or 1550nm two windows operation
  • 750MHz or 860MHz RF passband
  • High reliability
  • Dual high level output ports, low distortion
  • Switching power
  • FP or DFB return path optical transmitters available

Diagram

TON6800H LED display Optical Node

Specifications

Forward Path

Item

Unit

Specification

Remark

Optical

Optical Wavelength

nm

1310 or1550



Optical Input Power

dBm

+1.5 ~ -5



Optical Connector



FC/APC or SC/APC



Optical Link

Frequency Response

dB

±1.5



Output level

dBµV

>102

Optical power > -7 dBm

Return Loss at Output

dB

≥16dB(≤550MHz)

≥14dB(550-860MHz)



C/N

dB

≥51

59 channels PAL-D loaded from 47-550MHz, 104dBuV output,12dB tilted, digital refers to 550-860MHz loading with QAM carriers at –10dB levels relative to analog video carrier levels.

CSO

dB

≥60

CTB

dB

≥65



Reverse Path

Parameter

Unit

Specification

Remark

DFB

FP

RF Input

dBmV

15

15



Optical Output Power

mw

1~4

>1



Input Return Loss

dB

<-16

<-16



Flatness

dB

±1

±1

5~200MHz

C/N

dB

>50

>45



CSO

dBc

<-51

>-45



CTB

dBc

<-55

<-45



Optical Output Power

mW

1~4

>1



Flatness

dB

±1

±1

5~200 MHz

Optical Wavelenth

nm

1310

1310



Operation Temperature

°C

-20~+55

-20~+55
