Specifications
1. MCU prosessing adopter2. induces gas-natural gas/LPG
3. SMT desigh, high stability
4. auto detect sensor failure

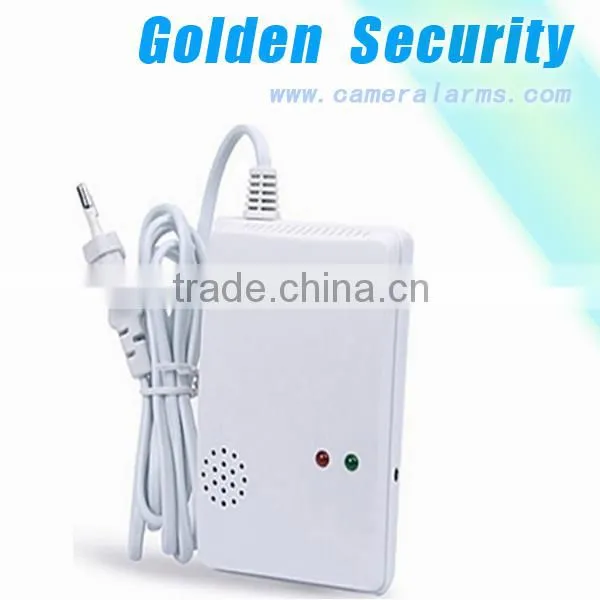

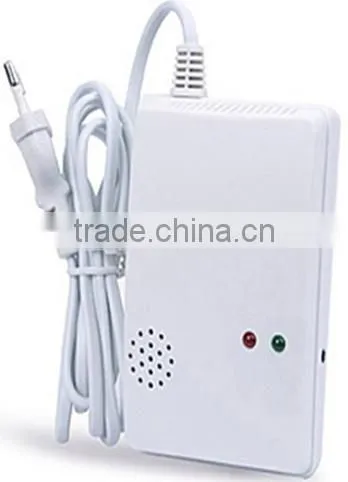

Wireless advanced semiconductor sensor and wall mounted gas leakage detector with high stability
Features:
1. high reliability sensor
2. auto reset after alarm
3. MCU prosessing adopter
4. induces gas-natural gas/LPG
5. SMT desigh, high stability
6. auto detect sensor failure
Specification:
1. Operating power: DC9-16V or AC 220V
2. Static current: 90mA <=30mA (lower power consumption type)
3. Alarm current: <=100mA <=40mA (lower power consumption type)
4. Warm-up time: about 120s
5. Alarm level: 10% LEL
6. Alarm indicator: red LED flashes
7. Sound level: >=85 dB/m
8. Operating temperature: -10 to 50°C
9. Environment Humidity: <=95%RH (no congelation)
10. Alarm output: relay output/ sound & flash alarm RF315MHz or 433 Mhz
11.Radio distance: 100m in open area
12. Size :110×70×40(mm)
Shenzhen Golden Security Technology Co.Ltd was established in 2005, is a
professionalmanufacturer in terms of researching& developing, manufacturing, and,
marketing securityproducts, and located in the coast of South China, Shenzhen.
"To manufacture quality products, to provide good service, to assist clients get profit" is our
coreculture. Our products line includes: GSM alarm system, PSTN auto dial alarm system,
3Gcamera alarm system, all kinds of alarm accessories including intelligent PIR
motionsensor, window sensor, smoke sensor, gas leakage sensor, shock sensor,
glassbreak sensor, standalone smoke detector, etc.
By combining consummate technical, skillful know-how, and satisfied after-sales service,
matchingquality products with reasonable price, we have explored extensive
saleschannels, acquiring good reputation and popularity.
All of our security products are CE, FCC, ROHS certificated.
Very important notes:
1. Please confirm the induced gas is heavier than air, or lighter than air. The gas is heavier than air:
LPG etc. The gas is lighter than air: natural gas, marsh gas and etc.
2. Choosing the suitable position to install the Detector according to the gas specific gravity.
Detecting the gas heavier than air: Installation height from floor: 0.3-1.0m,Semi-diameter to gas
source: <1.5m;Detecting the gas lighter than air: Installation height from ceiling: 0.3-1.0m, Semi-
diameter to gas source: <1.5m.
3. Fix the screw into the wall firmly, then hang the detector.
4. Avoid installing the detector close to the following sources of interference: direct air flow from
vents, fans, doors, windows, sources of steam, oil vapor, etc.
5. All wires installation must accord with the National and Local effective laws and criteria. The
wires must have the suitable size and colorful marks for avoiding connecting error. And unsuitable
connection of wires will result in the alarm error while gas leaking happened.
