Carbide Drill Bit Re-sharpener MR-G3

Carbide Drill Bit Re-sharpener MR-G3 thumbnail-1
Carbide Drill Bit Re-sharpener MR-G3 photo-1
US$ 882 - 1,145 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
China
Brand Name:
MEIRI CHINA MACHINE
Model Number:
MR-G3
Contact Supplier Request Quote Chat Now
Taizhou Meiri Machine Tool Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai/Ningbo
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin China
Brand Name MEIRI CHINA MACHINE
Model Number MR-G3
Type Twist Drill Bit
Material Other

Specifications

1.Carbide Drill Bit Re-sharpener
2.Grinding range:2-26(32)mm
3.Patent, CE, Taiwan grinding wheel

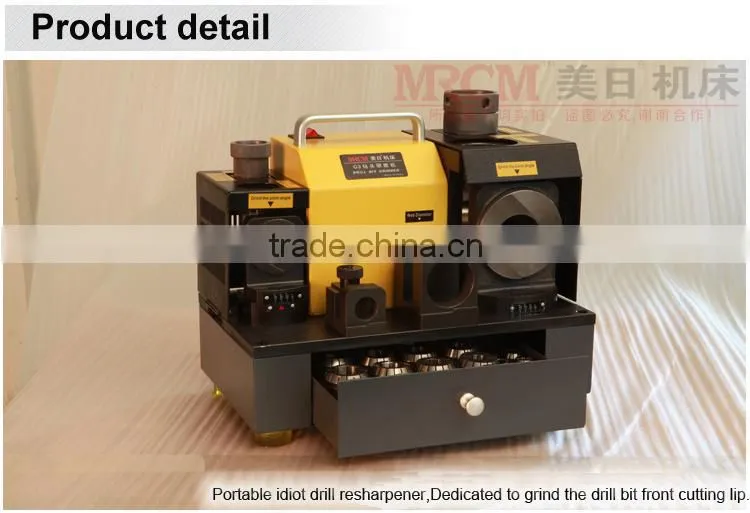

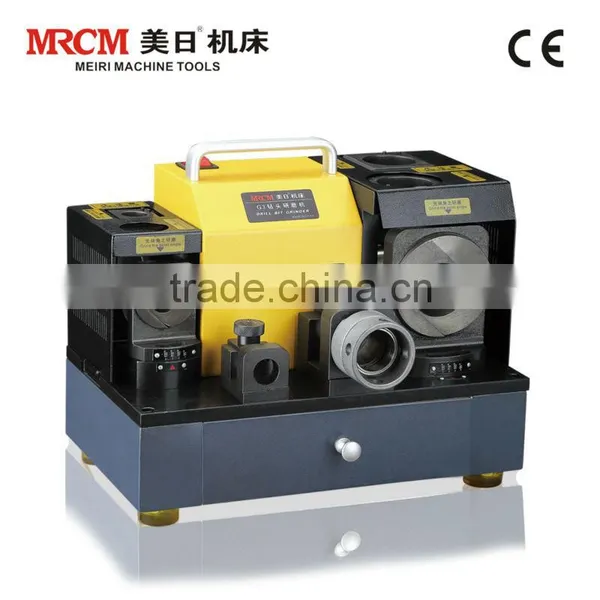

Carbide Drill Bit Re-sharpener MR-G3

G3 Complex drill bit grinder can grind the twist drill from 2 to 32.

It can grind the drill bit front cutting lip,lip relief angle,you can also can control the center spot at random instead of center drill,escape of chips easily ,drill with a light heart.



Model:

MR-G3

Grinding Range:

Φ2-Φ26(32)

Point Angle:

95°~135°/85°~140°

Power:

220V 50HZ 250W

Speed:

4000rpm

Dimension:

40*26*30

Weight:

36kg

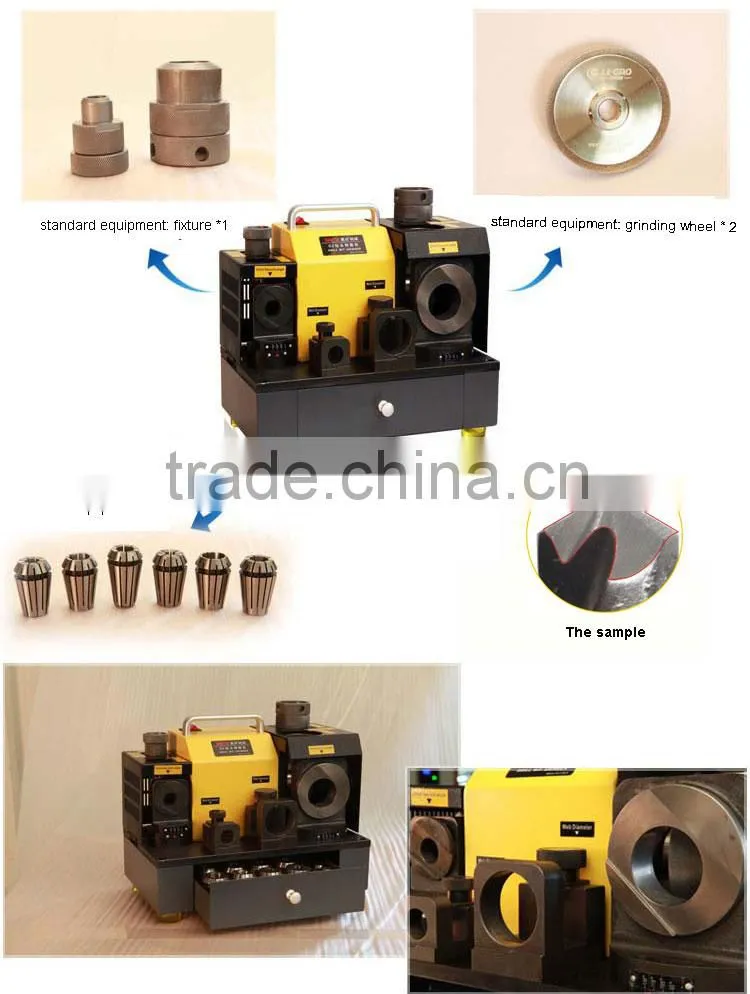

Standard Equipment:

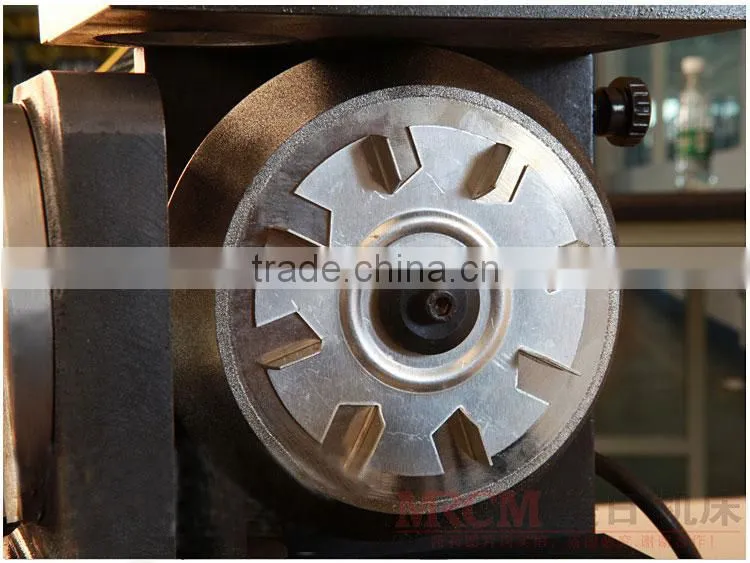

Two piece grinding wheels :CBN (for HSS)

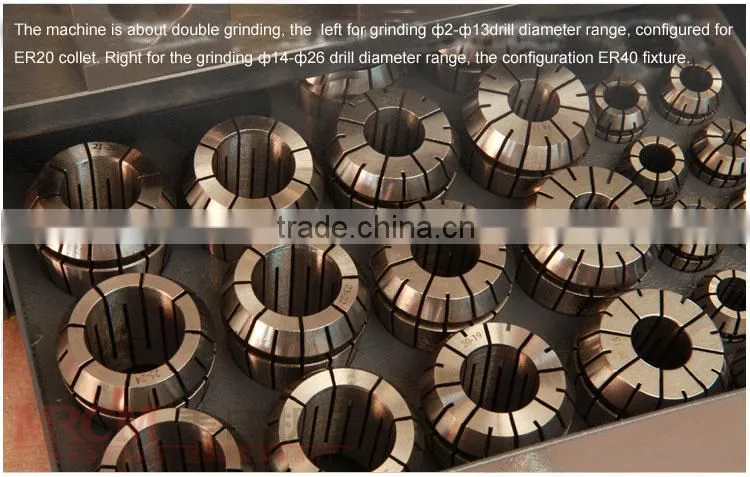

Twenty four collets:

ER20:Φ3,Φ4,Φ5,Φ6,Φ7,Φ8,Φ9,Φ10,Φ11,Φ12,Φ13,

ER40: Φ14,Φ15,Φ16,Φ17,Φ18,Φ19,Φ20,Φ21,Φ22,Φ23,Φ24,Φ25,Φ26

Two collet chucks:one is for(Φ2-Φ13) ,one is for (Φ13.1-Φ30)

Option Equipment:

grinding wheels :SD (for Carbide)

Ten collets:

ER20:Φ2.5,Φ3.5,Φ4.5,Φ5.5

ER40:Φ27,Φ28,Φ29,Φ30,Φ31,Φ32

collet chuck(Φ31~Φ32)

Carbide Drill Bit Re-sharpener MR-G3Carbide Drill Bit Re-sharpener MR-G3Carbide Drill Bit Re-sharpener MR-G3

Carbide Drill Bit Re-sharpener MR-G3
