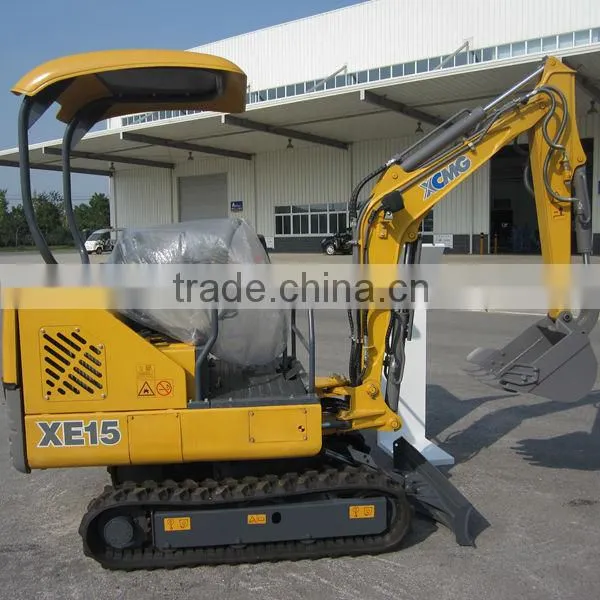

XCMG Compact Excavator XE15

Name: XCMG Compact Excavator XE15
Brand: XCMG
SKU: 112297077

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Jiangsu, China

Brand Name:

XCMG

Model Number:

XE15

Shandong Zhongkai Machinery & Trade Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Jiangsu, China

Brand Name XCMG

Model Number XE15

Condition New

Moving Type Crawler Excavator

Operating Weight 1640kg

Bucket capacity 0.044m3

Maximum Digging Height 3615mm

Maximum Digging Depth 2320mm

Machine Weight 1640kg

Max Digging Radius 1675mm

Rated Speed 4.4/2.4 km/h

After-sales Service Provided Engineers available to service machinery overseas

Specifications

XCMG Compact Excavator XE15
Standard bucket capacity 0.044m3
Max.dozer lifting height 220mm
Max.dozer cutting depth 240mm

XCMG Compact Excavator XE15

Model		Unit	XE15
Operating weight		kg	1640
Standard bucket capacity		m³	0.044
Engine	Engine Model	/	3TNV82A
	Direct injection	/	YES
	Four strokes	/	YES
	Water cooling	/	YES
	Turbo charged	/	NO
	Air to air intercooler	/	NO
	No. of cylinders	/	3
	Rated power/speed	kw/rpm	16.5/2200
	Max. torque/speed	N.m	86.5/1320
	Displacement	L	1.33
Function	Travel speed	km/h	4.4/2.4
	Swing speed	r/min	11
	Max. gradeability	/	30°
	Ground pressure	kPa	23.8
	Max.Bucket digging force	kN	13.9
	Max.arm crowd force	kN	8.8
Hydraulic System	Main pump	/
	Rate flow of main pump	L/min	2×19.8+14.1
	Max pressure of prime relief valve	MPa	24
	Max pressure of travel system	MPa	21
	Max pressure of swing system	MPa	18
	Max pressure of pilot system	MPa	3.3
Fuel Capacity	Fuel tank capacity	L	20
	Hydraulic tank capacity	L	29
	Engine lubrication	L	5.5
Dimension	Overall length	mm	3760
	Overall width	mm	1080
	Overall height	mm	2400
	Overall width of upper structure	mm	1080
	Track length	mm	1578
	Overall width of undercarriage	mm	1080
	Crawer width	mm	230
	Dozer black(width/height)	mm	1080×225
	Tumbler distance	mm	1217
	Crawer gauge	mm	850
	Clearance under counter weight	mm	472
	Ground clearance	mm	180
	Min.tail swing radius	mm	1190
Max Limit	Max. digging height	mm	3615
	Max. dumping height	mm	2480
	Max. digging depth	mm	2320
	Max. vertical wall digging depth	mm	1520
	Max. digging reach	mm	3915
	Min. swing radius	mm	1675
	Max.dozer lifting height	mm	220
	Max.dozer cutting depth	mm	240
	Angle of arm deflection	Degree	70/50
