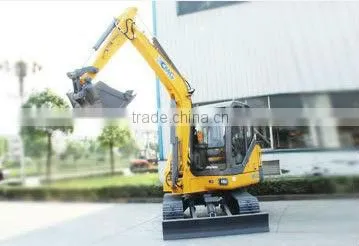

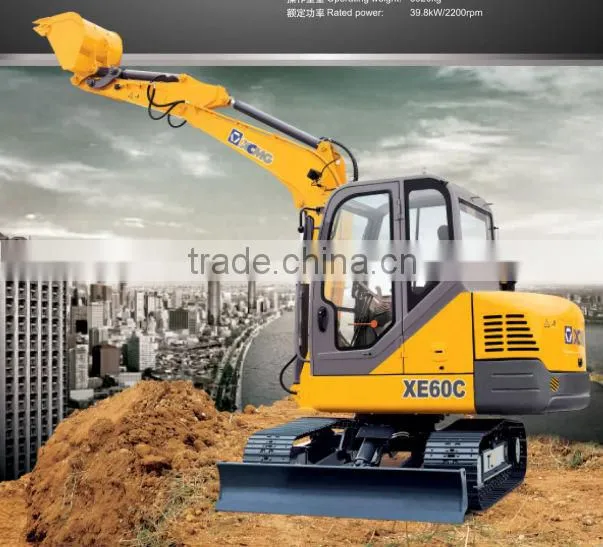

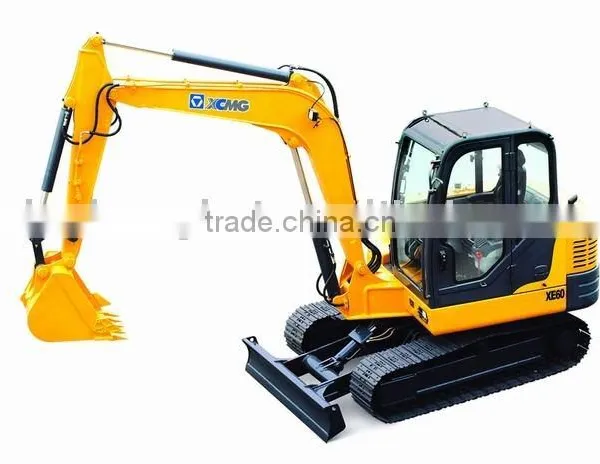

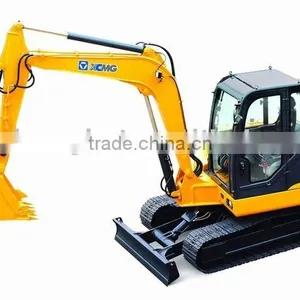

XCMG XE60C Hydraulic Excavators

Name: XCMG XE60C Hydraulic Excavators
Brand: XCMG, xcmg
SKU: 112297943

US$ 1 - 10 MOQ: 1 Set

Key Specifications

Place of Origin:

Jiangsu, China

Brand Name:

XCMG, xcmg

Model Number:

XE60C, XE60 excavator

Shandong Zhongkai Machinery & Trade Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao/shanghai

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Jiangsu, China

Brand Name XCMG, xcmg

Model Number XE60C, XE60 excavator

Condition New

Moving Type Crawler Excavator

Specifications

XCMG XE60C hydraulic excavators
1. reliable quality
2. excellent performance
3. advanced technology

XCMG E60C excavator

Model		unit	XE60CA
Operating weight		kg	5960
Standard bucket capacity		m³	0.09-0.23
engine	Engine Model	/	4TNV94L
	Direct injection	/	√
	Four strokes	/	√
	Water cooling	/	√
	Turbo charged	/	×
	Air to air intercooler	/	×
	No. of cylinders	/	4
	Rated power/speed	kw/rpm	39.8/2200
	Max. torque/speed	N.m	214/1100
	Displacement	L	3.054
main performance	Travel speed	km/h	4.2/2.2
	Swing speed	r/min	11
	Max. gradeability	/	30°
	Ground pressure	kPa	32.5
	Max.Bucket digging force	kN	48.3
	Max.arm crowd force	kN	32.5
hydraulic systerm	Main pump	/	rexroth
	Rate flow of main pump	L/min	138/143
	Max pressure of prime relief valve	MPa	24.5
	Max pressure of travel system	MPa	22
	Max pressure of swing system	MPa	21
	Max pressure of pilot system	MPa	3.5
oil tank	Fuel tank capacity	L	110
	Hydraulic tank capacity	L	85
	Engine lubrication	L	12
dimension	A Overall length	mm	5960
	B Overall width	mm	1920
	C Overall height	mm	2585
	D Overall width of upperstructure	mm	1780
	E Track length	mm	2540
	F Overall width of undercarriage	mm	1920
	G crawer width	mm	400
	HDozer black(width/height)	mm	1920×340
	I Tumbler distance	mm	1990
	J Crawer gauge	mm	1550
	K Clearance under counter weight	mm	710
	L Ground clearance	mm	385
	M Min.tail swing radius	mm	1660
work range	A Max. digging height	mm	5630
	B Max. dumping height	mm	3945
	C Max. digging depth	mm	3830
	E Max. vertical wall digging depth	mm	2680
	F Max. digging reach	mm	6130
	G Min. swing radius	mm	2460
	H Max.dozer lifting height	mm	390
	I Max.dozer cutting depth	mm	560
	Angle of arm deflection	Degree	/
