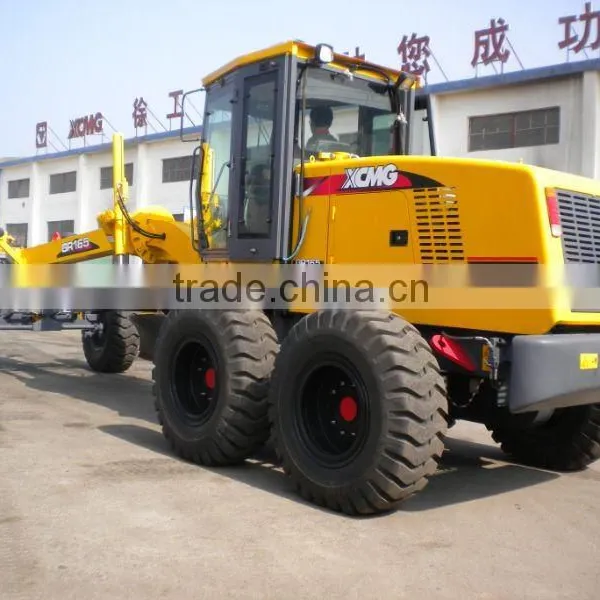

GR165 Motor Grader With 165HP Engine
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Jiangsu, China
Brand Name:
XCMG
Payment & Shipping
Payment Methods:
Port of Shipment:
qingdao port china
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
XCMG Machinery Mini Motor Grader GR100 for SaleNegotiableMOQ: 1 Unit -
XCMG Single Drum Road Roller XS122NegotiableMOQ: 1 Set
-
XD Series Tandem Vibratory RollerUS$ 1 - 10MOQ: 1 Set
-
YZ10JC/12JC/14JC Vibratory RollersUS$ 1 - 10MOQ: 1 Set
-
XS122 Full Hydraulic Single-drum Vibratory RollerUS$ 1 - 10MOQ: 1 Set
Condition
New
Place of Origin
Jiangsu, China
Brand Name
XCMG
Model Number
GR165
Basic specification | |
|---|---|
| Engine model | 6BTA5.9 or SC8D170G2B1 |
| Rated power/speed | 125kW/2300rpm |
| Dimension(LxWxH) | 8900×2625×3470mm |
| Operating weight(Standard) | 15000kg |
Performance specification | |
| Travelling speed ,forward | 5,8,11,19,23,38 km/h |
| Travelling speed ,reverse | 5,11,23 km/h |
| Tractive force(f=0.75) | 77KN |
| Max. gradeability | 20% |
| Tire inflation pressure | 260 kPa |
| Working hydraulic pressure | 16 MPa |
| Transmission pressure | 1.3~1.8MPa |
Operating specification | |
| Max. steering angle of front wheels | ±50° |
| Max. lean angle of front wheels | ±17° |
| Max. oscillation angle of front axle | ±15° |
| Max. oscillation angle of balance box | 15 |
| Frame articulation angle | ±27° |
| Min. turning radius using articulation | 7.3m |
| Biade | |
| Maximum lift above ground | 450mm |
| Maximum depth of cutting | 500mm |
| Maximum blade position angle | 90° |
| Blade cutting angle | 28°—70° |
| Circle reversing rotation | 360° |
| Moldboard width X height | 3965×610mm |
