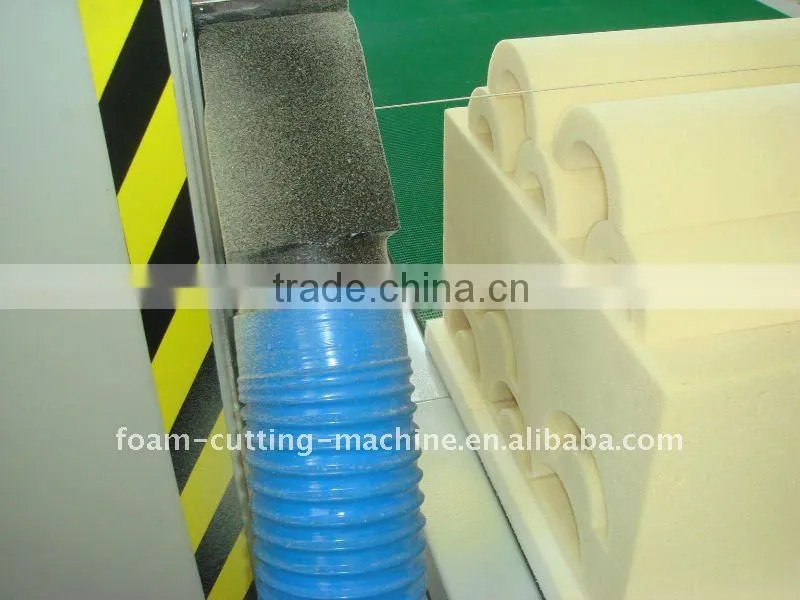

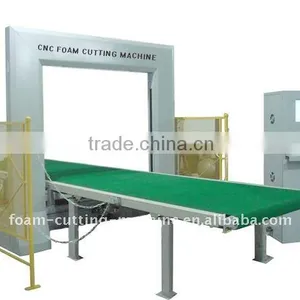

Fast wire contour foam cutterCNC-FM Series fast wire contour foam cutter originated by our company is the national patent products,is abrasive steel wire with a high speed,grinds the material into power and melts powder with producing residual heat under the high-speed operation,the computer controlling card controls the sliding board and the conveyer belt to run ,the cutting process is according to the scheduled track that the computer draws.
Features:
There are lots of advantages of programmed-control CNC-FM cutting machine initiated by our company:
1. Accurate intensity and repeated production without reliance on the operator's techniques;
2. The losses arising from operator's tiredness and his fault are totally eliminated;
3. Efficient production;
4. The expenses are greatly reduced because no need for making ,repairing or storing models;
5. Supports automatic nesting, presentation materials, the maximum level of savings graphics processing time and reducing cost of raw materials;
6. Design revision and making model can be immediately completed;
7. A high degree of operational safety devices guarantee have no incident
8.Cutting wire is steelwire,so it can avoid the potential risk of the fire caused by the size of stability and the hotcutting wire which can produce heat.
9. Software is easy to learn, user-friendly, the operatives have no particular skill requirements;
Application

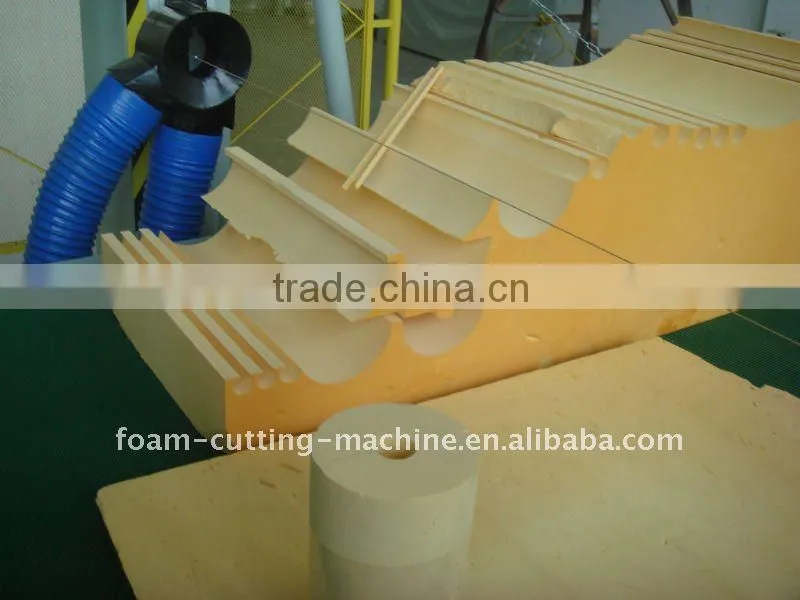

CNC fast wire contour foam cutter is specifically developed for special heat insulation materials used in the construction industry, and it can be used in slicing and modeling processing for various types of high density EVA foam PVA/EPE/ EPS /rock wool/phenolic materials and so on .It is the most ideal equipment in building, indoor decoration, advertising, toys model industry, aerospace industry model, furniture manufacturing and packaging areas. The control system is self-development, worry-free service, To make your most wanted tailor-made production equipment, is the goal we are after.
ParameterModel |
CNC-FM12H |
CNC-FM20H |
|
Size max (mm) |
L3000×W1200×H600 |
L3000×W2200×H1000 |
|
|
Cutting wire diameter (mm) |
1.0~1.8 |
1.0~1.8 |
|
PowerKW |
6 |
8 |
|
|
CNC
|
Industria control computer |
Industria control computer |
|
Software |
Standards configuration |
Standard configuration |
|
|
Cutting speed (m/min)
|
0~6 |
0~6 |
|
Cutting accuracy (mm) |
±0.5 |
±0.5 |
|
Dimensions |
Length (mm) |
6000 |
6000 |
Wide (mm) |
2300 |
3200 |
|
Hight (mm) |
1800 |
2500 |
|
Cutting mode |
2D |
2D |
|
Operating system |
Window98 or above |
Window98 or above |
|
Weight(ton) |
1.2 |
1.4 |
|
Power machine |
380V,50HZ |
380V,50HZ |
|
Power control (V) |
220 |
220 |
|
Voltage controller(V) |
5,12 |
5,12 |
|
Stepmotor voltage(V) |
110/220 |
110/220 |
|
