Help CenterAutomatic Cap and Stopper Combination Machine
Related Products
-
Cap and Stopper Combining On-line MachineUS$ 100 - 1,000,000MOQ: 1 Set -
Cap Wearing MachineUS$ 100 - 1,000,000MOQ: 1 Set
-
Automatic Blood Plasma Centrifuge SeparatorUS$ 10,000 - 100,000MOQ: 1 Set
-
CE/ISO Automatic Decapping Centrifuge (Blood Collection Tube) Blood Serum PlasmaNegotiableMOQ: 1 Set
-
CE/ISO Automatic Decap Centrifuge (Blood Collection Tube) Blood PlasmaNegotiableMOQ: 1 Set

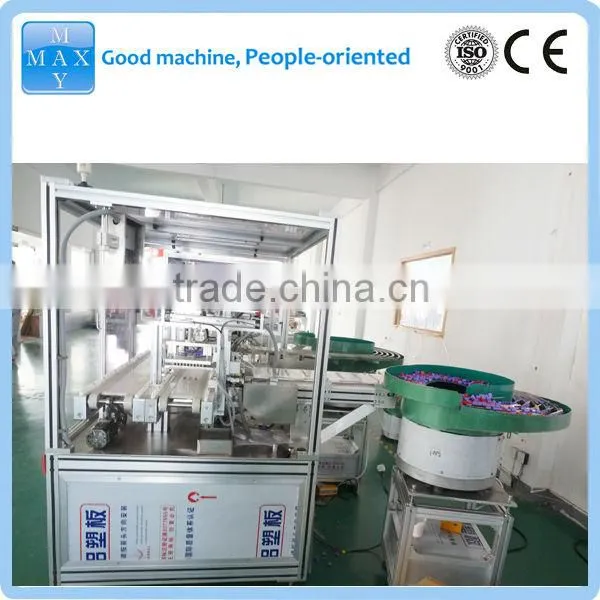

Automatic Cap and Stopper Combination Machine used for filling the cap and the stopper into the vacutainer and finish the
combination and filling of caps and the stoppers
Our Advantages
1. Improve the traditional cap wearing way, realize the composing on line, high efficiency
2.The cap and rubber stopper can be combined online at the same time, eliminate the cap and the stopper combining processes, it makes the production process more simple and efficient .
3. Simple and effective conveying and easy maintenance. Use vibration plate for feeding, vibration transfer belt and straight feeding.
4. Simple operation, high qualified rate.Steady separation device, accurate positioning device, efficient cap (plug) taking device, fast moving device, so as to realize stable and efficient cap (plug) filling process.
Main Technical Parameters and Configuration
| Capacity | 12000-18000 pcs/h |
| adding | 50 pcs/ time, 50 * 2 |
| tube type | Φ 13 tube (13 * 75 , 13* 100) or Φ 16 tube;(the equipment for Φ 13 and Φ16 tube are not universal) |
| gas consumption | ≤0.4 m3 / min, air pressure: 0.5Mpa≤P≤0.8Mpa |
| electric power | 3.2 KW/AC380V / 50 hz; |
| Overall size | 1200 mm * 1000 mm * 1800 mm;(not including vibration plates) |
| Weight | 650KG |
Service for the production line
Pre-sale service
Sale tracking service
We will assign our experienced project manager to do the job as below:
• Sign contract
• Conform drawing
• Equipment fabricating
• Initial assembly commissioning
• Final assembly commissioning
• Ex factory inspection
• Delivery
• Final commissioning
• Inspection and acceptance
After-sale service
Our products include modular type and integral type. According to our latest design, the production line is composed of tube labeling, tube filling, gel filling, dosing, cap&stapper combining and wearing, tube pre-vacuum&loading, shrinking packing stations.
Thanks to our highly automatical advanced intelligent control system, all the fabricating information can be displayed and controlled in the touch screen, to ensure safely and effectively fabrication.
Packing |
Export standard package |
MOQ |
1 set |
FOB price |
Please contact for new price |
Delivery time |
60days |
FOB port |
Shanghai |
Payment terms |
T/T,L/C at sight |
