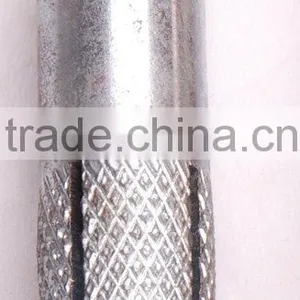

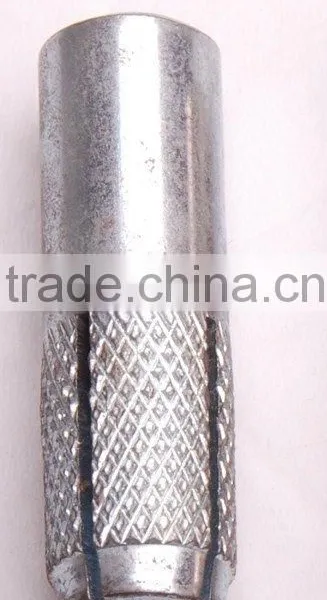

Drop in Anchor With Knurling
Negotiable
MOQ: 1 Ton (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
Yihui
Model Number:
DRI-20-60 DRM-06-20
Payment & Shipping
Payment Methods:
Port of Shipment:
ningbo or shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Drop in Anchor With Knurling Anchor BoltsUS$ 0.1 - 0.5MOQ: 10000 Pieces -
2PCS Heavy Duty Expansion/Shield/Shell Anchor ScrewsUS$ 0.1 - 0.5MOQ: 10000 Pieces
-
Steel Hollow Wall AnchorsUS$ 0.1 - 0.5MOQ: 30000 Pieces
-
Latest Zinc Alloy Hammer Drive AnchorUS$ 0.1 - 0.5MOQ: 100000 Pieces
-
Hammer Drive Fixing Anchor(Zinc Alloy)US$ 0.1 - 0.5MOQ: 100000 Pieces
Place of Origin
Zhejiang, China
Brand Name
Yihui
Model Number
DRI-20-60 DRM-06-20
Type
Drop-in Anchor
Material
Steel
Diameter
M6 M8 M10 M12 M16 M20
Length
M6:25 M8:30 M10:40 M12:50 M16:65 M20:80
Specifications
Drop in anchormaterial:concrete,hard natural stone
Size:M6-M20
A short anchor,thus shallow hole
high holding power
Drop in anchor
Other names:
1.flush anchor
2.Inside expansion anchor
Application:
1.Base material of concrete,hard natural stone.
2.For fastening mediun loads,for example suspended ceiling pipes rails,channels,panels,brackets etc.
Features:
1. A short anchor,thus a shallow hole,high holding power.
2.Set flush with surface or deeper.
3. Fire resistance
Our main products are sleeve anchor( sleeve anchor with flange nut / sleeve anchor with hex bolt/ sleeve anchor with hook bolt /sleeve anchor with eye bolt...), metal frame anchor,drop-in anchor, wedge anchor,
hollow wall anchor , ceiling anchor, speed anchor, hammer drive anchor, and so on.
If you are interested in ,please contact us.
| Thread | Anchor | Thread | Anchor |
| size | O.Dia.(B) | Depth(D) | Length© |
| 1/4-20 | 3/8" | 1/2" | 1" |
| 3/8-16 | 1/2" | 5/8" | 1-9/16" |
| 1/2-13 | 5/8" | 3/4" | 2" |
| 5/8-11 | 7/8" | 7/8" | 2-1/2" |
| 3/4-10 | 1" | 1-1/4" | 3-1/8" |
| M6 | 8 | 10 | 25 |
| M8 | 10 | 14 | 30 |
| M10 | 12 | 15 | 40 |
| M12 | 16 | 20 | 50 |
| M16 | 20 | 25 | 65 |
| M20 | 25 | 35 | 80 |
