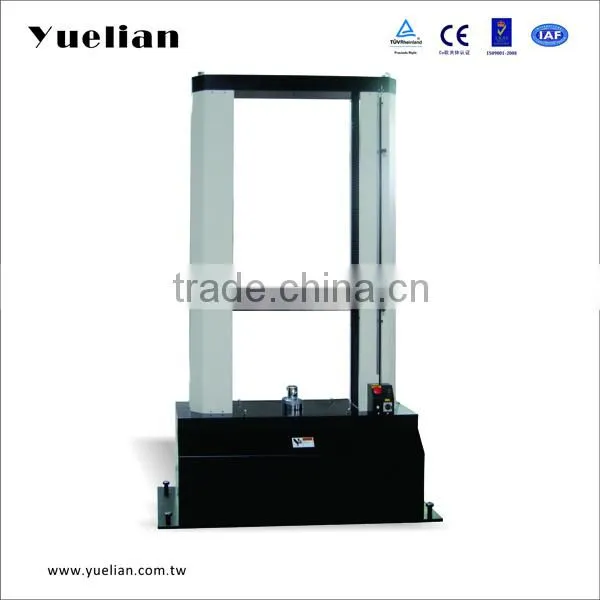

YL-1153 Testing equipment for construction materials
Purpose:
Capacity |
1KN, 2KN, 5KN, 10KN, 20KN, 50KN, 100KN, 200KN,300KN(can select double capacities preparation) |
Display |
Computer display mode |
Force Resolution |
1/250,000 |
Force Accuracy |
≤±0.5% |
Stroke Resolution |
0.005mm |
Control Mode |
All computerized operation mode |
Test Stroke |
1000mm |
Test Width |
550mm |
Test Speed |
0.5~500mm/min, can set by computer, with up & down fast adjustment button of grips |
Force Unit Switch |
Kgf, N, Ibf, g, ton, Mpa |
Stop Mode |
Overload stop, emergency stop button, specimen damage automatic stop, upper & lower limit set automatic stop, automatic reset function |
Machine Dimension |
92×75×199cm(W×D×H) |
Machine Drive |
Servo motor drive, synchronous wheel and precision ball screw drive |
Power |
1500W |
Machine Weight |
Approx 450 kg |
Power Supply |
220V 50/60HZ 10A |
Standard Device |
1 set of grips, computer software, USB computer connection wire |
Optional |
Personal computer |
Software and test report:
Certificate:
Factory:
