Specifications
metal drawer slide rail1.Slide cycling test: 75000 times
2. Surface:48 hours salt-spray test
3.SGS,ISO9001

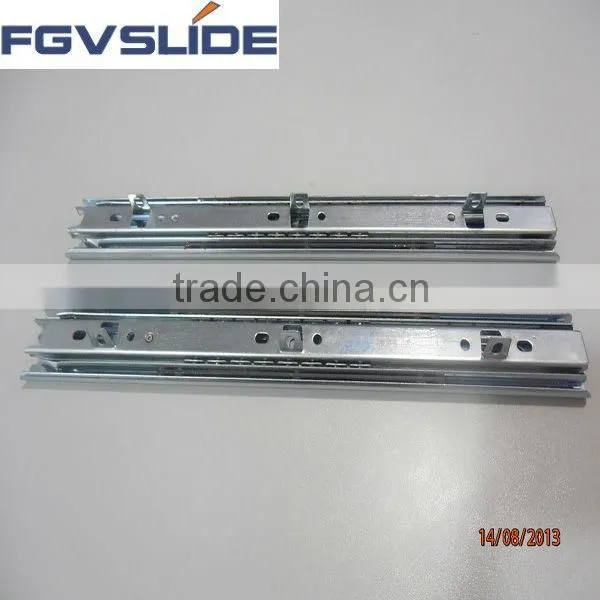

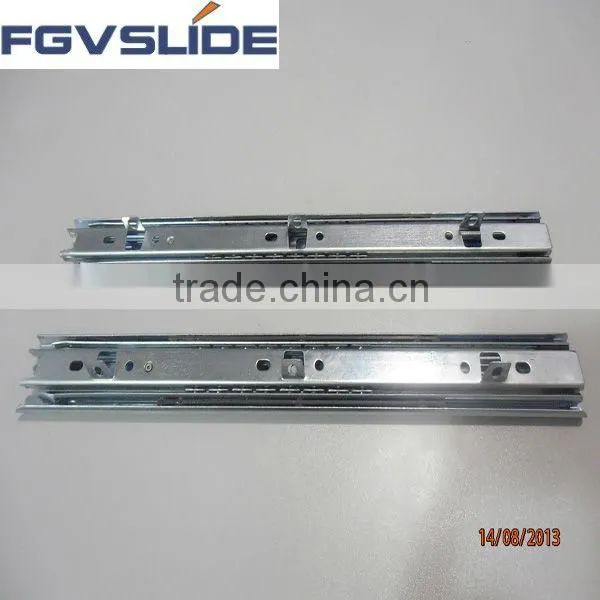

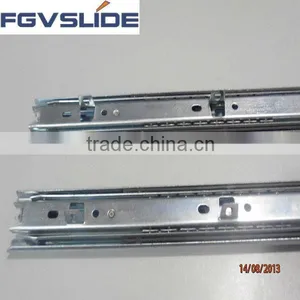

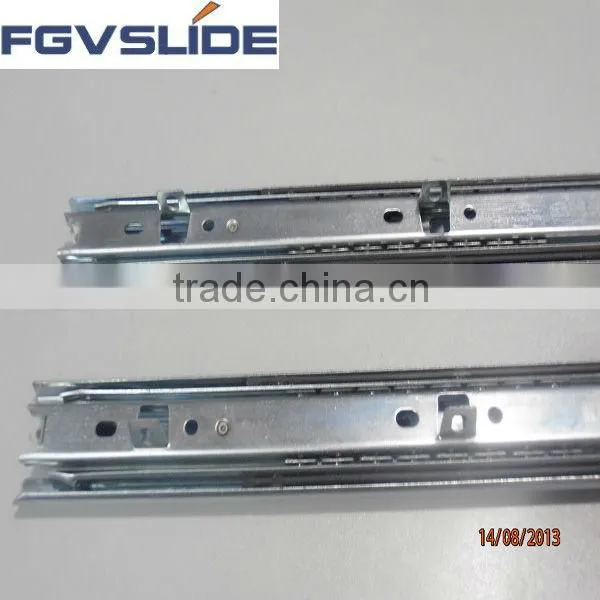

metal drawer slide rail DY3601S
1. Product Mount Method: Bottom Mounting
2. Characteristers: Inner frame detachable assembly function, Adopt 32mm system hole.
3. Load capacity: 20kgs (18 inch)-25kgs(18 inch)
4. Specification: 10 inch-24inch (250mm-600mm)
5. Width: 36mm
6. Gap: Installation gap of every side is 12.7+_0.2mm
7. Material: Work hardened cold rolled steel
8. Finish: Electro-zinc plated with clear, yellow or black chromate.
9. Thickness of material(O/M/I):1.0*1.0*1.0mm/1.0*1.0*1.2mm/1.2*1.0*1.2mm
10. Certificate: ISO9001
11. Test: SGS
12. All our slides are produced by progressive toolings and 1st grade steel material to ensure the precision holes and excellent quality
13. Package: Each pair into a poly bag, 20 pairs packed into one export carton. Package can be customized according to guest.
