Help CenterElegant Shape Full Overlay Hinges
Related Products
-
Complete in Specifications Soft Closing Hinges for DoorUS$ 0.35 - 0.4MOQ: 1000 Pieces -
Attractive Design Kitchen Cabinet Hardware HingesUS$ 0.35 - 0.4MOQ: 1000 Pieces
-
Reliable Quality Auto Cabinet Door HingesUS$ 0.35 - 0.4MOQ: 1000 Pieces
-
Hot Sale Buffer Concealed HingesUS$ 0.35 - 0.4MOQ: 1000 Pieces
-
High Standard Hydraulic Hardware HingesUS$ 0.35 - 0.4MOQ: 1000 Pieces
Specifications
1.full overlay hinges2.48 hours surface treatment
3.100000 times open-close SGS test
4.durable anti-rust property surface
cabinet concealed hinge
clip On,soft-closing concealed hinge
1.Opening angle:90-105°
2.Depth of hinge cup:11.5mm
3.Cup diameter:35mm
4.Hole pitch:52mm
5.Material:Steel
6.Cup fixed: Wood screw Φ3.5*16mm;Dowels 8mm/10mm
7.Crank height:inset(c=19);half overlay(c=9);full overlay(c=0)
8.Hinge arm material thickness:1.0mm,1.2mm
9.Hinge arm screw: Slide on
10.plate height:H=2,H=4
11.Plate material thickness:1.0mm,1.2mm
12.Dimension of door:3-7mm
13.Range for door thickness:16-18mm
14. Certification:ISO9001:2000
15.Test:SGS
16.Usage:door,CABINET
17.Finish: Nickel plated
18.Function:soft-closing
Packaging Detail:
Each pc packed into a plastic bag,then 100 pcs into a carton.
Item No. |
N.W. |
G.W. |
MEAS. |
REMARK |

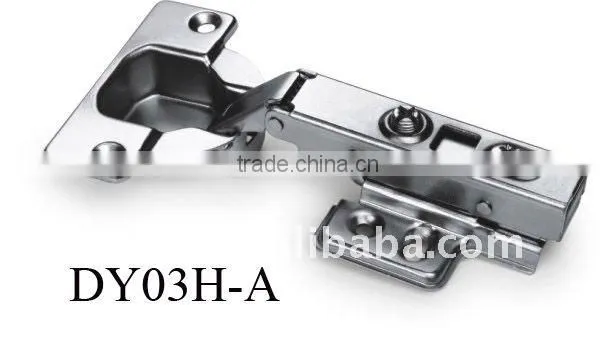

DY03H-A |
10.6 |
11.3 |
38*28*15CM |
100PCS/CTN |
DY03H-B |
12 |
12.4 |
38*28*18CM |
100PCS/CTN |

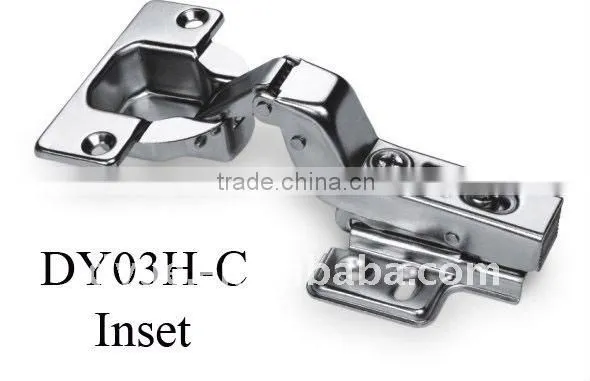

DY03H-C |
13 |
13.9 |
40*30*19CM |
100PCS/CTN |
