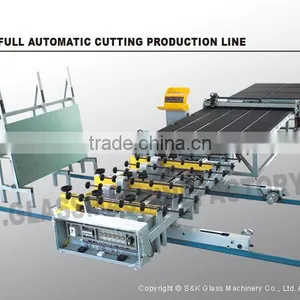

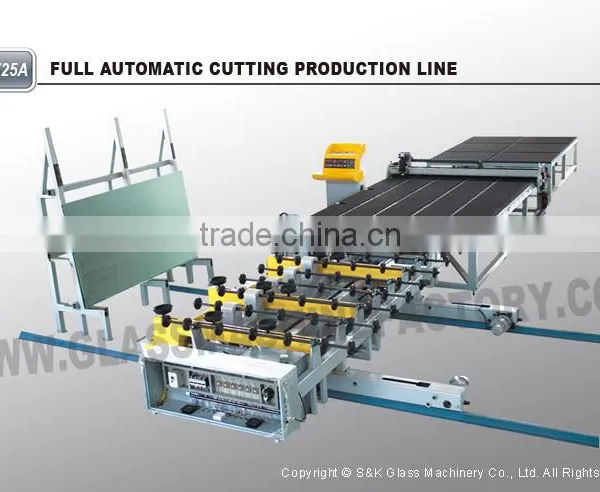

CNC Glass Cutting Machine, CNC Glass Cutting Table, Glass Cutting Production Line.Glass Cutting MachineryS&K SKCL-3725A CNC Automatic Glass Cutting Machine Production Line ( Glass Cutting Machine)
Our CNC Automatic Glass Cutting Line is included with three equipments: CNC Automatic Glass Loading Machine, CNC Automatic Glass Cutting Machine, and Pneumatic Glass Breaking Table. Controlled with a commercial PC,all three machines are worked together automatically in high speed and high precision.
Work flow:
After starting the inputting machine, arms automatically suck glass from the shelf. Under sensor controlled, glass automatically find edge in the X and Y directions. After moving to the designated location, transport glass to the CNC cutting table. Under laser sensory element guidance, use laser-reader to get the position of the glass-sheet. Cutter will move to coordinate origin, and automatically start to cut according to the preinstall graph. After cutting, glass will move to the breaking table. Start break bars and to break the glass. At this point, the whole process work was completed.
1.Glass Automatic Single-side Loading Machin
1.1 Technical data:
Table height:: |
910±10mm |
Max. Sheet Size: |
3660mmX2440mm |
Glass Loading Thickness: |
3-19mm |
Work cycle: |
≤65s |
Glass Conveying Speed: |
45m/min |
Max Glass Weight: |
500 KG |
Power: |
9.5 KW |
1.2 Introduction:
Driven by the gear motors, the machine can know the position of the glass sheet automatically.
Put the Glass-sheets in one side of the machine. Controlled by the PLC in the machine, the operator can finish the job from glass loading to glass position.
2. Automatic Glass Cutting Machine (Model No.: SKC-37
2.1 Technical data:
Max cutting sizemm |
3660×2440 |
Max through glass sizemm |
3700×2500 |
Glass cutting thicknessmm |
2-15 |
Cutting Accuracy ( mm |
±0.25/2000 |
Max Cutting speed( m/min |
90 |
|
Cutting function
|
Optical electronic location for cutting head / manual location for glass. |
|
Remark:
|
Machine equipped with glass typesetting and Optimization System. |
2ntroduction:
The operator can edit the glass size for cutting with computer. The computer can optimize the cutting size, and give out the data for processing, driven the machine to cut the glass sheet automatically in high speed and high precision.
------------------------------------------------------------------------------------------------------------
S&K specialize in manufacturing a various of high quality Glass Cutting Machine, processing machines as including:
1- CNC Automatic Glass Cutting Machine Production Line
2- Semi-Automatic Glass Cutting Machine Production Line
3- Automatic Glass Cutting Machine
4- CNC Glass Cutting Table
5- Semiautomatic Glass Cutting Machine / Table
6- Glass Straight Cutting Machine
7- Glass Shaped Cutting Machine
8- Manual Glass Cuttng Machine
9- Automatic Round Cutting Machine
10- Glass Loader
11- Pneumatic Glass Breaking Machine
