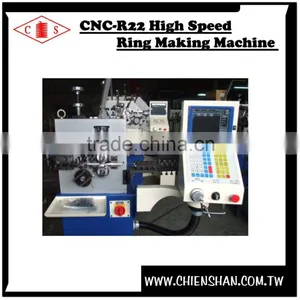

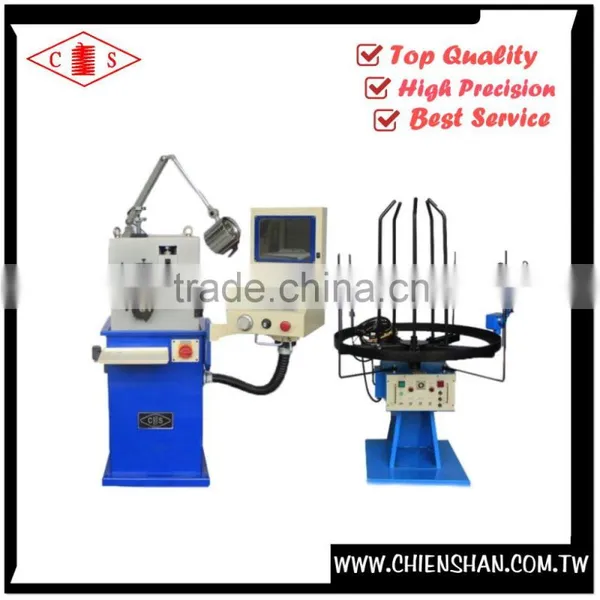

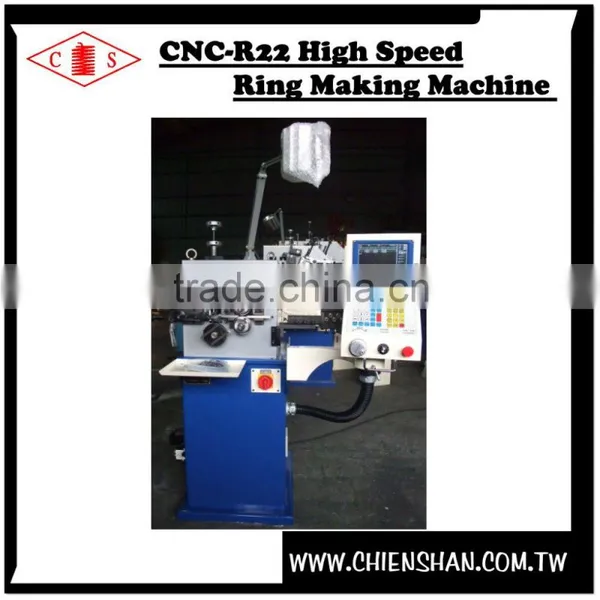

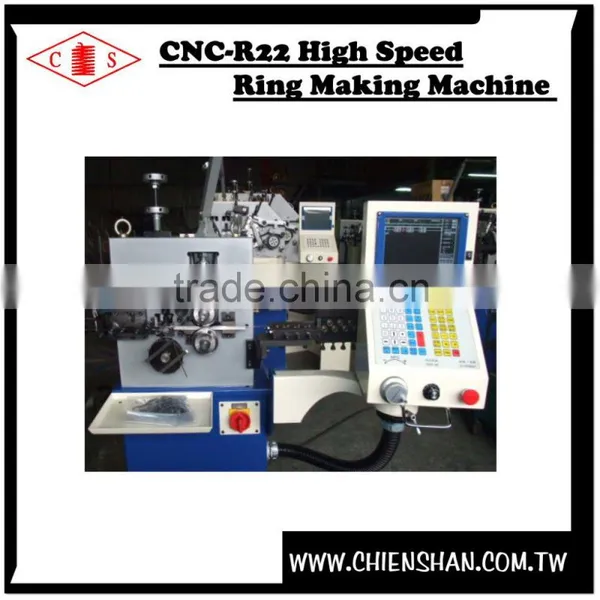

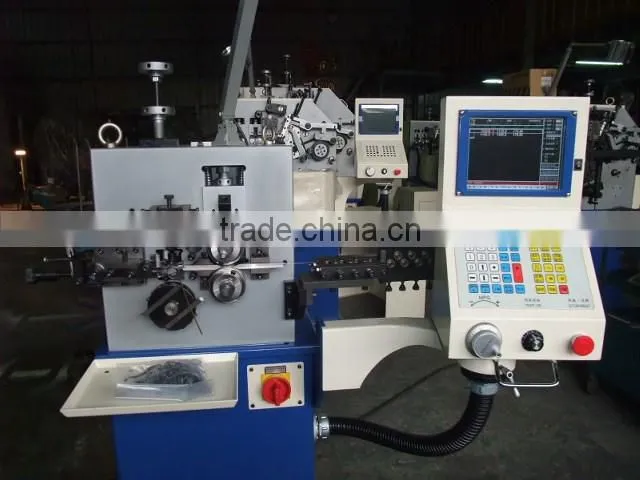

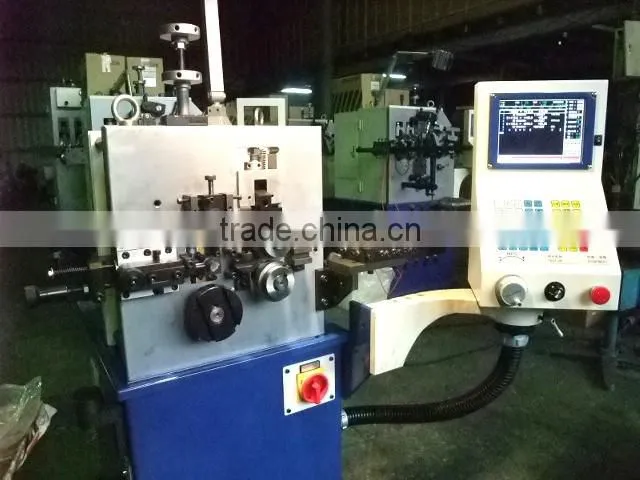

CNC-R229 Best Selling Automatic High Speed Ring Machinery
Model |
CNC-R22 High Speed Ring Making Machine |
Number of Axis |
2 |
Wire Diameter |
0.6 ~ 2.2 mm |
Max. O.D. |
35 mm |
Max. Production Speed |
200 ~ 600 pcs/min |
Feed Length |
Unlimited |
Feed Speed |
90 m/min |
Monitor Display |
Color / Chinese / English |
Max. Value |
X : 359.99 Y : 99999.99 mm |
Min. Value |
X : 0.01 Y : 0.01 mm |
Memory |
999 Programs Max. 250 Lines for each program |
Machine Dimensions |
140 x 120 x 140 cm |
Wooden Case Dimension |
170 x 150 x 170 cm |
Machine Weights |
400 Kgs |
Gross Weights |
650 Kgs |
Power |
220V 3P 50/60Hz |
Wire Diameter suitable for 0.6 ~ 2.2 mm.
Max O.D. up to 35 mm.
2-axis control, for wire feed and pitch mechanism.
High precision equipped with CNC controlled servo-motion system
No tooth-gear required while feeding wire.
Cutter no need to rotate 360 degree.
Speed improved Max. up to 600 pcs/min..
Simplified setup and program with English/Chinese platform.
-

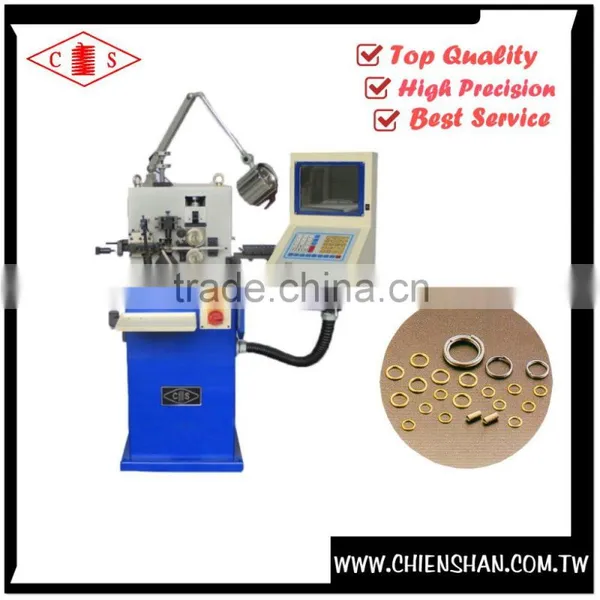

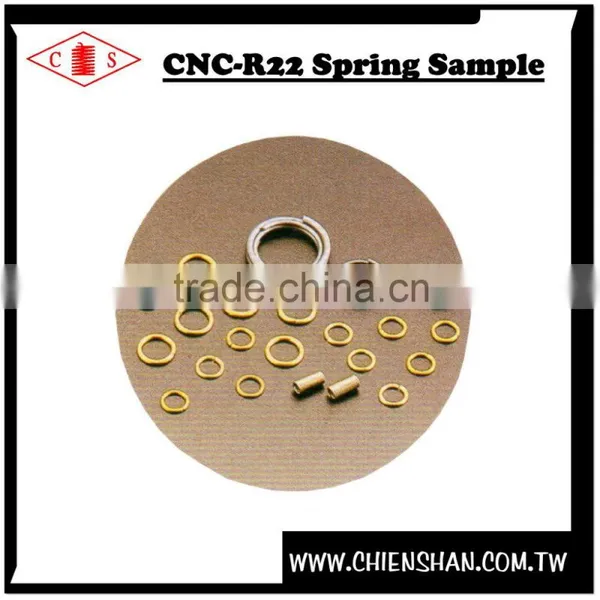

Capable of making various kind of rings.

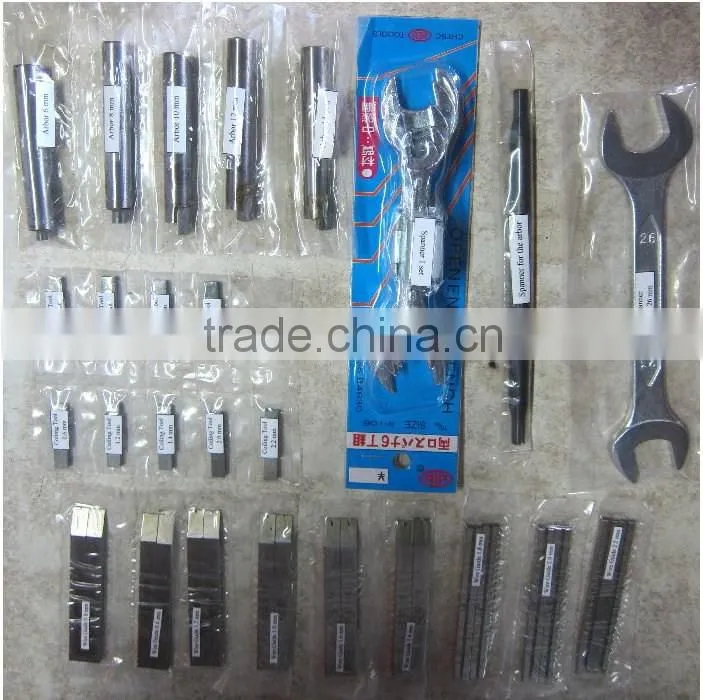

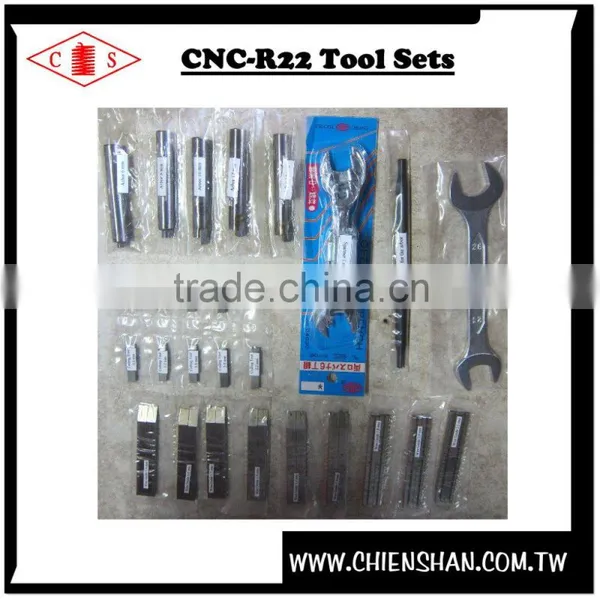

Tools + User Manual
