Specifications
1.Certificate: ISO 90012.3-60 meter positions optional.
duce as your requirements
4.Prompt delivery
ADVANTANGE:
18 years of professional experience
low price and excellent quality
stantard of ISO9001 ,IEC
excellent after-sales service
highly customizable

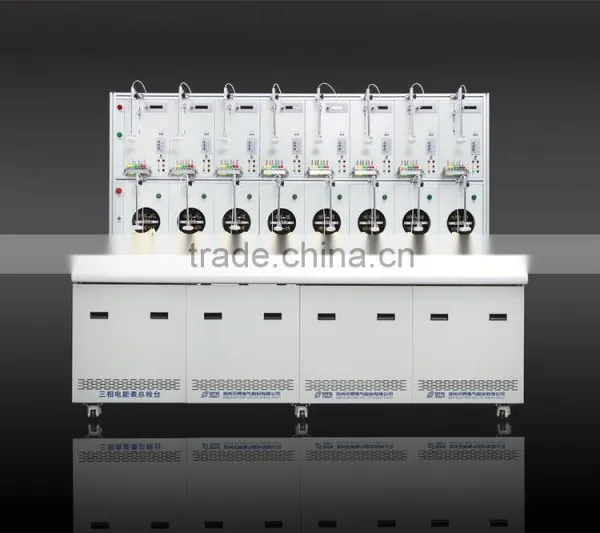

DZ603-16 Three Phases Energy Meter Test Bench
Main features
1. Shall carry out completely automatic calibration items such as running with no load, starting, basic error, standard distortion and 24 hours variation etc according to testing regulations: four quadrant: positive, negative, active and reactive error test, automatic shift the input of all kinds of pulse.
2. The tested meters may be same specification but different communication agreement.
3. Shall carry out tests such as demand cycle and its display, time interval error, register combined error and daily error.
4. Communication test, GPS broadcast time calibration, meter data verification, regarding record meter number.
5. According to regulations, carry out various influence value test, voltage falling and interruptions shall be carried out.
6. Automatically adjust black spot, calculate time for starting test and running with no load test according to regulations.
7. Shall adopt fixed time and fixed quality burden methods to carry out the reading test, and different time interval with different burden tests are available.
8. Shall display the voltage and current wave diagram with same phase: shall set and measure 2-21 times harmonic wave and measure the distortion degrees.
9. Data be processed and printed automatically, and the table lay out shall be set freely according to user's requirements, transfer data by all M2S Port.
10. Support: bar code input, error curve, error limit setting, multi-mode calibration plans and equipment management authority etc.
Technical data:
1. Voltage output ranges: 57.7V, 100V, 220V, 380V.
2. The current ranges: 1mA, 5mA, 10mA, 25mA, 50mA, 0.1A, 0.5A, 1.0A, 2.5A, 5A, 10A, 20A, 50A, 100A.
3. The voltage and current adjusting resolution: 0.01%*tap position.
4. The voltage and current adjusting scope: 0120%*tap position.
5. Output phase adjusting scope: 0359.9°, adjusted resolution is 0.01°, output accuracy: +/-0.05°.
6. Output frequency adjusting scope: 45.0065.00Hz, adjusted resolution is 0.01Hz, accuracy: +/-0.05Hz..
7. Output current and voltage stability: 0.05%, output power stability: 0.05%.
8. Output voltage and current distortion: <0.5%.
9. Output power: voltage 280VA per phase, current: 450VA per phase.
10. Accuracy class: 0.05, 0.1.
11. Power supply: 3*220V or 1*220V+/-10%, AC50HZ, 60HZ.
12. Meter position: 16 meters.
Annotation:we can produce three or single phase energy meter test bench with 3-60 meter positions according to your requirements.
Packed in Plywood case
Deliver the goods within two weeks after receiving the prepayment
1. What is the advantages of your products?
Thanks for your inquiry. Our products' advantages is that all products achieve the standard of ISO9001.
And our goods have been exported to many countries in the world, such as Korea, India, Russion, Pakistan, Vietnam ans so on. The quality is excellent that it wins lot reputation for us.
2. What terms of trade your company accept?
Thanks for your consideration. Our company accepts T/T, L/C, Western Union. Thanks for your understanding.
2. Good after-sale service, and good quality.
3. What terms of trade your company accept?
Thanks for your consideration. Our company accepts T/T, L/C, Western Union. Thanks for your understanding.
