Features:
Build-in head track system
AV in/AV out/Earphone socket
Adjustable brightness and contrast
With VGA(640*480) front camera for surrounding view
Built-in WVGA(854*480) binoculay display sreen, IPD adjustable
High sensitie 5.8GHz 4 bands 32CH receiver compatible with most FPV 5.8G transmitter in the market
FPV 3D vision(equipped with 3D camera and 5.8GHz dual transmitter), more vivid visual experience as a whole

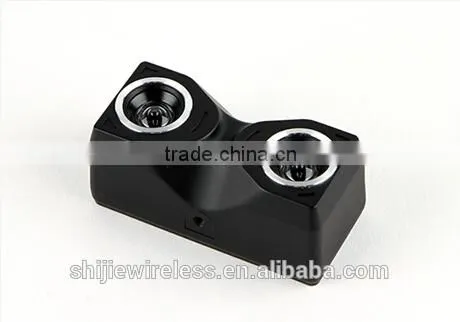

Specifications(SKY301):
FOV: 85 degrees (diagonal)
F/NO: 3.0
Resolution: 720 * 576
Video standard: PAL
Video output level: 1.0Vp-p Typ./75ohm
Audio output level: 2.0Vp-p Typ./10Kohm
Power supply: DC 5.0V/0.5A
Power consumption: 1.6W
Dimensions: 65 * 30 * 28mm
Operating temperature: 0℃~60℃

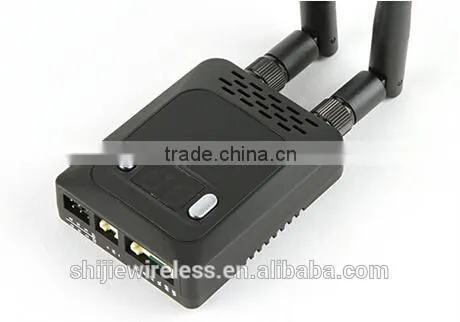

Specification(SKY201):
Modulate: Wideband FM modulate
Video standard: NTSC/PAL
Video input level: 1.0Vp-p Typ./75ohm
Video band width: 8.0MHz
Audio input level: 2.0Vp-p Typ./10Kohm
Audio carrier frequency: 6.5MHz
Power supply: DC 7.0V~26V/1.5A
Power consumption: 12V input: 7.5W
Dimensions: 59 * 46 * 16mm(Not include prominent part)
Operating temperature: 0℃~70℃
RF output impedance: 50 ohm
RF output power: 26~28dBm
Specification(SKY02):
Binocular display
FOV: 30 degrees(diagonal)
Resolution: 854*480(WVGA) 1,229,760 color sub-pixels
Brightness: 30cd/meter
Interpupillary distance(IPD): 59-69mm adjustable
Wireless Receiver
Sensitivity: -90dBm±1dBm
Antenna port: 2 * SMA, 50ohm
Front Camera
FOV: 60 degrees (diagonal)
Resolution: 640*480(VGA)
Focal length: f=4.0mm
F/NO: 2.8
Head Tracker
Sensor: Magnetic, inertial and gyro
Output: PPM 8 channel, Optional 5-6CH, 5-7CH, 5-8CH, 6-7CH, 6-8CH, 7-8CH
Record
Micro SD: Support to 32GB
Compression: MJPEG, 30fps, AVI
Picture: JPEG
Record rate: 6Mbps
AV Signal
Video standard: NTSC/PAL
Video output level: 1.0Vp-p Typ./75ohm
Audio output level : 1.0Vp-p Typ./ 10Kohm
AV Port
Div.AV OUT(3.5mm4P): Diversity video, audio output
EAR OUT(3.5mm3P): Stereo 16Ω/150mW
AV IN(3.5mm4P): Video/Audio input
Power Supply
DC IN: DC 7~26V/ 1A
Power consumption: 12V input: 5.4W
Preset Frequency:
CH1: 5733M, 5771M
CH2: 5752M, 5790M
CH3: 5809M, 5847M
CH4: 5828M, 5866M
Custom Frequency:
A: 5865M, 5845M, 5825M, 5805M, 5785M, 5765M, 5745M, 5725M
B: 5733M, 5752M, 5771M, 5790M, 5809M, 5828M, 5847M, 5866M
E: 5705M, 5685M, 5665M, 5645M, 5885M, 5905M, 5925M, 5945M
F: 5740M, 5760M, 5780M, 5800M, 5820M, 5840M, 5860M, 5880M
Package Information:
Package size: 24 * 17.5 * 6.5cm / 9.4 * 6.9 * 2.6in
Package weight: 822g / 1.8lb
Brand gift box package

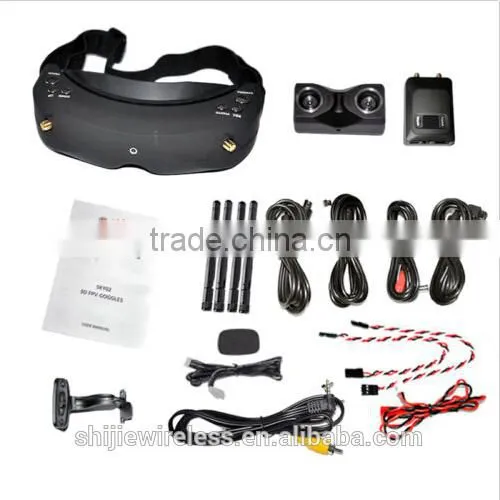

Package List: RM4561
1 * FPV Goggles
1 * Carry Case
1 * Sky201 Transmitter
1 * Sky301 Camera

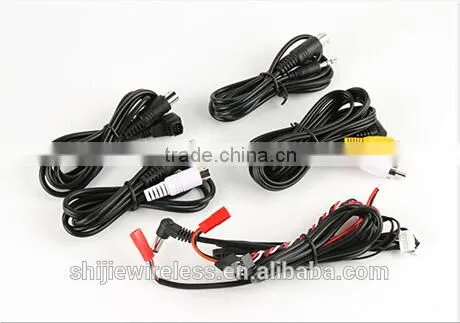

3 * Data Cable
4 * 5.8G 2dBi Antenna
1 * 6P Camera Cable
1 * 3P TX Remote Control Cable
1 * AV Cable
1 * Power Cable
1 * 2P TX Power Cable
