FPV Manfacturer and Distributor of Diversity 5.8G 40CH Receiver RD40 With Race Band

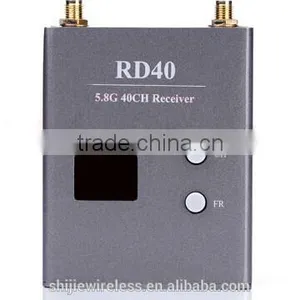

FPV Manfacturer and Distributor of Diversity 5.8G 40CH Receiver RD40 With Race Band thumbnail-1
FPV Manfacturer and Distributor of Diversity 5.8G 40CH Receiver RD40 With Race Band thumbnail-2
FPV Manfacturer and Distributor of Diversity 5.8G 40CH Receiver RD40 With Race Band photo-1

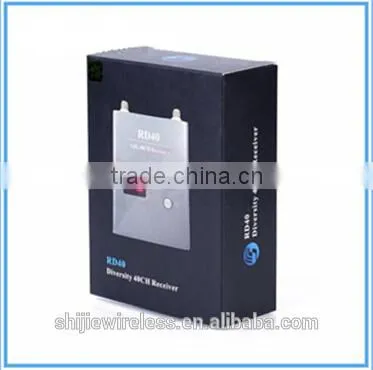

FPV Manfacturer and Distributor of Diversity 5.8G 40CH Receiver RD40 With Race Band photo-2
US$ 55.00 - 55.00 MOQ: 10 Units
Key Specifications
Get Latest Price
Type:
Helicopter
Power:
Other, Power
Material:
Other, Metal
Contact Supplier Request Quote Chat Now
Shenzhen Shijie Wireless Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Type Helicopter
Power Other, Power
Material Other, Metal
Scale Other, 1:1
Radio Control Style RC Hobby
Place of Origin Guangdong, China
Brand Name shijie wireless
Model Number RD40
Product Description

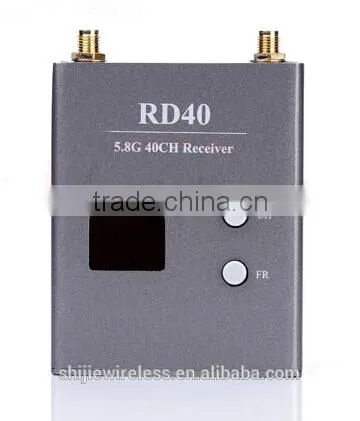

FPV professional developer and manfacturer diversity 5.8G 40CH Receiver RD40 with race band



This is 5.8G 40CH wireless receiver is ideal for FPV racing Quads,it's 40CH and diversity receiver which is now compatible with RACE BAND, giving upto 8 racers the chance to fly together at the same time



Features:
1)  40 channels, 5 frequency band wireless receiving.

2) Two buttons for channel and band exchange individually.

3) Two number display, timely locate the current receiving frequency and band

4) When power on, storage memory shows channel and frequency of the last time

5) Two-way video and audio signal output ( video: PAL, NTSC,CECAM ;Audio 6.5MHz

6) Wide dynamic power supply ( 7-24v)

7) Two-way high senstivity receivers, make your signals more stable.

8) With specific indicator shows the current working state



Frequency: CH and FR form
FR1 or (A): 5865M 5845M 5825M 5805M 5785M 5765M 5745M 5725M
FR2 or (B): 5733M 5752M 5771M 5790M 5809M 5828M 5847M 5866M

FR3 or (E): 5705M 5685M 5665M 5645M 5885M 5905M 5925M 5945M

FR4 or (F): 5740M 5760M 5780M 5800M 5820M 5840M 5860M 5880M

FR5 or (R): 5658M 5695M 5732M 5769M 5806M 5843M 5880M 5917M


Package Included:

1 x Receiver
1 x AV Cable
1 x Power Cable
2 x Antenna



FPV manfacturer and distributor of diversity 5.8G 40CH Receiver RD40 with race band

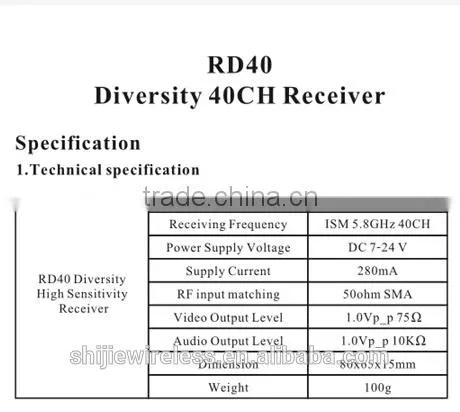

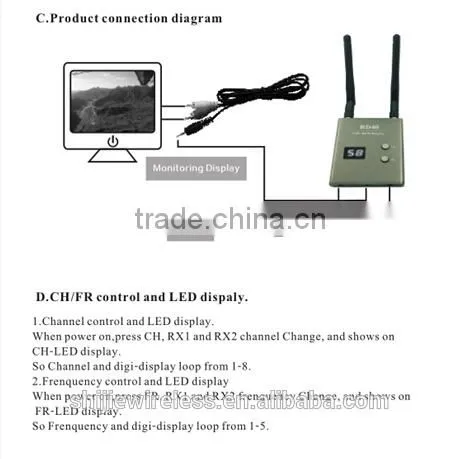

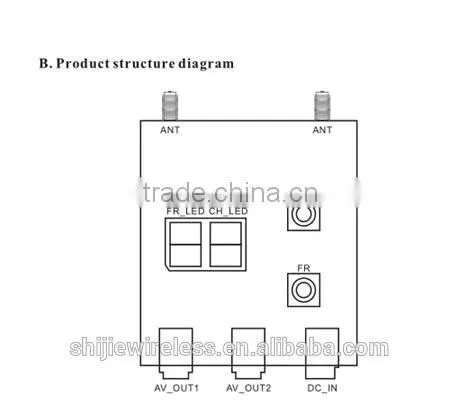

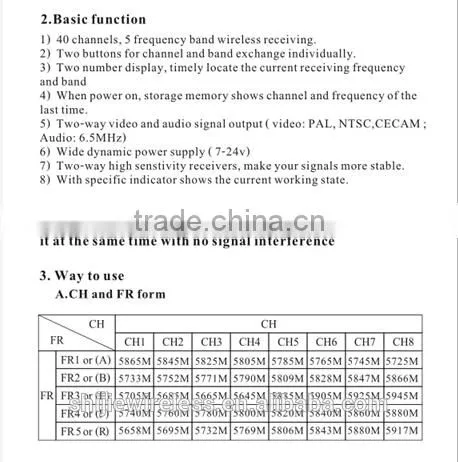

Diagram:



FPV manfacturer and distributor of diversity 5.8G 40CH Receiver RD40 with race bandFPV manfacturer and distributor of diversity 5.8G 40CH Receiver RD40 with race bandFPV manfacturer and distributor of diversity 5.8G 40CH Receiver RD40 with race bandFPV manfacturer and distributor of diversity 5.8G 40CH Receiver RD40 with race band

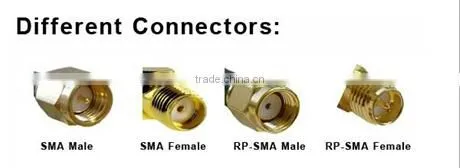

Different connectors can be chose:

FPV manfacturer and distributor of diversity 5.8G 40CH Receiver RD40 with race band

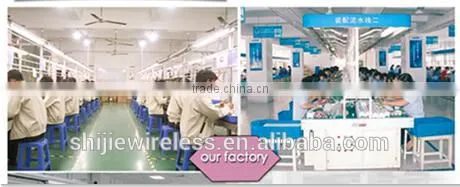

Factory View:

FPV manfacturer and distributor of diversity 5.8G 40CH Receiver RD40 with race band



Certifications:

FPV manfacturer and distributor of diversity 5.8G 40CH Receiver RD40 with race band



Shipment way:

FPV manfacturer and distributor of diversity 5.8G 40CH Receiver RD40 with race band
