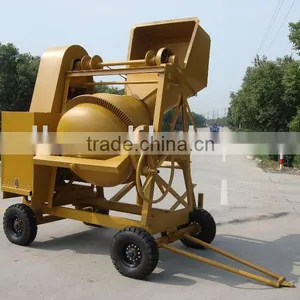

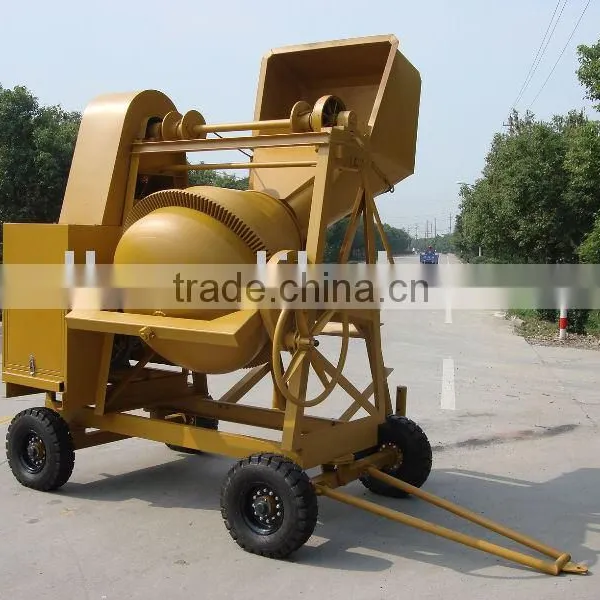

Containerized Export North Africa Diesel Tilting Drum Diesel Concrete Mixer

Name: Containerized Export North Africa Diesel Tilting Drum Diesel Concrete Mixer
Brand: TOPALL
SKU: 112665713

US$ 2,400 - 3,350 MOQ: 1 Unit

Key Specifications

Condition:

New

Place of Origin:

Jiangsu, China

Brand Name:

TOPALL

Jurong Topall Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

SHANGHAI

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Place of Origin Jiangsu, China

Brand Name TOPALL

Model Number TDCM200-7D

Motor Power 9

Mixing Power 9

Charging Capacity 680

Reclaiming capacity 500

Speed of Mixing Drum 17

Water Supply Mode no

Working Cycle Period 22

Discharge Way tiling

Outline Dimension 1930*2300*2950

Specifications

Tilting drum concrete mixer :single hinged cradle-type hopper system which reduces load on clutch,transmission and engine.diesel

Tilting Drum Concrete Mixer with 200 litre specification

Single hinged cradle-type hopper system which reduces load on clutch,transmission and engine.

Diesel engine of 8.8 HP.

Four pneumatic wheels.

Cabin open from all three sides for ease in maintenance.Cabin provided with reinforced pressed ribs to prevent vibration.

Model	TDCM200-7D
Power source	Diesel engine water cooled and radiator
Unmixed capacity	320L
Mixed capacity	200L
Mixing time	60s
Drum speed	20-22 r.p.m
Engine power transmission	Chain
Mechanical	Clutch drive
Loading hopper	Heavy duty loading hopper with wire rope,brake,clutch
Chassis	Heavy duty robust steel chassis
Dimension	1930×2300×2950mm
Weight	1250kg
