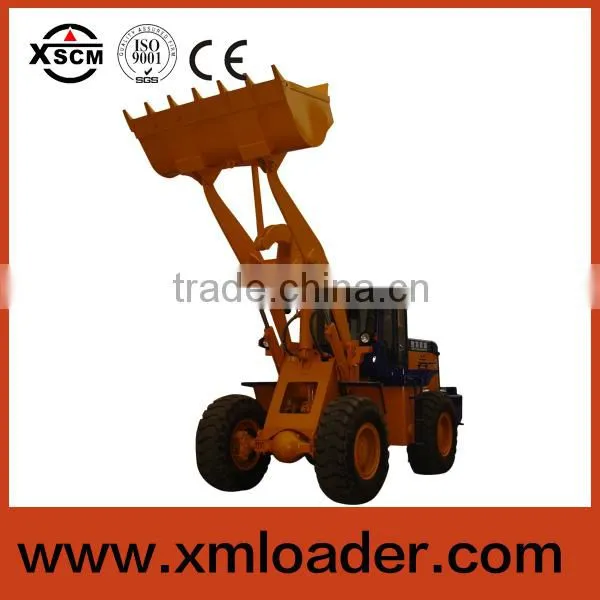

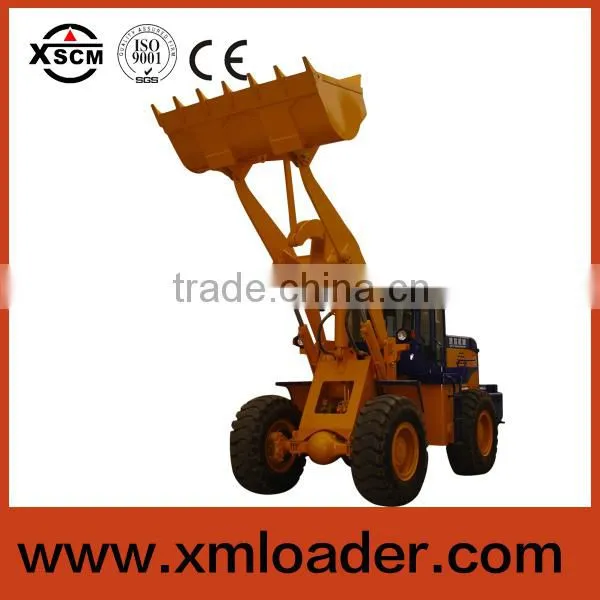

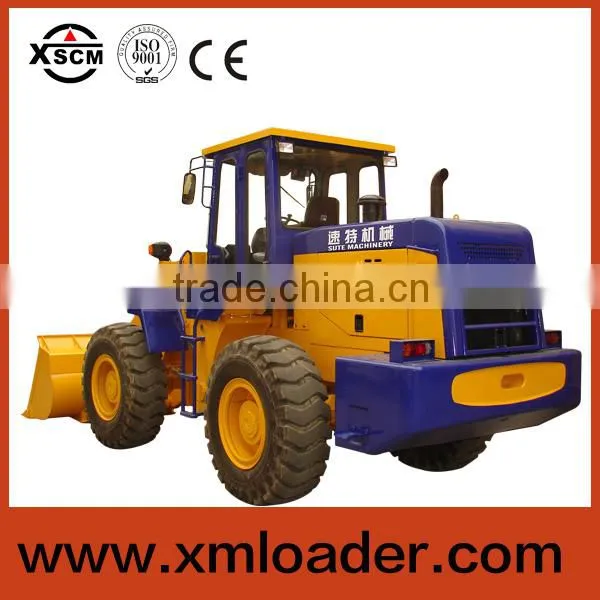

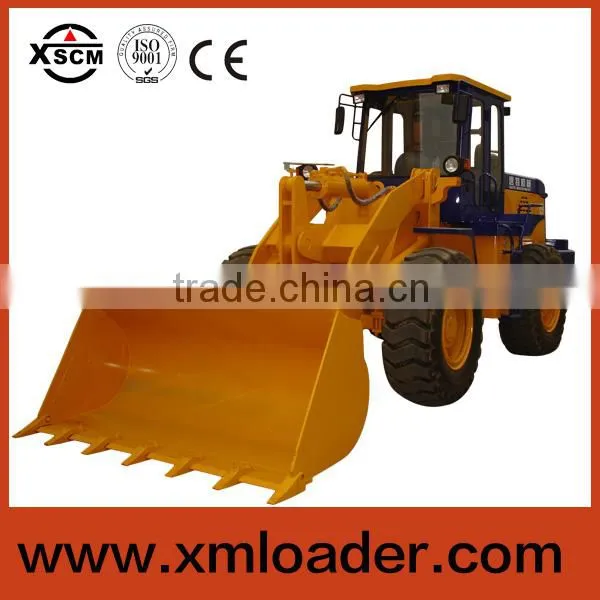

XSCM ce Competitive Wheel Horse Front End Loader
US$ 9,000 - 60,500
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Brand Name:
XSCM
Model Number:
ST935
Payment & Shipping
Payment Methods:
Port of Shipment:
FOB China port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
XSCM ce High Quality 3.5 Ton Joystick Loader Wheel Loader ST938US$ 30,500 - 38,500MOQ: 1 Set -
XSCM CE Approved Extra Large Wheel Loader Bucket SizeUS$ 9,000 - 60,500MOQ: 1 Set
-
XSCM 1.5t Mini Loader Zl15f Wheel Loader for SaleUS$ 9,500 - 20,500MOQ: 1 Set
-
XSCM ce Competitive Price Wheel Loader Zl30gUS$ 9,000 - 60,500MOQ: 1 Set
-
XSCM ce 1.6t Wheel Loader Small Wheel LoaderUS$ 9,000 - 60,500MOQ: 1 Set
Condition
New
Brand Name
XSCM
Model Number
ST935
Place of Origin
Fujian, China
Type
Mini Loader
Moving Type
Wheel Loader
Dimension(Long * Breadth * High)
7150*2250*3170
Rated Load
3000kg
Certification
CE
Warranty
1 year
After-sales Service Provided
Engineers available to service machinery overseas
Specifications
XSCM ce competitive wheel horse front end loader on hot sale with high quality and competitive priceXSCM ce competitive wheel horse front end loader quipped with Deutz TD226B-6G diesel engine,which is of high power reserve,excellent performance and reliability
the wheel horse front end loader quenched integral cutting edge bucket,more strength,better wearing resistance and long life
XSCM ce competitive wheel horse front end loader main specifications as following:
| Length(with bucket on ground) | mm | 7150 |
| Width(to outside of wheels) | mm | 2250 |
| Bucket width | mm | 2360 |
| Height(To the top of the cab) | mm | 3170 |
| Wheel base | mm | 2750 |
| Tread | mm | 1800 |
| Min. ground clearance | mm | 370 |
| Rated load | kg | 3000 |
| ated bucket capacity | m3 | 1.7m3(2.0m3 as optional) |
| Max. breakout force | KN | 98±5 |
| Max. dump distance | mm | 3350±15 |
| Dump reach | mm | 1020 |
| Max. climbing gradient | ° | 28 |
| Turning angle | ° | 35±1 |
| Dump angle at any position | ° | 45 |
| Turning radius | mm | 5610 |
| 1st gear forward | km/h | 8 |
| 2nd gear forward | km/h | 13.5 |
| 3rd gear forward | km/h | 25 |
| 4th gear forward | km/h | 36 |
| 1st gear reverse | km/h | 9.5 |
| 2nd gear forward | km/h | 13.5 |
| 3rd gear forward | km/h | 25 |
| 4th gear forward | km/h | 36 |
| 1st gear reverse | km/h | 9.5 |
| 2nd gear reverse | km/h | 30 |
| Model | Deutz TD226B-6G | |
| Type | In-line, water cooled, direct injection, Turbocharger,4-stroke | |
| Rated power | KW | 92 |
| Inter-bore of cylinder/stroke | mm | 6- 105×120 |
