Help CenterUE 200 Series High Precision Concentric Locking Insert Bearings
Related Products
-
GE..PW Self-lubricated Spherical Plain Radial BearingsUS$ 1 - 56MOQ: 500 Pieces -
Spherical Plain Bearings(GE15C)US$ 1 - 100MOQ: 300 Pieces
-
LDK Rod End Bearing ge GegUS$ 1 - 15MOQ: 500 Pieces
-
4mm Rod End BearingUS$ 1 - 15MOQ: 500 Pieces
-
Precision Spherical Plain Bearing Bearing GE5CUS$ 1 - 15MOQ: 500 Pieces

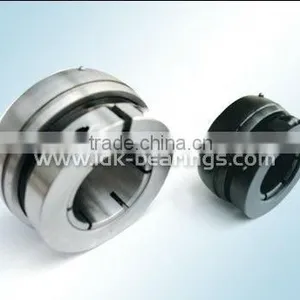

LDK’s ACCU-GRIP Concentric locking Insert Bearings
Designed for a quieter ,smoother and more efficient running under high radial loads and a true center line.
True Centerline
The inner race closes down on the shaft from 360 degrees all sides creating a true centerline resulting in even and constant balance, thus results in better operation and longer life.
Reduce noise and vaibration
The uniform grip of the inner race to the shafts results in lower noise and vibration levels at high speeds
Qucik and Easy Installation
One step installation - only a single standard hex head cap screw - in one position.
Shaft protection
The concentric locking significantly reduces the chance of marring or damaging the shaft thus significantly reduce fretting corrosion. Especially for stainless ACCU-GRIP series, due to this feature, it will significantly reduce bacteria and thus a better choice for food & beverage etc industry which requires high Hygeia requirement.
More efficient fan balancing
Because the ACCU-GRIP Ball Bearing is totally concentric with the shaft, it will not induce vibration into the fan/blower system and will reduce the fan OEM*s trim balancing time for high speed applications. No 1 choice for HVAC industry.
Reduced shafting costs
The ACCU-GRIP Ball Bearing only requires commercial grade shafting tolerances. This can save approximately 40% in shafting costs versus turned, ground and polished shafting.
UE SERIES INSERT BEARINGS ARE INTERCHANGEABLE WITH SETSCREW AND ECCENTRIC LOCKING COLLAR TYPE INSERTS.
| BEARING TYPE | LOCKING BY | DISADVANTAGE COMPARED TO UE TYPE |
| UC | SETSCREW | DAMAGE TO SHAFT,UN-UNIFORM LOCKING,NOT SUITABLE FOR HIGH SPEED ROTATION |
| NA | ECCENTRIC LOCKING COLLAR | NOT SUITABLE FOR HIGH SPEED AND REVERSE ROTATION |
| UK | ADAPTER SLEEVE | NEED TO SELECT A LARGER BORE SIZE BEARING AND NEED A SPANNER FOR FIXING. |
| UE SERIES INSERT BEARINGS COULD BE USED WITH BERAING HOUSING MADE OF CAST IRON,PRESSED STEEL,ALL STAINLESS AND THERMOPLASTIC | ||
For more new details,please visit the website:
