Specifications
This machine is applied to Al-Pl, hard Al blister packing, such as capsules and tablets, sugar-coated tablets, small hard wares.

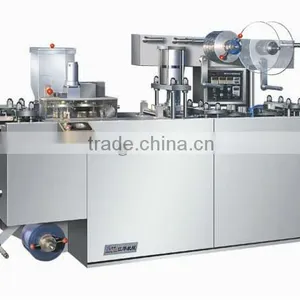

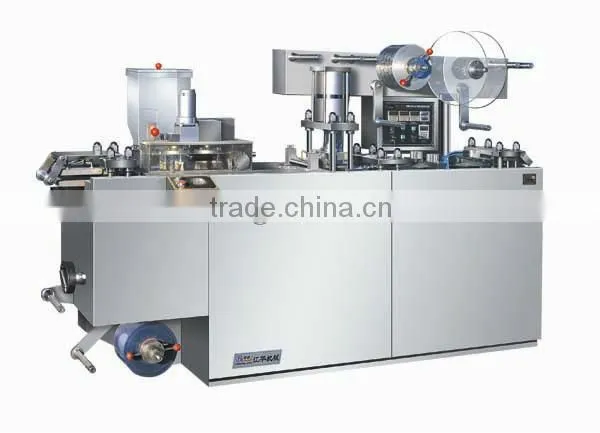

DPP140D Blister Packing Machine

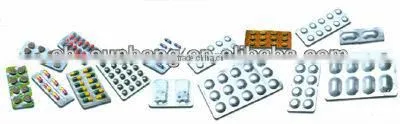

Samples:
Product Description:
This kind of machine is the newest product which specially designed for pharmaceutical factories.It is characterized by novel outline,convenience of operation,complete performances, Adjustable travel,simpleness of changing of molds.It gets credit for products of high quality.
The main process such as heating,pressure forming,double feeding,hot-sealing,batch number,impressing disjunction line,counting and cutting are automatically completed continuously.It can be designed to do super depth blister packing (eg. Big honeyed pill) according to user's requirements and also line mesh hot-sealing.It has smooth and visual process. It is suitable for blister packing for various capsules,tablets and other medicines.
Specifications:
Cutting frequency40-80 plates/min
Productivity 36,000-72,000 pieces/h
Max. forming area130mm×100mm
Max. forming depth18mm
Adjusting range of travel40mm-110mm
Size of standard plate80×57mm
Width and thickness of PVC and PTP Alum FoilPVC140×0.25-0.5mm PTP140×0.02-0.03mm
Power supply220V 50HZ
PowerMain motor 0.75kw, heating power 2.4kw
Overall size2020×650×1400
Size of encasement2200×700×1700
Weight1000KG
