Help CenterHY61 Series Frame Type Cold Extrusion Machine
Related Products
-
ISO9001-2008 1500t Cold Extruding Hydraulic PressNegotiableMOQ: 1 Set -
CNC 2000t Cold Extruding Hydraulic PressNegotiableMOQ: 1 Set
-
Wholesale Products OEM 1000t Cold Extruding Hydraulic PressNegotiableMOQ: 1 Set
-
Xinke Hydraulic Cold Press MachineNegotiableMOQ: 1 Set
-
Homemade Hydraulic Press 250 Ton for Cold ExtrusionNegotiableMOQ: 1 Set
Technical Parameters
| Item Type | HY61-200 | HY61-315 | HY61-400 | HY61-500 | HY61-630 | HY61-800 | HY61-1000 | HY61-1250 | ||
| Nominal Pressure | kN | 2000 | 3150 | 4000 | 5000 | 6300 | 8000 | 10000 | 12500 | |
| Knock-out force | kN | 360 | 300 | 350 | 570 | 630 | 970 | 660 | 1520 | |
| Below Ejecting Force | kN | 400 | 500 | 630 | 630 | 800 | 1000 | 1000 | 1500 | |
| The Max. working Pressure of Hydraulic | Mpa | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | |
| Main Cylinder Stroke | mm | 350 | 350 | 350 | 400 | 450 | 500 | 500 | 900 | |
| Stroke of Below Ejector Cylinder | mm | 200 | 200 | 200 | 200 | 200 | 200 | 200 | 300 | |
| The Max. Opening between Slider and Working Table | mm | 600 | 600 | 650 | 700 | 800 | 850 | 850 | 1500 | |
| Active Area of Working Table | mm×mm | 580x700 | 620×700 | 720x720 | 720x800 | 800x880 | 860x920 | 860x1000 | 1300x1300 | |
| Speed of Slider | Quick Descend | mm/s | 300 | 300 | 350 | 350 | 280 | 300 | 300 | 180 |
| Slow Descend | mm/s | 12-30 | 10-25 | 10-25 | 10-25 | 10-23 | 10-22 | 10-20 | 8-24 | |
| Return | mm/s | 160 | 250 | 250 | 210 | 180 | 200 | 280 | 200 | |
| Speed of Ejector | Ejecting | mm/s | 150 | 150 | 150 | 100 | 75 | 120 | 110 | 120 |
| Return | mm/s | 230 | 200 | 200 | 130 | 110 | 160 | 200 | 130 | |
| Main Electric Motor Power | kW | 22 | 30 | 37 | 44 | 60 | 74 | 74 | 111 | |
| Weight | t | 8 | 10 | 12 | 14 | 21 | 25 | 28 | 45 | |

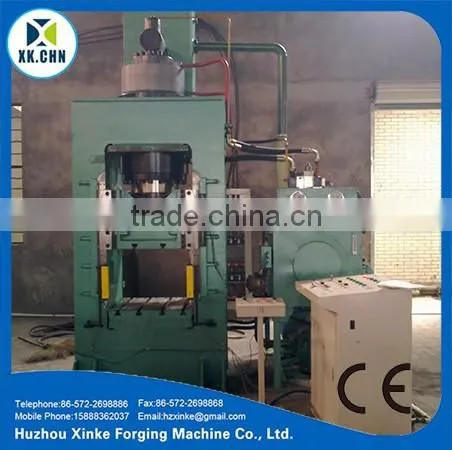

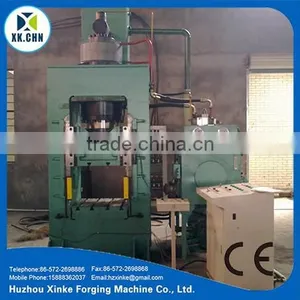

HY61 series frame type cold extrusion machine
Metal stamping hydraulic press
Characteristics:
1.Gantry-style structure with small working table, High body strength, economic and practical
2.Cartridge Valve Integrated System equipped in hydraulic control system, and General press below 500t, equipping in hydraulic slider valve control system with high reliability, durability, small hydraulic impact and minimizing hydraulic impact design
3. Independent electrical control system adopted Japanese imported Mitsubishi PLCwith reliability, intuitive movement and convenient amendment
4.Adopting Button common control with two operation ways: adjustment or two-hand/single cycle operation
5.Preset Stroke Forming or Preset Pressure Forming process can be selected. High control precision, especially for extrusion forming of shaft parts and tooth parts
Applications:
Suitable for extrusion and forming of shaft parts, tooth parts and plate type parts with high forming precision, saving material, and also suitable in heating extrusion industry if equipped heating system.
Metal stamping hydraulic press
