Bus WiFi Ad Equipment
SWS Super is the most powerful mobile advertising system over WiFi.
It push ads to 100% smart phones, tablets, laptops with WiFi-enabled once these mobiles connect freely 24/7/365.

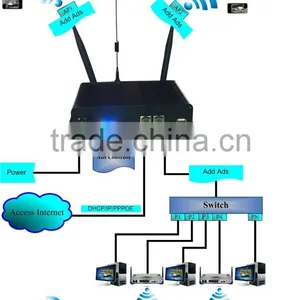

SWS Super is an industrial WiFi Advertising Server designed for buses. It has built-in 3G/4G for remote management and built-in 8GB storage for storing advertising contents. One WiFi module of SWS Super can connect more than 100 concurrent users. After users connect to the bus wifi and refresh the browser, they will be redirected to the advertising page. After viewing the ads, they can access the Internet. If you do not want to provide the users with free Internet, you can set the server to work as an Intranet.
Watch the video demo:
/watch?v=BPgnaiGYgmQ
pproach more potential customers
SWS Super Specifications
Product Parameter |
Contents |
|
|
Hardware |
Processor |
ARM 1GHz |
SDram |
DDR II 1Gbite |
|
Built-in flash |
512MB built-in |
|
Extended memory |
External 8GB |
|
|
Connection |
Connection amount |
1000-4000 |
Network connection |
LAN,3G/4G,WIFI |
|
|
Wi-Fi |
Frequency range |
2.4G(ISM frequency range) |
Modulation system |
OFDM: BPSK, QPSK, 16 QAM, 64QAM DSSS: DBPSK, DQPSK, CCK |
|
Working mode |
AP mode,Station mode, |
|
Speed supported |
11B rate:1,2,4,6,9,11Mbps; 11G rate:6,9,12,18,24,36,48,54Mbps; 11N rate:MCS0-6.5,MCS1-13,MCS2-19.5,MCS3-26,MCS4-39,MCS5-52,MCS6-58.5,MCS7-65 |
|
Frequency range scanning |
Support site scanning and communication channel detecting, signal real-time status display |
|
|
Radio frequency |
Radio-frequency power |
20dBm±2dBm, |
Radio-frequency band |
Support 5,10,20,HT40MHz |
|
Sensitivity |
-62dBm@150Mbps ,-65dBm@128Mbps ,-69dBm@78Mbps , -72dBm@54Mbps,-74dBm@48Mbps,-84dBm@12Mbps, -90dBm@6Mbps,-95dBm@1Mbps |
|
|
Safety |
Encryption type |
WPA |
Safety management |
Client-side isolation, hidden SSID,VLAN,VMSSID |
|
ACL access strategy |
ACL client-side MAC address filtering |
|
|
Network management |
Supervisor mode |
WEB,PC,Telnet configuration management |
Upgrading and backups |
Support remote online firmware upgrading; configuration file backups/ importing |
|
Reboot function |
Support remote software/ hardware reboot, Ping Watchdog |
|
|
Users management |
Bandwidth control |
Client IP-based or MAC Bandwidth control |
|
Interface management |
Ethernet interface |
Standard: Gigabit Ethernet adaptable network interface |
Antenna interface |
Two external N-Female antenna ports |
|
|
Electrical property |
Power source |
DC 12V |
Max power consumption |
6W |
|
|
Physical property |
Size |
Primary device shell size: 20.5*11.5*4.8cm |
Weight |
Primary gross weight: 0.74kg |
|
Product shell |
ABS, waterproof box( optional), rust-proof, sun block |
|
|
Environmental characteristics |
Operation temperature |
-20℃ to 70℃, Storage temperature: -40℃ to 80℃ |
Operating humidity |
10% to 90%RH non-condensing; Storage humidity: 5% to 90% RH non-condensing; |
|
Waterproof grade |
Waterproof box optional |
|
|
Lightning protection grade |
Built-in power supply and reticle lightning protection module, IEC61000-4-5 |
|
Accessories |
Antenna |
7dBi omni antenna, 15DBi directional antenna |
Module accessories |
GPS( optional) |
|
Others |
Power adapter |
|
Advantages
Interactive advertising communication with users
Unlimited advertising contents
Broadband limitable
Compatible with all WiFi-enabled Smart phones, including iPhone, Blackberry, Samsung, HTC, etc
Compatible with all WiFi-enabled laptops, including Ipad.
Advertising contents include image, animation, audio, video, website, etc, support online advertising and offline advertising
24/7/365 autonomous working
Ultra-range coverage
Friendly Web-based software, easy to operate
Easy to understand and set up
Real-time statistics report, device operator can access the statistics report of users.
Remote management, device operator can log in the software wherever to manage all the devices remotely.
Build your own special advertising webpage
Adjust image size according to the cellphone screen
4. Three Operating Modes
1. Push Advertisement
1) Upload advertising contents onto SWS
2) End users connect SWS via Wi-Fi
3) SWS pushes advertising contents on end users
4) End users need to read all advertising contents
5) End users connect internet freely
2. Redirect to advertising website
1) Configure advertising website redirected
2) End users connect SWS via Wi-Fi
3) SWS redirects browser to an advertising website
4) End users need to stay at the advertising website within redirect time
5) After Redirect time, end users can connect internet freely
3. Redirect to intranet advertising website
1) Upload a whole advertising website onto SWS
2) End users connect SWS via Wi-Fi
3) SWS redirects brower to the intranet advertising website
4) End user visit advertising website
Where wifi marketing solutions applied
Web-based management platform-----remote control
* Easy to understand and set up
* Real-time statistics report, device operator can examine the statistical report of ads
* Remote management, device operator can log in the software wherever to manage all the devices remotely
* Simultaneously manage multiple devices
Besides, we provide HTML Creators for making advertisng webpages. Through our HTML Creators, you can easily create different kinds of advertisng webpages( webpage with multi-layer, webpage with survey, webpage with questionnaire).

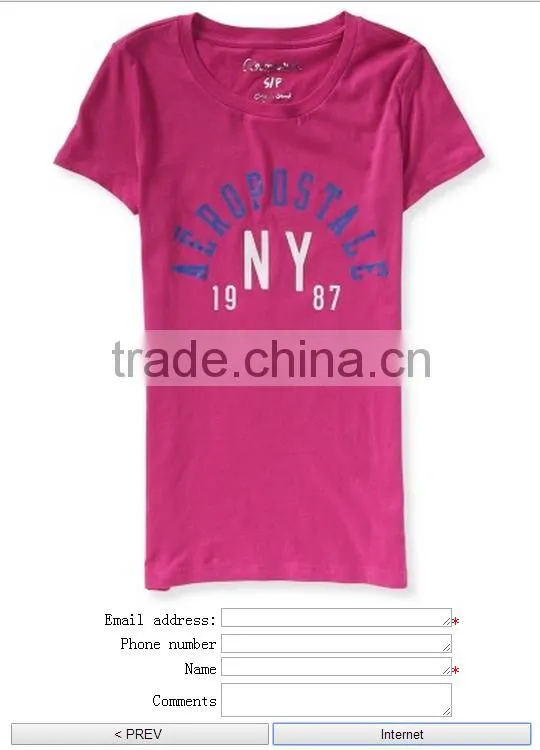

Ads page demos
Why choose Blueone?
~ Blueone products enjoy high quality and perfect after-sale services
~ Blueone provide quick shipment via various ways( DHL, UPS, FedEx, TNT, EMS, sea transportation, air transportation)
~ Blueone provide professional technical support and customized services
~ Free firmware upgrading
~ One year warranty
Payment methods
TT, Paypal, Western Union
Need any more details about our WiFi marketing solutions, please contact us freely. Your inquiry will get reply within 1 day. Thank you for kind cooperation!
