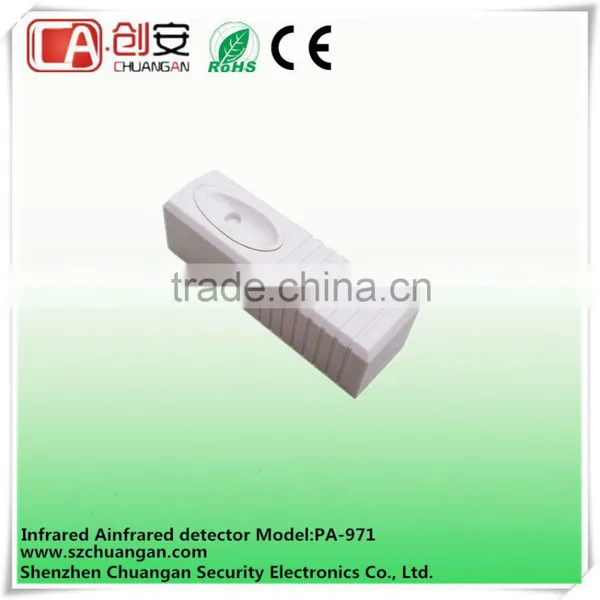

1.Vibration detector alarm PA-971
1.Sensitivity continuously adjustable
2.LED ON / OFF adjustable
3. Alarm delay selectable
4.RFI ( 20V / M-1GHz)
5.Using SMT process, anti-RFI, EMI interference
Technical parameters
Induction |
Photoelectric sensors |
Operating voltage |
9-16VDC |
Operating Current |
15mA |
Alarm contact |
NC, 12VDC, 100mA max |
Tamper contacts |
NC, 12VDC, 100mA max |
Alarm Time |
2.0s mi |
Warm-up time |
1 minutes |
RFI characteristics |
25V / m at 10Mhz to 1Ghz |
Operating temperature |
-5 ~ 55 º C |
Storage Temperature |
-30 ~ 60 º C |
Dimensions |
26 × 85 × 24mm |
Installation |
Unlimited |
Mounting height |
Unlimited |
Mounting and fixing
Unpack and install combination

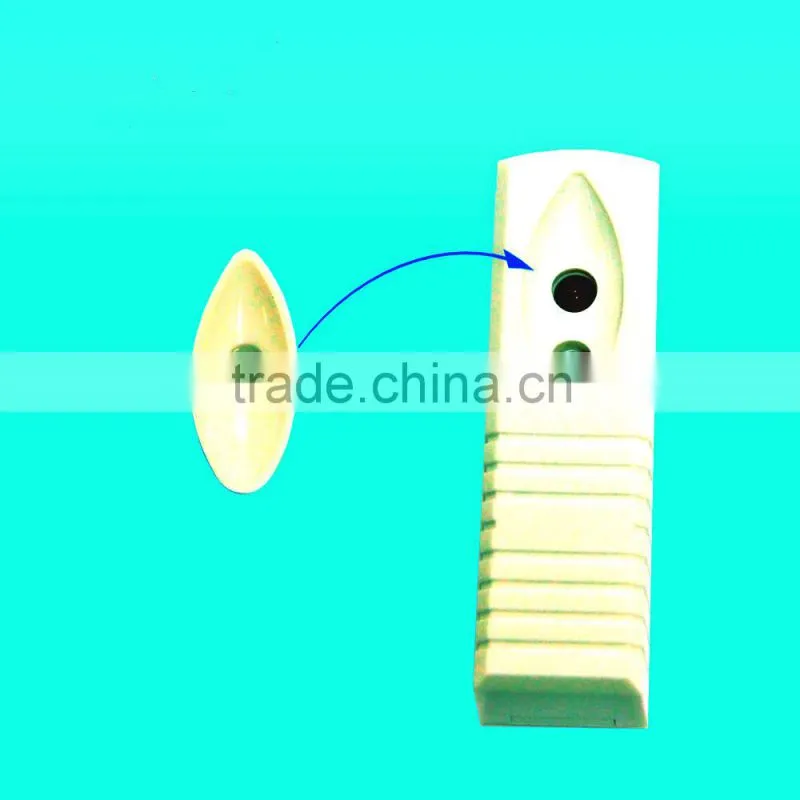

1, removal of the panel, insert the screw with a small community paper knife or screwdriver to cover the gap next (see Figure 1), gently pry the cover screws, loosen the screw, and then separated from the bottom surface of the lid (See Figure 2).
2, Connection: 12V - Power; TAMPER - Tamper / scissors; ALARM - signal lines.
3, Installation: Remove the bottom case RV971A detectors, fixed with screws to lay eyes on the ATM machine, or with a spring loaded in the "AB glue" to fix to the ATM machine.
