TKT-200E is specialized for small cargo van to keep fresh. It is powered by the battery of the vehicle, and has great advantages in environmental and highly efficient.
1.Designed for Cargo Van Up to 8 CBM(-5℃) & 12 CBM(0℃) to Keep Fresh;
2.Easy Installation & Operation;
3.Low Current, Long Time Running & High-Low Voltage Protection;
4.Environment Friendly;
5.36 Months Warranty Time After Delivery
TECHNICAL DATA: | |||
NO. |
Items |
Data |
|
1 |
Product Name |
Van Refrigeration Units-- TKT-200E |
|
2 |
Type |
Battery Driven |
|
3 |
Structure |
Roof Top Model / Cargo Van/Truck Body, Roof Top Mounted |
|
4 |
Compressor |
Electric Compressor, 15cc/r |
|
5 |
Controller |
Digital, In Cab |
|
6 |
Condenser |
Coil |
Copper Tube & Aluminum Fin |
Fan |
One Motor & One Fan (DC12V/24V) |
||
Dimension |
865*700*185 mm |
||
|
Battery Driven Compressor Inside |
||
Weight |
45KG |
||
7 |

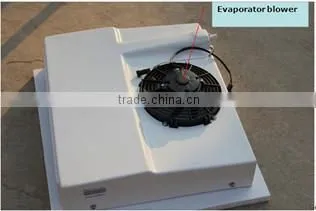

Evaporator |
Coil |
Copper Tube & Aluminum Fin |
Fan |
One Motor & One Fan (DC12V/24V) |
||
Air Flow |
1300 m3/h |
||
Dimension |
600*510*138 mm |
||
Weight |
17KG |
||
8 |
Defrost |
Automatic Hot Gas Defrost |
|
9 |
Refrigerant |
R134A, 1.1-1.2KG |
|
10 |
Current |
12V DC--60A / 24V DC--30A |
|
11 |
Installation Kits |
Rubber Hoses, Drain Water Hoses, Wiring Harness Etc |
|
12 |
Cooling Capacity (Ambient 38Deg/100.4F) |
-5Deg--1235 W(4212 BTU/ 1062 Kcal ), Apply Up to 8 m3, Fresh |
|
0Deg---1430 W(4880BTU / 1230 Kcal ), Apply Up to 12 m3,Fresh | |||
14 |
Total Weight |
75KG |
|
15 |
Recommend 4*100A.H Battery, Van Body Insulation Thickness 75mm-100mm |
||
Pictures:
Packaging in wooden crates / carton / iron racks .
The dimension of Condenser is 915X750X235MM ,the dimension of Evaporator is 650X600X210MM.
Shipping by sea.
36 Months Warranty Time after Delivery.
