Engine driven refrigeration unit for truck and trailer
TKT-200EF (Battery Driven)
Roof Top Model
TKT-200EF(Refrigeration Unit for Truck and Trailer) is specialized for small cargo van to keep frozen. Electric Van Freezer is powered by the battery of the vehicle, and has great advantages in environmental and highly efficient.
s Designed for Cargo Van Up to 19CBM(0 °C) & 7CBM(-20°C) to Keep Frozen;
s Easy Installation & Operation;
s Low Current, Long Time Running & High-Low Voltage Protection;
s Environment Friendly;
s 36 Months Warranty Time After Installation;
Technological data of refrigeration unit for truck and trailer:
NO. |
Items |
Data |
|
1 |
Product Name |
Electric Van Freezer -- TKT-200EF |
|
2 |
Type |
Battery Driven |
|
3 |
Structure |
Roof Top Model |
|
4 |

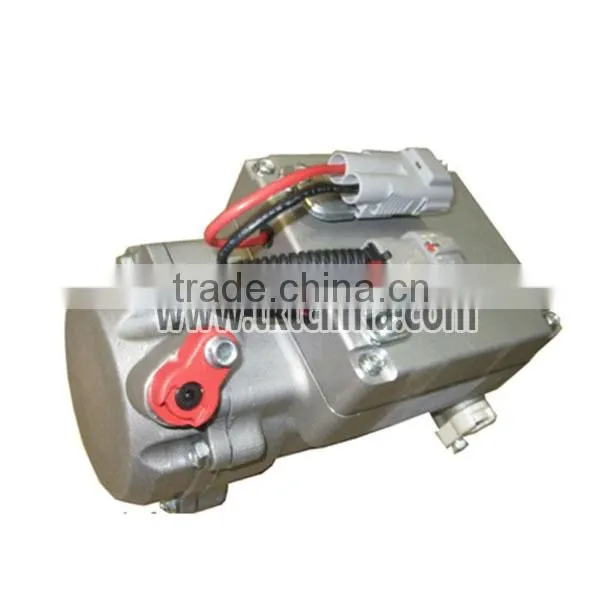

Compressor |
Electrical Compressor, 15cc/r |
|
5 |
Voltage |
DC 12V / DC 24V |
|
6 |

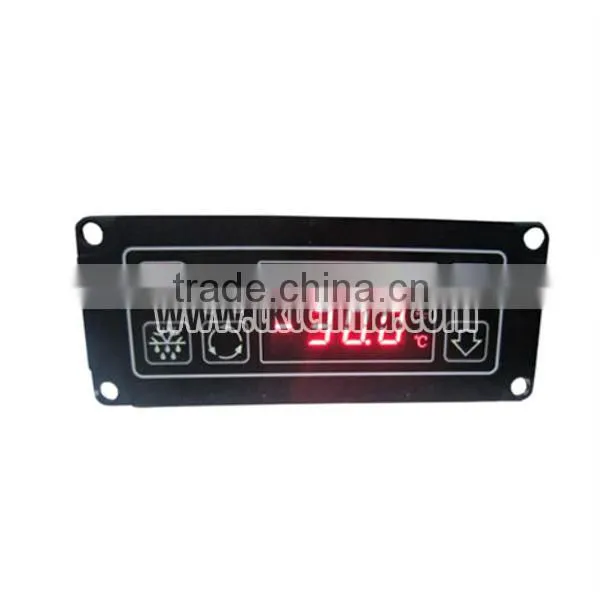

Controller |
Digital, In Cab |
|
7 |

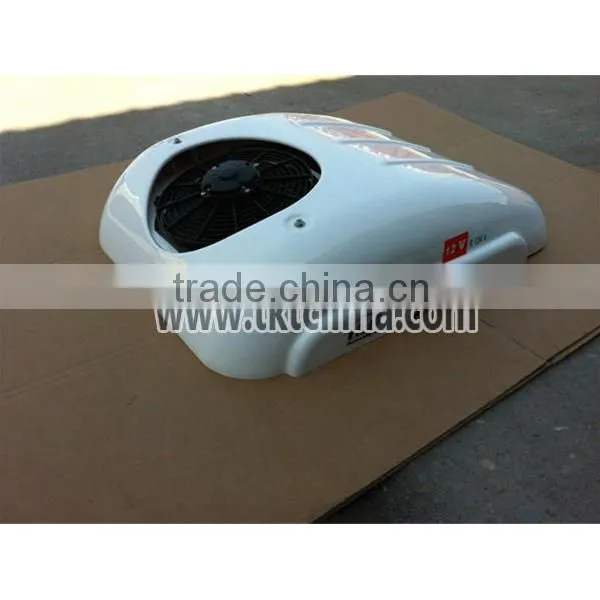

Condenser |
Fan |
One Motor & One Fan (DC12V/24V) |
Coil Type |
Copper Tube & Aluminum Fin |
||
Dimension |
865*700*185 mm |
||
Weight |
50 KG |
||
8 |

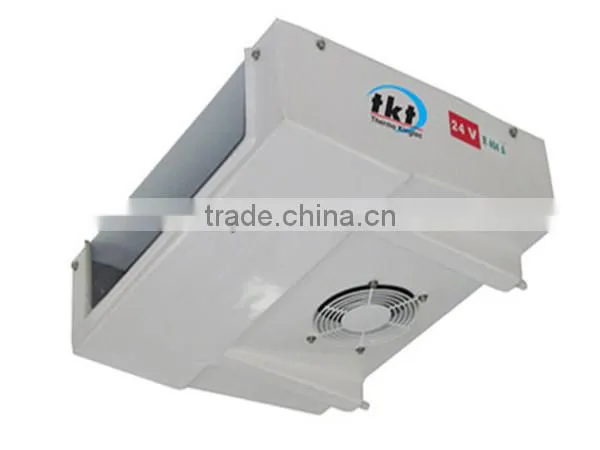

Evaporator |
Fan |
One Motor & One Fan (DC12V/24V) |
Coil Type |
Copper Tube & Aluminum Fin |
||
Air Flow |
1300 m3/h |
||
Dimension |
600*510*138 mm |
||
Weight |
17KG |
||
9 |
Defrost |
Automatic Hot Gas Defrost |
|
10 |
Refrigerant |
HFC-404A, 1.1-1.2KG |
|
11 |
Installation Kits |
Rubber Hoses, Drain Water Hoses, Wiring Harness etc |
|
12 |
Total Weight |
75 KG |
|
13 |
Cooling Capacity (Ambient 38Deg/100.4F) |
-20Deg--1250 W (4265 BTU/ 1075 Kcal ), Apply Up to 7 m3, keep FROZEN |
|
0Deg---2800 W(9553 BTU / 2410 Kcal ), Apply Up to 19 m3, keep FRESH | |||
14 |
Optional: 110V/220V/380V Standby Units is Acceptable; |
||

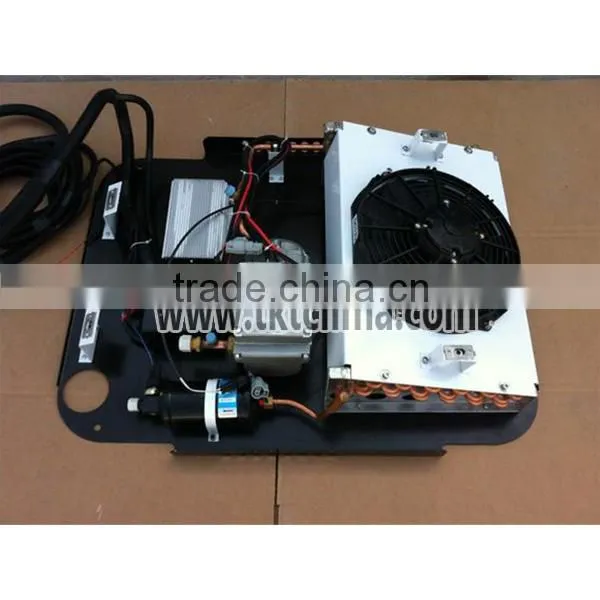

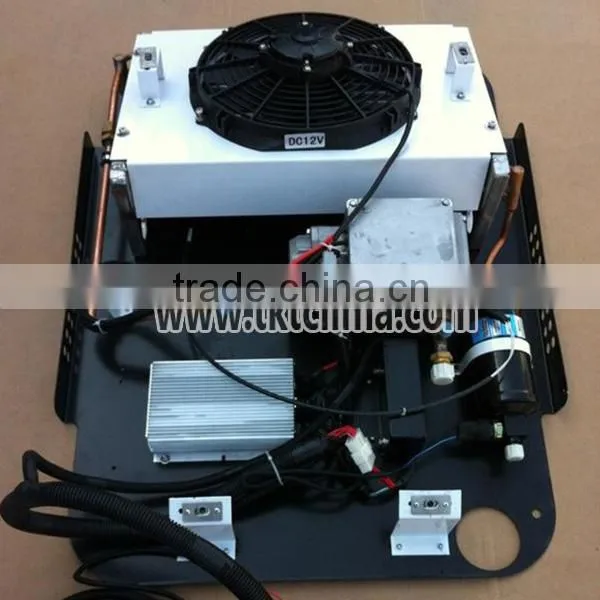

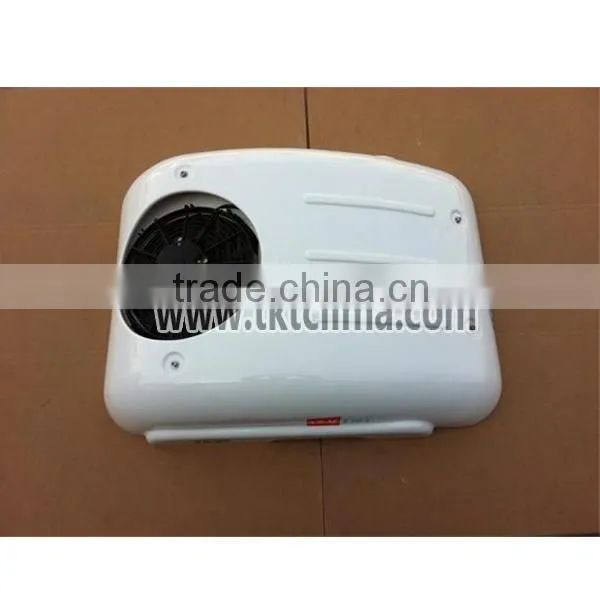

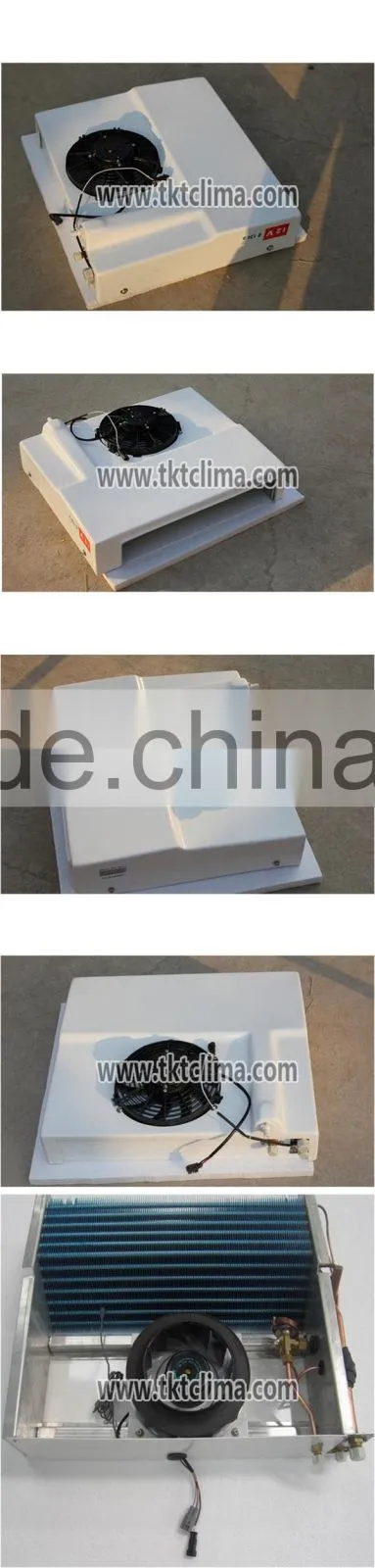

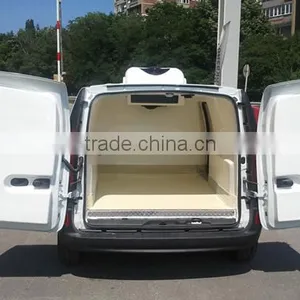

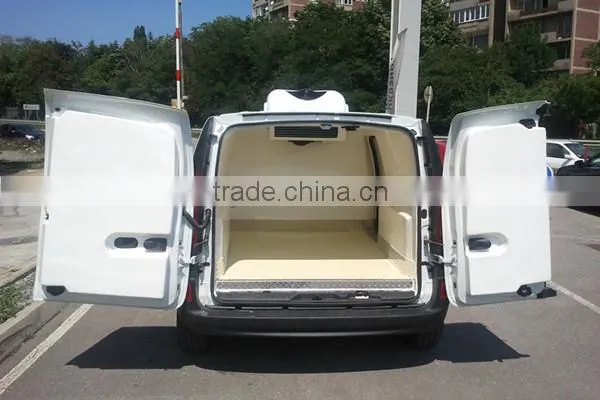

Photos of refrigeration unit for truck and trailer:
Pre-sale:
(1) Professional suggestions (model selection ,technical solution , installation training…)
(2) Device model choice (recommend the best product according to vehicle model, temperature rating, the container volume…)
(3) 24 hours service.
(4) Welcome to visit our factory and production line anytime.
(5) Introduce the company file, product categories and production process.
Sale:
(1) Update the production scheduling in time.
(2) Quality supervision.
(3) Product acceptance.
(4) Shipping on time.
After-sale:
(1) Installation guide for free.
(2) within the warranty period: spare parts are provide freely.
(3) Technical support the whole using life.
In China, we have been manufacturing high quality products as an OEM to Yutong Bus and CIMC company since 1998. We are the most influential manufacturer of bus and refrigerated truck in China. Until now, our products have begun to be introduced to 65 countries in Europe, Asia, North America, South America and Africa, earning high reputation and sustainable growth in all markets.
Q:Why choose our product?
A:TKT, as the first and leading manufacturer of bus air conditioner and truck refrigeration in China, has devoted to producing reliable, efficient and economical bus air conditioner and truck refrigeration for the world.
Q:What are your products certified ?
A:All products have CE and ISO9001:2008 identification.
Q:How about installation training?
A:Professional engineers training can be offered.
Q:How long is your products warranty?
A:36 months warranty is available.
Q:How many countries have your products been exported to?
A:Until now, our products have begun to be introduced to 65 countries in Europe, Asia, North America, South America and Africa, earning high reputation and sustainable growth in all markets.
