Front mounted 12 volt truck refrigeration system
TKT-300C (-5°C to 25°C)
TKT-300C is specialized for small refrigerated truck body to keep fresh, powered by the engine of the vehicle, and it has great advantages in fuel saving, environmental and highly efficient.
*Special Design for Refrigerated Truck Body Up to 21CBM(0 °C) & 18CBM(-5°C) to Keep Fresh;
*Stream Line Design to Apply All Kinds of Truck Body;
*Big Cooling Capacity & Reliable Performance to Stand Against Hot & Dusty Climatic Condition;
*Easy Installation & Operation;
*Environment Friendly;
*36 Months Warranty Time After Installation;
Technological data of front mounted 12 volt truck refrigeration system :
TECHNICAL DATA | |||
NO. |
Items |
Data |
|
1 |
Product Name |
Truck Refrigeration – TKT-300C |
|
2 |
Type |
Vehicle Engine Driven Compressor |
|
3 |
Structure |
Truck Body, Front Mounted Installation |
|
4 |

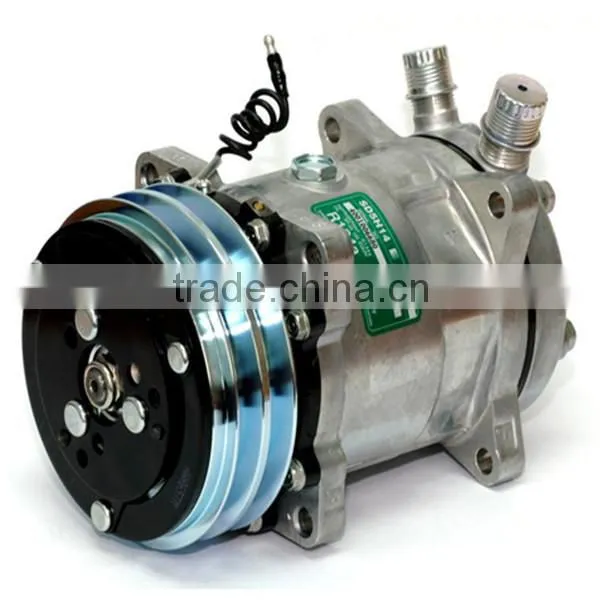

Compressor |
SD5H14 138CC/R |
|
5 |

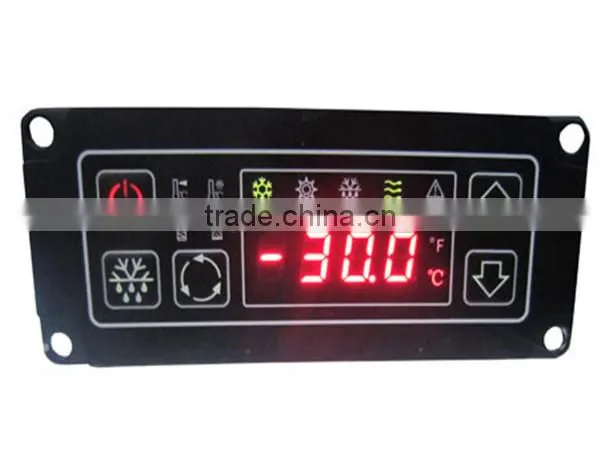

Controller |
Digital, In Cab |
|
|
6 |
Condenser |
Coil |
Copper Tube & Aluminum Fin |
Fan |
Two Motors & Two Fans (DC12V/24V) |
||
Dimension |
924*430*295 mm |
||
Weight |
42KG |
||
7 |

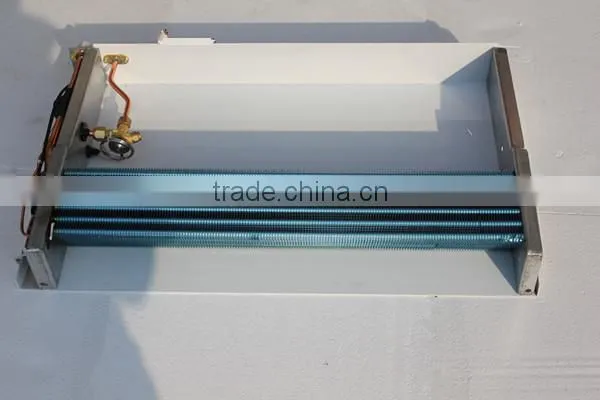

Evaporator |
Coil |
Copper Tube & Aluminum Fin |
Fan |
Two Motor & Two Fan (DC12V/24V) |
||
Air Flow |
2900 m3/h |
||
Dimension |
850*510*138 mm |
||
Weight |
26KG |
||
8 |
Defrost |
None |
|
9 |
Refrigerant |
HFC-134A, 1.4-1.5KG |
|
10 |
Installation Kits |
Rubber Hoses, Drain Water Hoses, Wiring Harness Etc |
|
11 |
Cooling Capacity (Ambient 38°C/100.4F) |
-5°C---2470 W(8424 BTU/ 2125 Kcal), Apply Up to 17 m3, Frozen & Fresh |
|
0°C---2990 W( 10200 BTU/2572 Kcal ), Apply Up to 22 m3, Fresh | |||
12 |
Total Weight |
75KG |
|

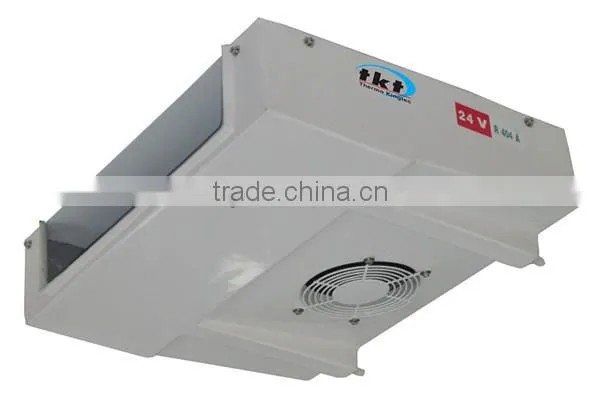

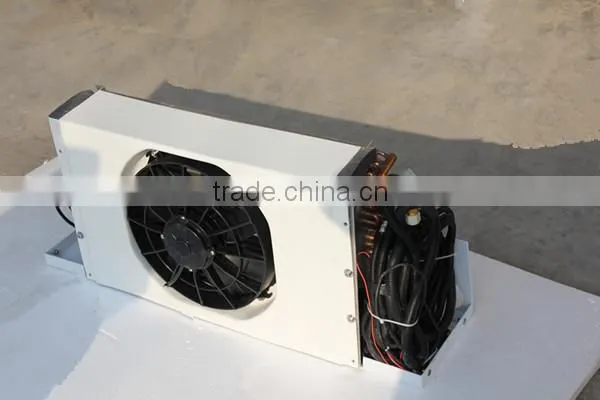

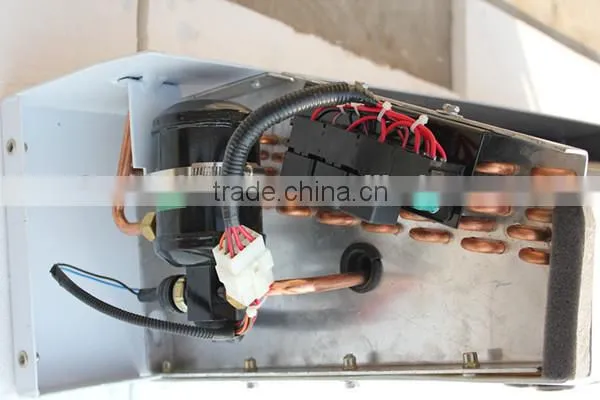

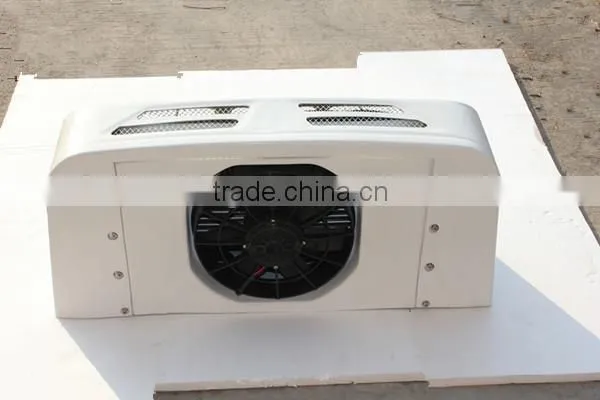

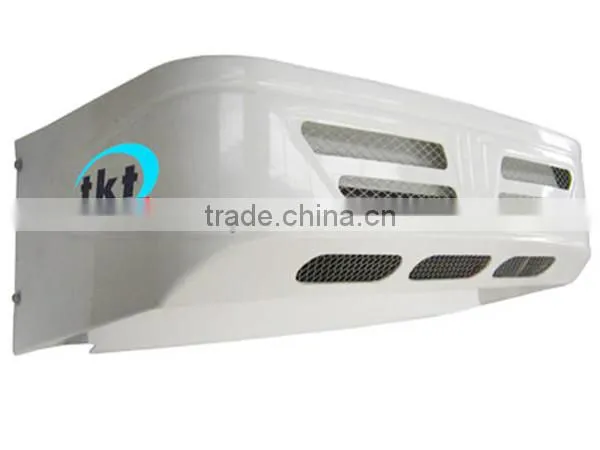

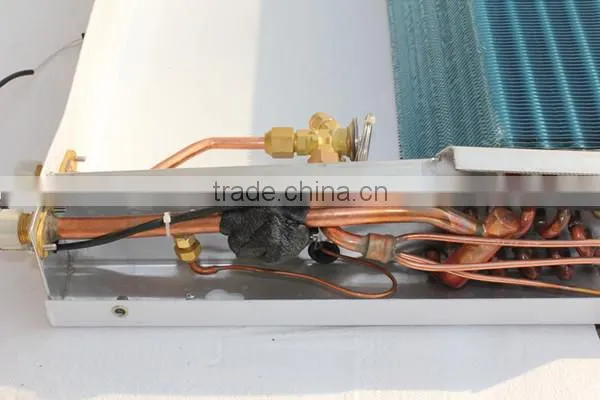

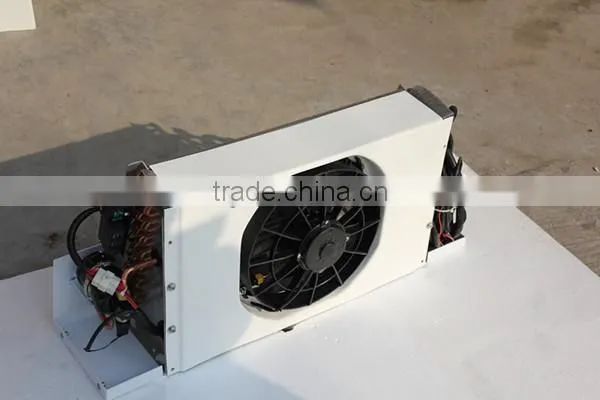

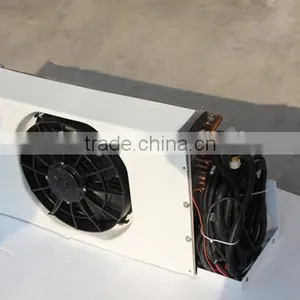

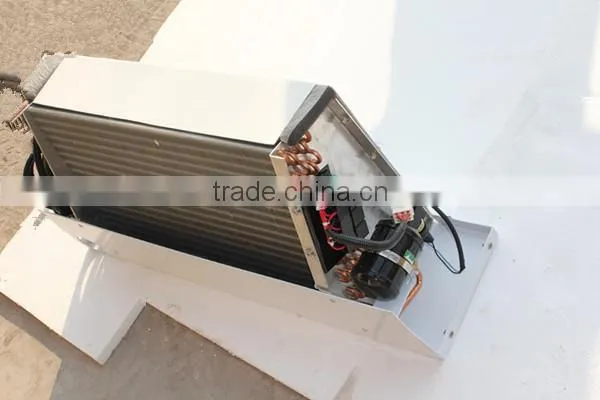

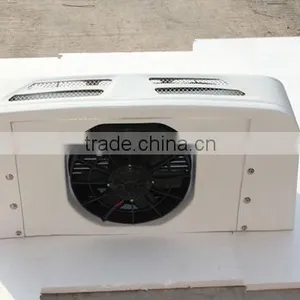

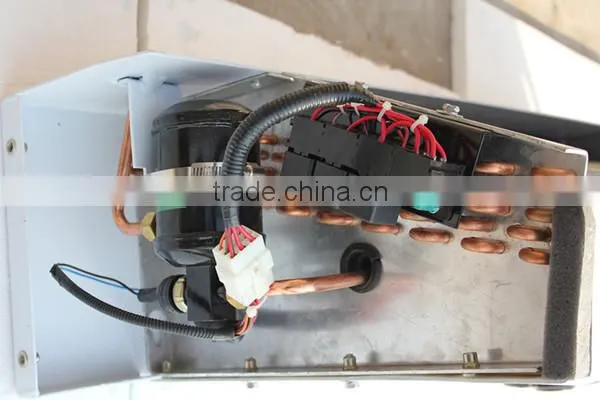

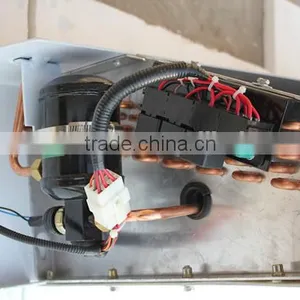

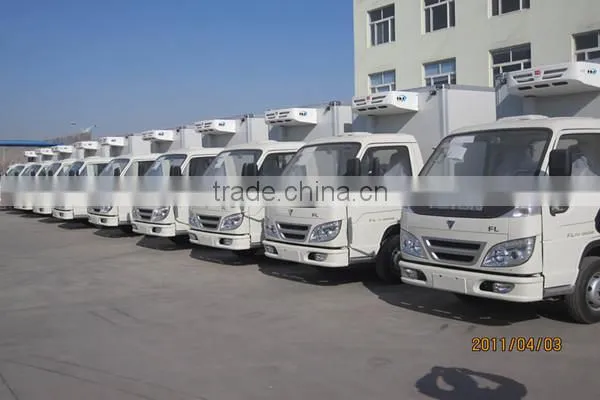

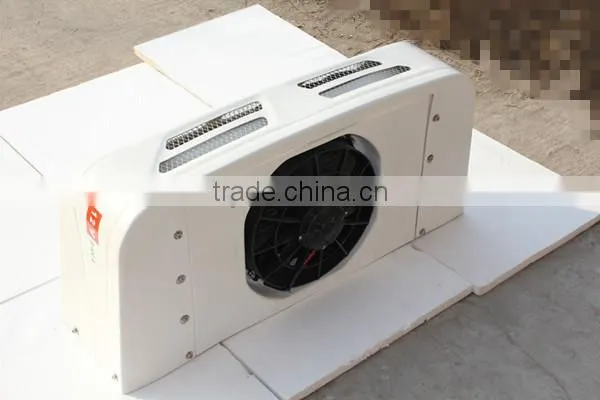

Photos of front mounted 12 volt truck refrigeration system :
Pre-sale:
(1) Professional suggestions (model selection ,technical solution , installation training…)
(2) Device model choice (recommend the best product according to vehicle model, temperature rating, the container volume…)
(3) 24 hours service.
(4) Welcome to visit our factory and production line anytime.
(5) Introduce the company file, product categories and production process.
Sale:
(1) Update the production scheduling in time.
(2) Quality supervision.
(3) Product acceptance.
(4) Shipping on time.
After-sale:
(1) Installation guide for free.
(2) within the warranty period: spare parts are provide freely.
(3) Technical support the whole using life.
In China, we have been manufacturing high quality products as an OEM to Yutong Bus and CIMC company since 1998. We are the most influential manufacturer of bus and refrigerated truck in China. Until now, our products have begun to be introduced to 65 countries in Europe, Asia, North America, South America and Africa, earning high reputation and sustainable growth in all markets.
Q:Why choose our product?
A:TKT, as the first and leading manufacturer of bus air conditioner and truck refrigeration in China, has devoted to producing reliable, efficient and economical bus air conditioner and truck refrigeration for the world.
Q:What are your products certified ?
A:All products have CE and ISO9001:2008 identification.
Q:How about installation training?
A:Professional engineers training can be offered.
Q:How long is your products warranty?
A:36 months warranty is available.
Q:How many countries have your products been exported to?
A:Until now, our products have begun to be introduced to 65 countries in Europe, Asia, North America, South America and Africa, earning high reputation and sustainable growth in all markets.
