Deep freezer refrigerator for truck van
TKT-800F (Engine Driven)
Front Mounted
TKT-800F is specialized for mid size truck body to keep frozen, powered by the engine of the vehicle, and Stand-by Units is Optional. It has great advantage in Fuel Saving, Environmental and Highly Efficient.
s Exclusive Design for Refrigerated Truck Body Up to 34CBM(-20 °C) & 44CBM(0°C) to Keep Frozen;
s Stream Line Design to Apply All Kinds of Truck Body;
s Big Cooling Capacity & Reliable Performance to Stand Against Hot & Dusty Climatic Condition;
s Easy Installation & Operation;
s Environment Friendly;
s 36 Months Warranty Time After Delivery.
Technological data of deep freezer refrigerator:
TECHNICAL DATA | |||
NO. |
Items |
Data |
|
1 |
Product Name |
Truck Refrigeration--TKT-800F(Frozen) |
|
2 |
Type |
Vehicle Engine Driven |
|
3 |
Structure |
Truck Body, Front Mounted |
|
4 |

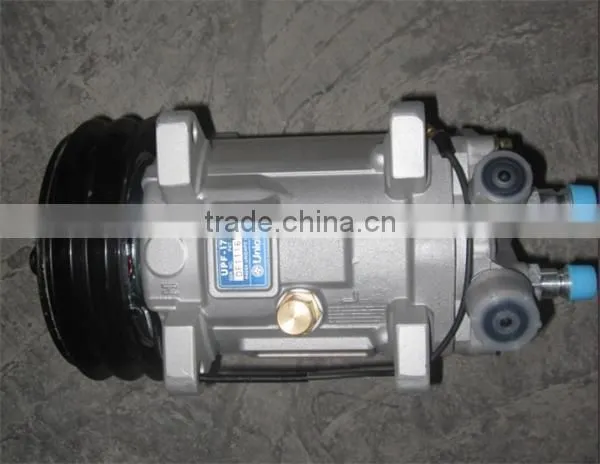

Compressor |
Jap UPF170 |
|
5 |

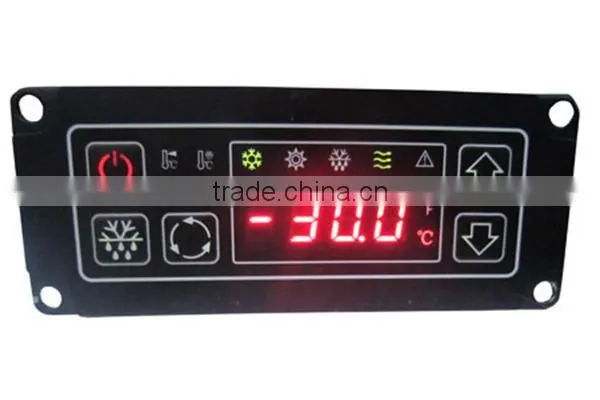

Controller |
Digital, In Cab |
|
6 |
Condenser |
Coil |
Copper Tube & Aluminum Fin |
Fan |
Three Motors & Three Fans (DC12V/24V) |
||
Dimension |
1265*555*415 mm |
||
Weight |
63KG |
||
7 |
Evaporator |
Coil |
Copper Tube & Aluminum Fin |
Fan |
Three Motors & Three Fans (DC12V/24V) |
||
Air Flow |
3120 m3/h |
||
Dimension |
1016*635*230 mm |
||
Weight |
34KG |
||
8 |
Defrost |
Automatic Hot Gas Defrost |
|
9 |
Refrigerant |
HFC-404A, 3.0-3.2KG |
|
10 |
Installation Kits |
Rubber Hoses, Drain Water Hoses, Wiring Harness Etc |
|
11 |
Cooling Capacity (Ambient 38Deg/100.4F) |
-20Deg--4160 W(14190BTU/ 3580 Kcal ), Apply Up to 34 m3, Frozen |
|
0 Deg---7475W(25500 BTU/ 6430 Kcal ), Apply Up to 44 m3, Frozen | |||
12 |
Total Weight |
116KG |
|
|
Optional: A. 110V/220V/380 Stand By Units is Acceptable; B. Heating Performance is Acceptable; |
||

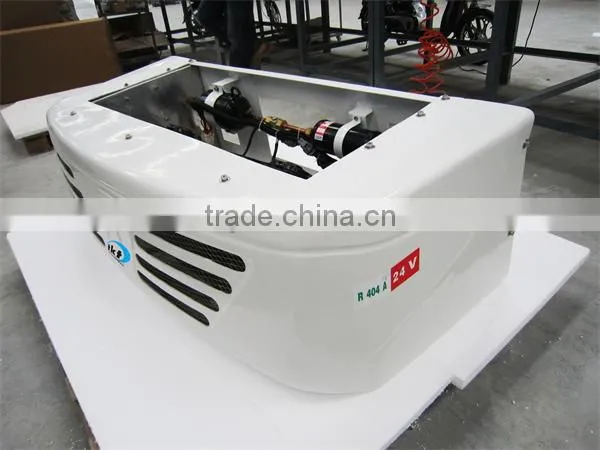

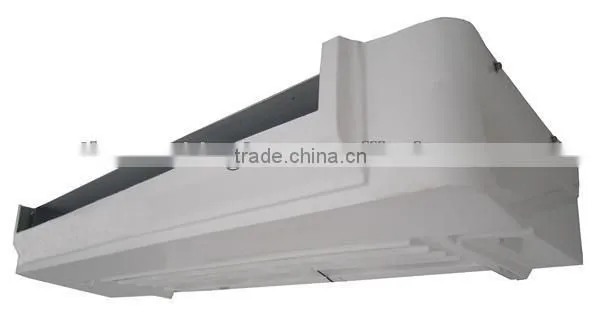

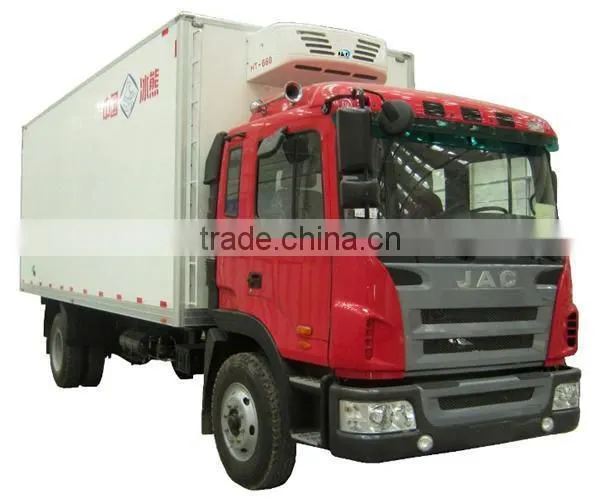

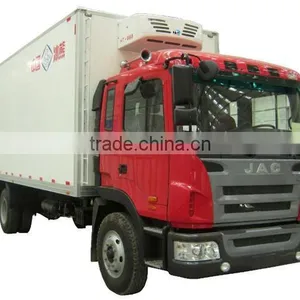

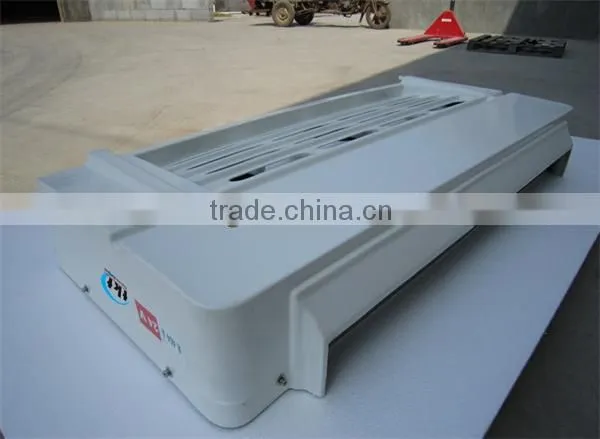

Photos of deep freezer refrigerator:
Pre-sale:
(1) Professional suggestions (model selection ,technical solution , installation training…)
(2) Device model choice (recommend the best product according to vehicle model, temperature rating, the container volume…)
(3) 24 hours service.
(4) Welcome to visit our factory and production line anytime.
(5) Introduce the company file, product categories and production process.
Sale:
(1) Update the production scheduling in time.
(2) Quality supervision.
(3) Product acceptance.
(4) Shipping on time.
After-sale:
(1) Installation guide for free.
(2) within the warranty period: spare parts are provide freely.
(3) Technical support the whole using life.
In China, we have been manufacturing high quality products as an OEM to Yutong Bus and CIMC company since 1998. We are the most influential manufacturer of bus and refrigerated truck in China. Until now, our products have begun to be introduced to 65 countries in Europe, Asia, North America, South America and Africa, earning high reputation and sustainable growth in all markets.
Q:Why choose our product?
A:TKT, as the first and leading manufacturer of bus air conditioner and truck refrigeration in China, has devoted to producing reliable, efficient and economical bus air conditioner and truck refrigeration for the world.
Q:What are your products certified ?
A:All products have CE and ISO9001:2008 identification.
Q:How about installation training?
A:Professional engineers training can be offered.
Q:How long is your products warranty?
A:36 months warranty is available.
Q:How many countries have your products been exported to?
A:Until now, our products have begun to be introduced to 65 countries in Europe, Asia, North America, South America and Africa, earning high reputation and sustainable growth in all markets.
