6MM Brake Wire Rope Direct Sale Manufacture

6MM Brake Wire Rope Direct Sale Manufacture thumbnail-1
6MM Brake Wire Rope Direct Sale Manufacture photo-1
US$ 0.3 - 12 MOQ: 5000 Meters
Key Specifications
Get Latest Price
Steel Grade:
Q195-Q235
Standard:
AISI, ASTM, BS, DIN, GB, JIS
Wire Gauge:
6mm
Contact Supplier Request Quote Chat Now
Jiangyin Gaosheng Metal Manufacture Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai for 6MM brake wire rope direct sale manufacture
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Steel Grade Q195-Q235
Standard AISI, ASTM, BS, DIN, GB, JIS
Wire Gauge 6mm
Place of Origin Jiangsu, China
Type Other, 6mm wire rope
Application Rope
Alloy Or Not Non-alloy
Special Use Free Cutting Steel
Model Number 6x37
Brand Name Gaosheng, GAOSHENG
Product Description

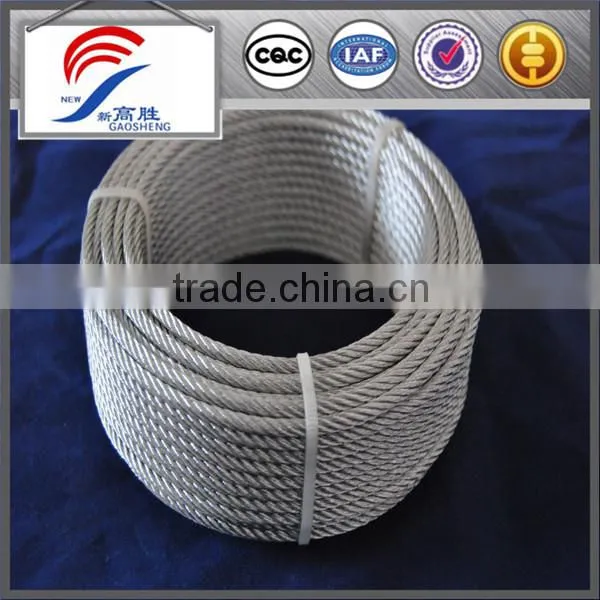

6MM brake wire rope direct sale manufacture


1. Tensile strength：1570,1670,1770,1870,1960MPa

2. Size: 1mm~30mm

3. Standard: GB, DIN, AISI, ISO, JIS, BS, ASTM

4. Certification: ISO9001,SGS

1.Diameter
1.0mm,1.2mm,1.5mm
nstruction
1*7,7*7,7*19,etc
3.material
stainless steel or galvanized steel
4.MOQ
5000pcs
5.head
dia6*7mm
6.kits include
steel wire ,out casing ,end accessories
7.length
1M,2M or more ,customize available
8.end parts of fittings
a large selection of end fittings, including eye bolts, links, springs, hooks, thimble, clips, stops, ball ,ball shanks ,sleeve ,stamped eye, handles, etc
9.Lead time
7days if there were enough material in stock
10.application
for bike
mountain bike
road bike
motorcycle bike
BMX bike
throttle machine
clutch machine use
baby carriage
wheel chair
11.advantage
A quality Inner brake cable for effective and responsive braking with a longer length for use with tandem bikes.
These brake cables can range from having a 1mm to 10mm core with a respective conduit to suit, lined or unlined.
These brake cables can range from having a 1mm to 10mm core with a respective conduit to suit, lined or unlined.
we can manufacture to sample brake cables or drawings of brake cables. As we stock a large number parts we are able to custom design your requirements to your application, also having an in house turn parts facility we can modify stock fittings or manufacture from raw material to suit your needs.
With our in house state of the art testing facility we can test pull brake cables to your required specification.
12.application
-automotive
- motorbikes
- aeronautics
- gardening products
- bathroom fixtures
- medical
- baby care
- nautical
- earth moving machinery
Products Detail

1.stainless steel :
providing good corrosion resistance and strength comparable to galvanized carbon steel grades.

6MM brake wire rope direct sale manufacture

2.galvanized steel:
Zinc coated carbon steel offers some corrosion resistance. It remains ductile over long periods of working. Usually higher break strengths than stainless steels.

Diameter
construction
Minimum Breaking load(N)
1.0mm
1*19
0.495
950(95KG)
7*7
0.393
650(65KG)
1.2mm
1*19
0.713
1440(144KG)
7*7
0.566
950(95KG)
1.5mm
1*19
1.114
2200(220KG)
7*7
0.884
1500(150KG)
1.8mm
1*19
1.604
3200(320KG)
7*7
1.273
2100(210KG)
2.0mm
1*19
1.98
3900(390KG)
7*7
1.527
2650(265KG)
2.4mm
1*19
2.851
5650(565KG)
7*7
2.264
3800(380KG)
2.5mm
1*19
3.094
6100(610KG)
7*7
2.381
4100(410KG)
3.2mm
1*19
4.024
6850(658KG)
7*7
3.901
6800(680KG)
3.8mm
1*19
5.675
9650(965KG)
5.502
9600(960KG)
4.0mm
7*19
6.609
12500(1250KG)
4.2mm
7*7
6.933
13000(130KG)
4.5mm
7*7
7.958
13500(1350KG)
4.8mm
7*19
8.778
15300(1530KG)
5.0mm
7*19
8.716
23900(2390KG)
Packing & Delivery
Packing Details :6MM brake wire rope direct sale manufacture can pack with wooden reel, coil, spooland other or according customer's length . Each Reels will be packed with Plywooden pallet to avoid any damages in the transit

Delivery Details : 3-30 days after order of steel wire rope
Our Certifications
Our Company

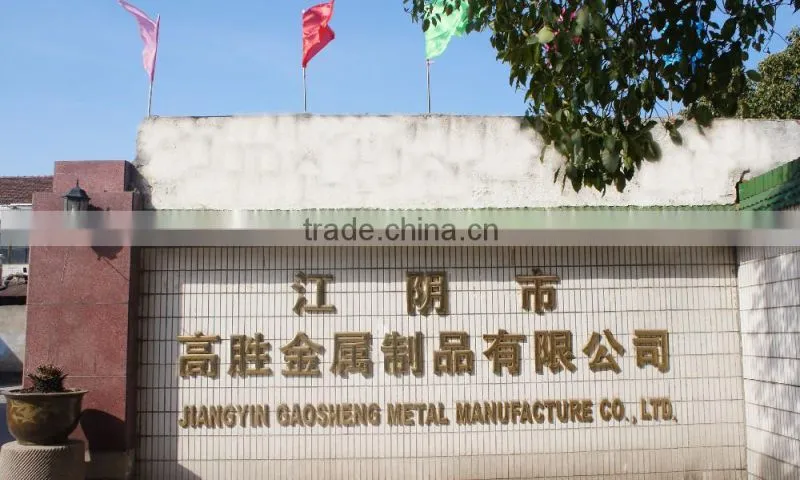

Our company


Our factory


Customer Photo

we are looking forward to cooperating with you !
