HDMI to fiber optic converter

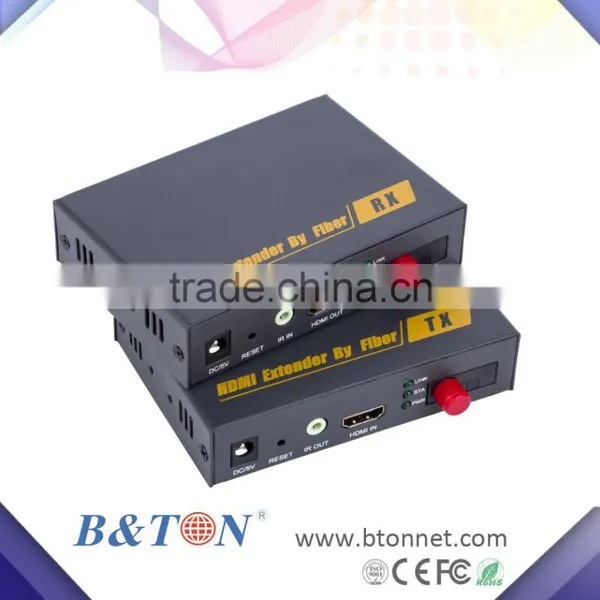

BT-DT200 is a perfect solution for transmitting HDMI audio and video through the fiber, the set of device includes a sender of BT-DT200T and a receiver of BT-DT200R. Our products transmit the HD video over optical fiber, which making the images clearer as well as the transmission more stable. At the same time, the product has the built-in IR remote control function.
Specification:
>HDMI 1.3/HDCP1.1 & 1.2
>Both Optic-fiber transmission and Ethernet Transmission
>Support point-to-point mode, one point-to-many mode and cascaded transmission mode.
>built-in IR remote control function, you can control the set-top box at the receiving site using the IR remote control.
>Pure hardware design, just plug and play, no need to install extra software.
Video Parameter |
|
Video Resolution |
640X480 @ 60fps 800X600 @ 60fps |
1024X600 @ 60fps 1024X768 @ 60fps | |
1152X864 @ 60fps 1280X600 @ 60fps | |
1280X720@ 60fps 1280X768@ 60fps | |
1280X800@ 60fps 1280X960@ 60fps | |
1280X1024@ 60fps 1440X1050@ 60fps | |
1440x900 @ 60fps 1600x900 @ 60fps | |
1660x1200 @ 60fps 1680x1050 @ 60fps | |
1920x1080 @ 60fps 1920 x1200 @ 60fps | |
Audio |
32kHz, 44.1kHz and 48kHz |
Infrared Support |
38KHz; NEC code |
HDMI Version |
HDMI 1.3 |
HDCP Version |
HDCP 1.2 |
Other Parameters |
|
Power input |
AC input: 100V - 240V (50 - 60Hz) |
Max Power Consumption |
BT-DT200T: 5W |
BT-DT200R: 5W | |
Size (L-W-H) |
110×80×30 mm |
Net Weight |
456g*2pcs |
Operating Temperature/Humidity |
0℃ - 70℃ / 10% - 80%RH(no condensation) |
Storage Temperature/Humidity |
-10℃ - 80℃/ 5% -90% RH(no condensation) |

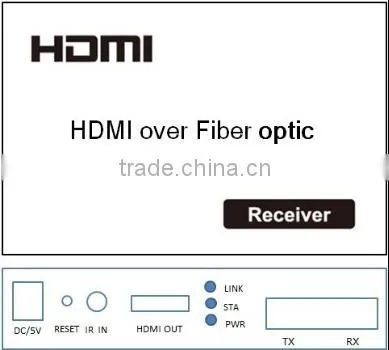

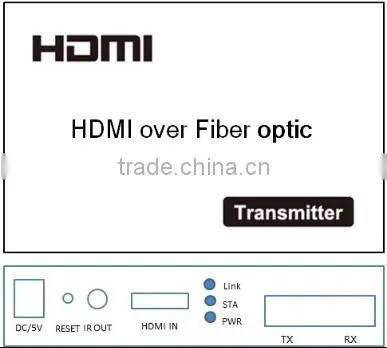

Panel Description
2.1 Front Panel
HDMI TX |
HDMI RX |
|
HDMI PORT |
Video Input |
Video Output |
IR PORT |
IR Input |
IR Output |
Fiber Port SC |
Optic-fiber Data Transmission |
|
RESET KEY |
Hold down the key for 8 seconds after power on, the model will restore default settings |
|
2.2 Indicator led.
Indicator led |
Status |
|
FX |
Light On |
The transmission rate is correct |
Light Off |
The transmission rate is not correct |
|
Link act |
Light On |
Fiber Link up |
Flash |
Packets of data are transmitting in the indicating port |
|
Dpx |
Light On |
In the State of full-duplex |
Light Off |
In the State of half-duplex |
|
Shenzhen Bton Technology Co., Ltd is one of the powerful and high-tech companies specialized in researching, manufacturing and marketing of optical and fiber communication technologies. Our major products are media converter, digital video optical transmission systems and Optical Transceiver Modules.
