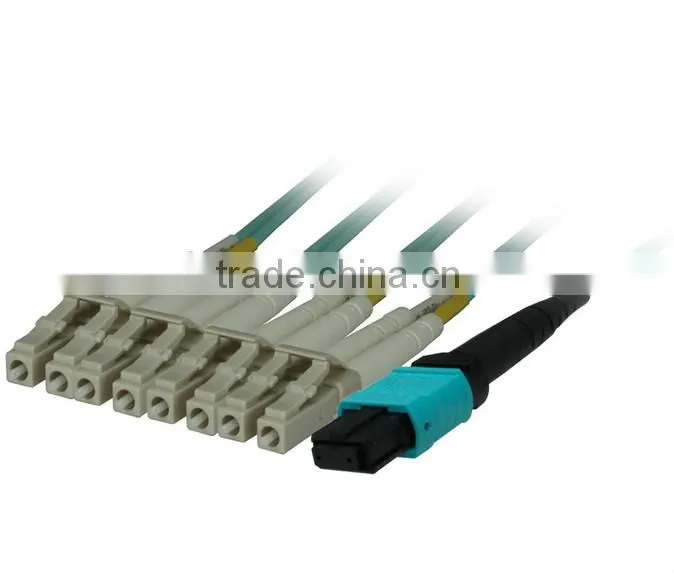

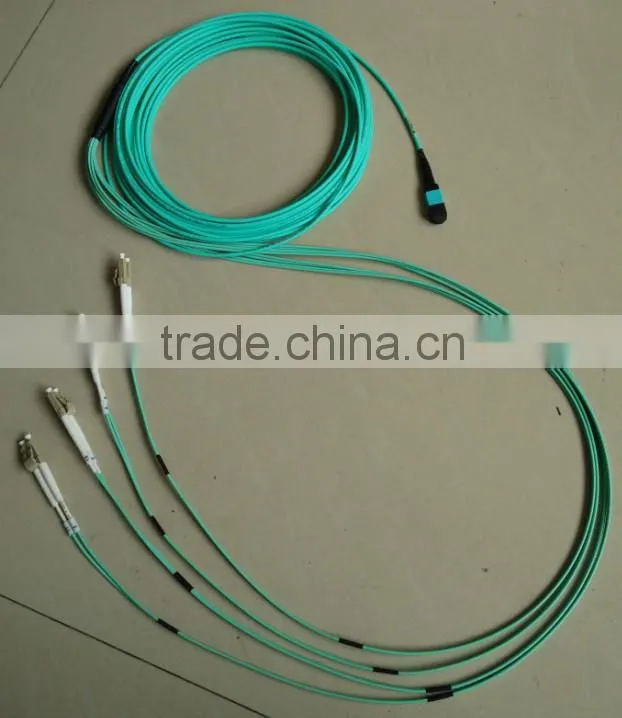

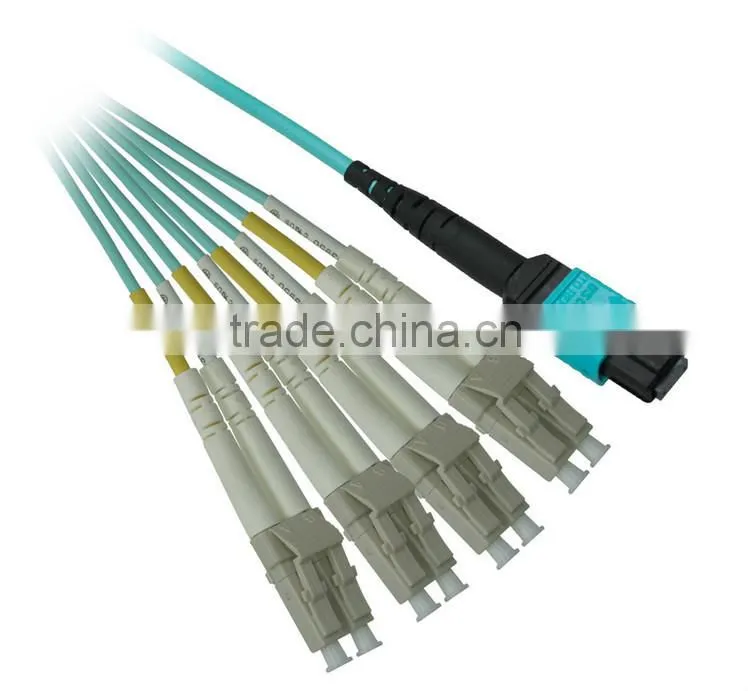

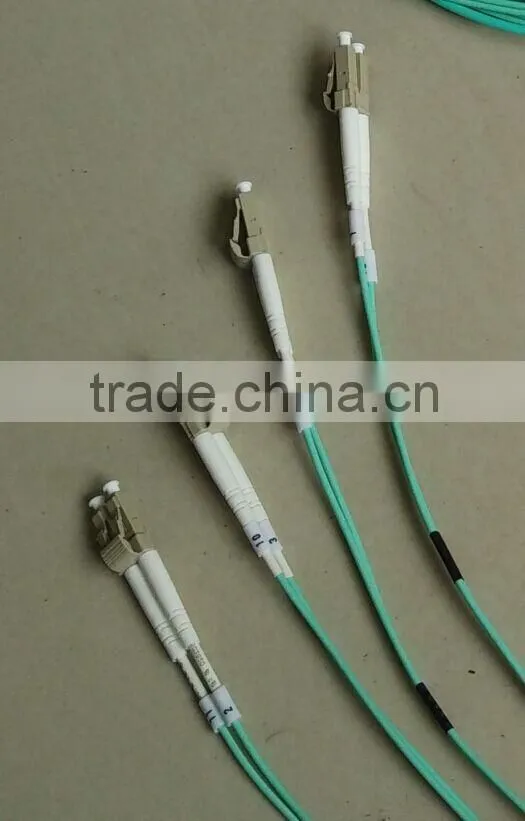

MTP to LC Single Mode Fan-out/Breakout Fiber Optic Cable Assembly
We supply MTP to LC single mode fan-out/breakout cables assemblies, and MPO to LC fiber optic break out cables. These are available in Female or Male MTP or MPO connectors. Options are MPO-LC, MPO-LC/APC, MTP/APC-LC, MTP/APC-LC/APC. There are many configurations to choose from. The total cable length, the fan length, the diameter of the fan tube can be 2.0mm, 900um, .9mm, 3.0mm or even a bare fiber or bare ribbon configuration. A UPC,APC,PC single mode or multimode ribbon cable assemblies. The MPO/MTP single mode fan-out, breakout cables are ideal connection to patch panels and data distribution routing. These can be made with 12 fiber MTP connectors, 24 Fiber MTP connectors, 48 Fiber MTP connector variations. We use USConec MTP fiber optic connectors for all of our MTP and MPO terminations so that the highest performance is accomplished. Many additional options and combinations are available. All multi fiber optic cables are customizable.
We supply MTP / MPO Fan-out cables, also known as MTP Breakout fiber optic cables. These cables are completely customizable in virtually any configuration or length.
MTP Breakout cable options include:
MTP connectors options:
4-Fiber, Single-mode APC Ferrule
8-Fiber, Multimode Ferrule
8-Fiber, Single-mode APC Ferrule
8-Fiber, SM MT Elite® Single-mode APC Ferrule
12-Fiber, Multimode Ferrule
12-Fiber, MM MT Elite®, Multimode
12-Fiber, Single-mode APC Ferrule
12-Fiber, MT Elite® Single-mode APC Ferrule
24-Fiber, Multimode Ferrule
24-Fiber, MM MT Elite®, Multimode
48-Fiber, Multimode Ferrule
MTP Polish type options:
Flat Polish (typical for Multimode connectors)
APC, Angled (typical for Single-Mode connectors)
We supply MTP / MPO Fan-out cables, also known as MTP Breakout fiber optic cables. These cables are completely customizable in virtually any configuration or length.
MTP Breakout cable options include:
MTP connectors options:
4-Fiber, Single-mode APC Ferrule USConec
8-Fiber, Multimode Ferrule
8-Fiber, Single-mode APC Ferrule
8-Fiber, SM MT Elite® Single-mode APC Ferrule
12-Fiber, Multimode Ferrule
12-Fiber, MM MT Elite®, Multimode
12-Fiber, Single-mode APC Ferrule
12-Fiber, MT Elite® Single-mode APC Ferrule
24-Fiber, Multimode Ferrule
24-Fiber, MM MT Elite®, Multimode
48-Fiber, Multimode Ferrule
MTP Polish type options:
Flat Polish (typical for Multimode connectors)
APC, Angled (typical for Single-Mode connectors)
MTP connector gender:
Male (with pins)
Female (no pins)
Fiber type options:
Corning fiber optic cable SMF28e 9/125µm single-mode fiber, or Jfiber.
Corning fiber optic cable, OM1 MMF 62.5/125µm multimode Fiber, or Jfiber
Corning fiber optic cable, OM2 MMF 50/125µm multimode Fiber, or Jfiber
Corning fiber optic cable, OM3 10Gb laser optimized multimode fiber, or Jfiber
Cable type options:
Bare Ribbon fiber optic cable,
Jacketed ribbon cable.
3mm Round loose tube jacketed fiber optic cable.
2-144 Fiber loose tube jacketed cable (Trunk cable configuration)
Jacket type options:
Riser Rated Jacket
Plenum Rated Jacket
LSZH (Low Smoke Zero Halogens)
Break-out cable options individual diameters
900µm
2mm
3mm
Armored Jacket
Total Cable Length: Any lengthBreak-Out Length: Any Length
Pulling Eye: Optional for either or both ends of the cables.
Male (with pins)
Female (no pins)
Fiber type options:
Corning fiber optic cable SMF28e 9/125µm single-mode fiber, or Jfiber.
Corning fiber optic cable, OM1 MMF 62.5/125µm multimode Fiber, or Jfiber
Corning fiber optic cable, OM2 MMF 50/125µm multimode Fiber, or Jfiber
Corning fiber optic cable, OM3 10Gb laser optimized multimode fiber, or Jfiber
Cable type options:
Bare Ribbon fiber optic cable,
Jacketed ribbon cable.
3mm Round loose tube jacketed fiber optic cable.
2-144 Fiber loose tube jacketed cable (Trunk cable configuration)
Jacket type options:
Riser Rated Jacket
Plenum Rated Jacket
LSZH (Low Smoke Zero Halogens)
Break-out cable options individual diameters
900µm
2mm
3mm
Armored Jacket
Total Cable Length: Any length
Break-Out Length: Any Length
Pulling Eye: Optional for either or both ends of the cables.

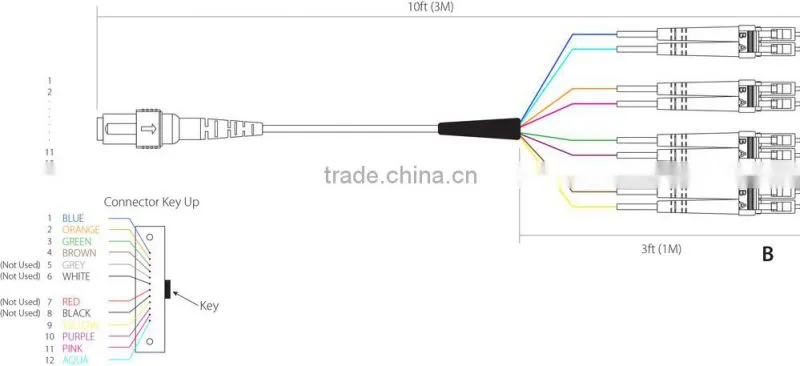

Example Diagram

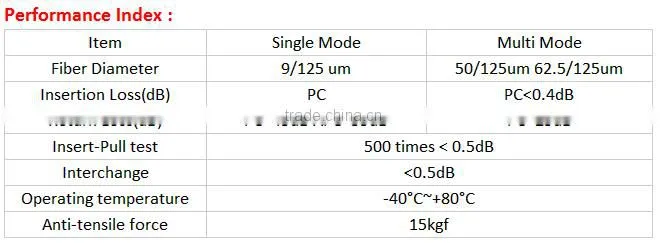

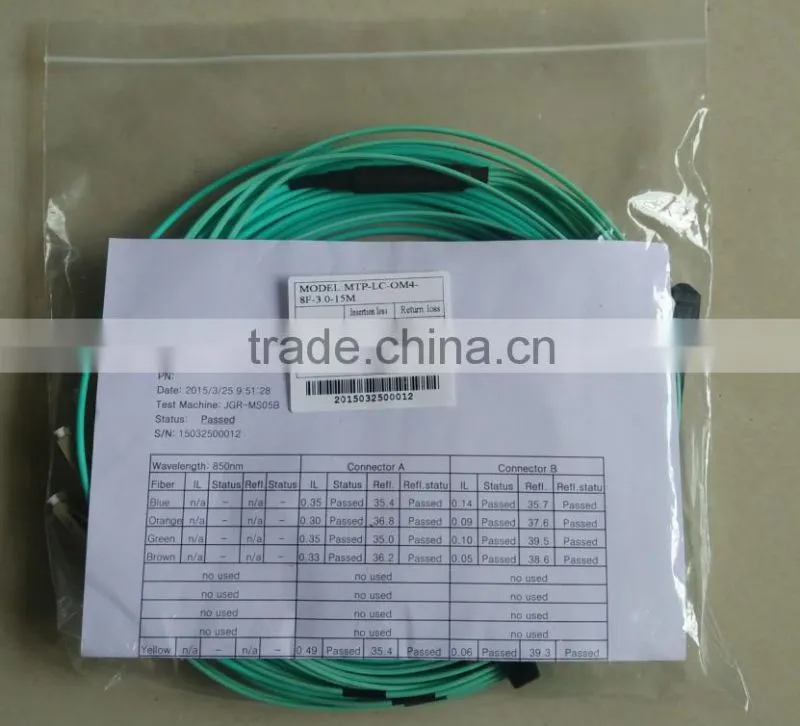

Performance:
a. Insertion Loss:
LC Type: < 0.50 dB
MTP Type: < 0.50 dB
b. Return Loss:
LC Type: ≥ 35 dB
MTP Type: ≥ 20 dB
c. Fiber overcut (MTP): 1.0~3.0um
d. Fiber Extention (LC): -0.05um < H < +0.05um
e. ø1.25mm Ferrule End-Face Radius: 7 < R < 25mm
ø1.25mm/LC Ferrule End-Face Radius: 5 < R < 12mm
f. Apex Offset: < 50um
g. Insertion Loss will be increaed after 500 mating: 0.2dB Max
h. Operating Temperature: -20 ℃to +70℃
i. Storage Temperature: -40 ℃to +80 ℃
Cable Length:3M
| 8 | Labeling Tubing: 10mm |
| 7 | Heat Shrink Tubing: 80mm |
| 6 | Heat Shrink Tubing: 50mm |
| 5 | OM3 (50/125um) ø2.0mm PVC OFNP/LSFRZH |
| 4&3 | Cable Type: 8C ø6.5mm Trunk Cable with ø3.0mm Round Cable |
| 2 | LC Multimode ø1.25 Zirconia |
| 1 | MTP - 8 Fiber Female, Aqua Housing, Black Boot |
MTP / MPO Connections
Often used interchangeably, with the difference being MTP connectors featuring higher performance and enhancements (MTP "Multi-fiber Termination Push-on" is a connector made by USConec that is fully compliant with MPO standards (Multi-fiber Push-on), while offering increased performance and features), MPO or MTP connectors are a multi-fiber solution, offering a higher port density compared to traditional fiber options. The use of MPO / MTP fiber solutions utilizes one cable to hold 12 fibers, making it easy to plug-in and perfect for use in compact server rooms or when simplifying installation is a necessity.
MTP / MPO cables can be used with cassettes or connections to active equipment with MPO / MTP interfaces. The ability to hold multiple fibers, coupled by its simplified connect and reconnect mechanism (push-pull) allows easier installation, increased efficiency, and cost benefits compared to running individual fiber cables. MPO / MTP single mode connectors have an angled ferrule, whereas multimode connectors have a flat ferrule.
Depending on pin configuration, number of strands and the device used, data transmission can go from 10 / 40 / 100 Gigabits. PI Manufacturing MTP cables are made using Corning cable and are plenum rated (OFNP) and tested in accordance to the NFPA 262 for in-wall use. These cables are all offered, depending on configuration in laser optimized multimode fiber OM3 and OM4 options.
Some advantages of using a MTP connector
- Housing is removable (Requires MTP removal tool)
- Change gender anytime (Requires MTP removal tool)
- Uses elliptical shaped pin tips to help guidance and reduce hole wear
- Features a metal pin clamp to eliminate lost pins, fiber damage
