product Description

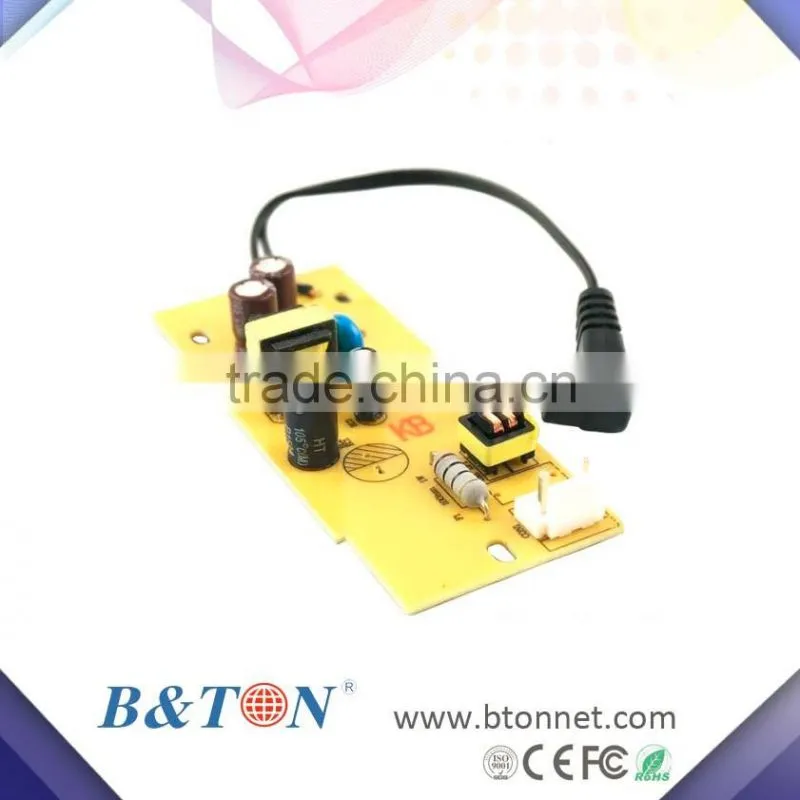

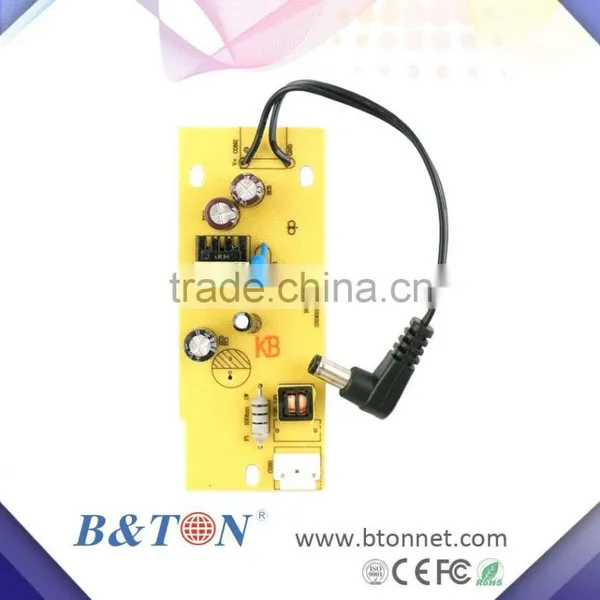

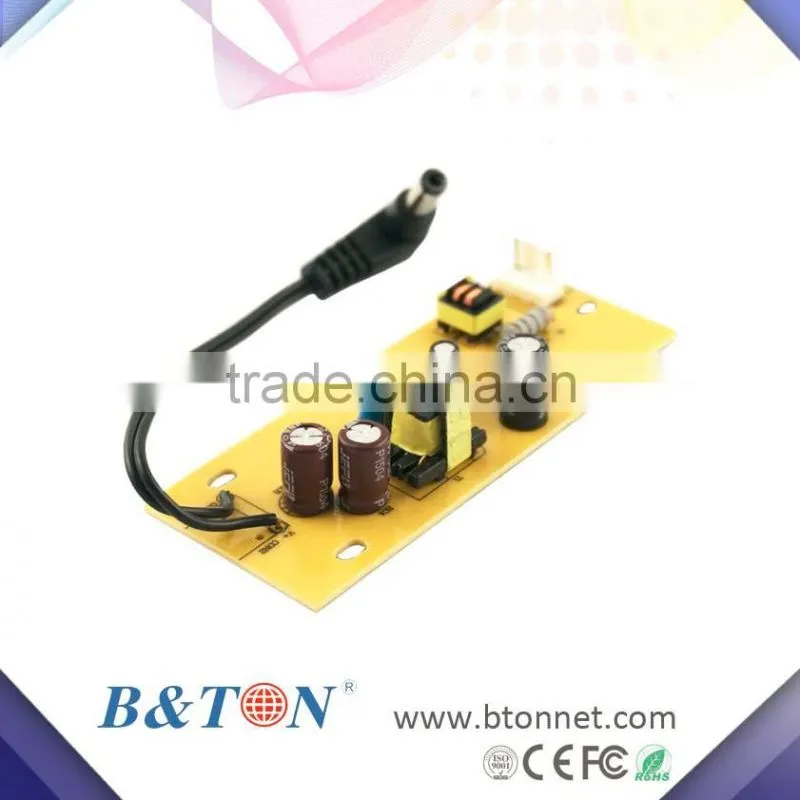

PCBA for charger/adapter/power supply 5V1A open frame with CE FCC
1.Input Characteristic
1.1 Rated Input Voltage
The charger shall operate from 100 Vac to 240 Vac and range switching is unnecessary
1.2 Rated Input Frequency
It is nominal for 50Hz or 60Hz and single phase
1.3 Input Frequency Range
The charger shall operate with an input frequency from 47Hz to 63Hz
1.4 Efficiency
The average efficiency over 68.2% when the input voltage is 115Vac and 230Vac
The maximum no-load power is 0.3W while input is 115Vac and 230Vac.
1.5 Safety Standard
EMC Standard
EN55022,EN55024 FCC Part 15
2,Output Characteristics
2.1 Rated output Voltage ( 5V±0.3V )
2.2 Rated output current is specified from ( 0~1A)
Over Current Protection 1.5 A max
2.3 Rated Power
Out Power 5 Watts
2.4 Output ripple
While input is 100Vac and 240Vac, with Full-Load and No-Load out ripple voltage is less than 80 mv ,measured methods: performed by 20MHz bandwidth in oscilloscope. Applied 0.1uF ceramic and 10uF electrolytic capacitor across output connector terminals measured at the end of DC cable.
2.5 Short Circuit Protection
The charger is protected that a short happened between the output terminals and shall not result in a fire hazard, any damage to this charger and will be normal operation automatically while the short is removed.
2.6 HI-Pot test
3000 VAC. current 10mA max.(at 25℃)the voltage applied to the insulation under test is gradually raised from zero to the prescribed voltage and held at that value for 3S.
2.7 Insulation Impedance
500Vdc/20MΩMin/1S
3.Mechanical Characteristics
AC type: AC 2pin
O/P Cord:22AWG/2468/170mm±20mm
Connector DC Plug:5.5*2.5*10mm
4.Characteristics
Storage Temperature Range :-20 to +60℃
Operating Temperature Range:0 to +35℃
Storage RH Range :5 to 95%
Operating RH Range:20 to 90%
Burn-in:48hours
M.T.B.F:20,000Hours
Product pictures
Packaging & Shipping
* PE/polybag/box/customized, accept packing service
* 7-15 working days for production, Shipped by DHL/Fedex/TNT/UPS/EMS/Bangda,etc
Our Services
Warranty
Our Products are with good quality, all materials are new provided, 1 years warranty with good after-sale service.
Company Information
BTON is one of high- tech companies specialized in reasearching ,manufacturing and marketing of optical and fiber communication technologies. Dong Guan Doublex Electronics Industronics Co., LTD is BTON sister company . Doublex company is an experieced manufacturer of power adapter and switching power adapter for security system etc,striving for a stable and energy efficient poduct .all power adapter have own certification.
Factory review
Part of our professional Certificate
FAQ:
1. OEM&ODM
2. Medium-sized enterprises, more cost-efficient and less administration fee
3. After-sales service 24/7
4. Offer customized service&production packing service
7. Are you a manufacture?
Yes ,100%.
8.what is MOQ?
100PCS.
9.What is the production lead time?
3-15 working days due to the production schedule.
