Control Cable with Shileding and Armour KVV KVVP KVVP2 KVV22 KVV32 KVVR KVVRP KYJV
----Yiteng Cable Technology Hebei Co., Ltd.
1. Applications:
Control cables are used in the site of control circuit, monitoring circuit and protective lines that have A.C rated voltage of 600/1000 V and below.
2. Manufacturing Standards:
The control cable comply well with IEC 60227, IEC60502, IEC 60332-3, IEC 60754-1 and IEC 61034 etc.
3. Operating Features:
•The maximum allowable temperature of conductor is 90 0C for XLPE cable or 700C for PVC cable at normal operation.
•The temperature not less than 0 0C when cables laid.
•Installation bending radius of cable: 6D for no-armor or with screen layer flexible cable.
12D for armor or copper tape screen cables.
(D=overall diameter of cable)
4. Construction:
5. Types, Description and Size:
Type |
Description |
Rated Voltage |
Conductor Size |
|
KVV (ZR/NH-KVV) |
PVC insulated PVC sheathed (flame retardant or fire resistance) control cable |
450/750V |
2~61 cores 0.75~10mm2 |
|
KVVP (ZR/NH-KVVP) |
PVC insulated PVC sheathed copper wire braid shielded (flame retardant or fire resistance) control cable |
||
|
KVVP2 (ZR/NH-KVVP2) |
PVC insulated PVC sheathed copper tape shielded (flame retardant or fire resistance) control cable |
||
|
KVV22 (ZR/NH-KVV22) |
PVC insulated PVC sheathed steel tape armored (flame retardant or fire resistance) control cable |
||
|
KVV32 (ZR-KVV32) |
PVC insulated PVC sheathed steel wire armored (flame retardant) control cable |
||
|
KVVR (ZR-KVVR) |
PVC insulated PVC sheathed (flame retardant) flexible control cable |
||
|
KVVRP (ZR-KVVRP) |
PVC insulated PVC sheathed copper wire braid shielded (flame retardant) flexible control cable |
||
|
KYJV (ZR/NH-KYJV) |
XLPE insulated PVC sheathed (flame retardant or fire resistance) control cable |
0.6/1kV |
2~61 cores 0.75~10mm2 |
|
KYJVP (ZR/NH-KYJVP) |
XLPE insulated PVC sheathed copper wire braid shielded (flame retardant or fire resistance) screen control cable |
||
|
KYJVP2 (ZR/NH-KYJVP2) |
XLPE insulated PVC sheathed copper tape shielded (flame retardant or fire resistance) control cable |
||
|
KYJV22 (ZR/NH-KYJV22) |
XLPE insulated PVC sheathed steel tape armored (flame retardant or fire resistance) control cable |
||
ZR-KYJS-C |
XLPE insulated LSHF sheathed flame retardant control cable |
0.6/1kV |
2~61 cores 0.75~10mm2 |
ZR-KYJSP-C |
XLPE insulated LSHF sheathed copper wire braid shielded flame retardant control cable |
||
ZR-KYJS P2-C |
XLPE insulated LSHF sheathed copper tape shielded flame retardant control cable |
||
ZR-KYJSP3-C |
XLPE insulated LSHF sheathed aluminum tape shielded flame retardant control cable |
||
ZR-KYJS22-C |
XLPE insulated LSHF sheathed steel tape armored flame retardant control cable |
||
ZR-KYJSR-C |
XLPE insulated LSHF sheathed flame retardant flexible control cable |
||
ZR-KYJSRP-C |
XLPE insulated LSHF sheathed copper wire braid shielded flame retardant flexible control cable |
Generally speaking, there are two ways of copper wires braided screen and copper tape wrapped screen for control cables, however, copper wires braided screen has stable structure, the effect of screen won’t change with the cable bending or appearance factors etc, but also doesn’t have influence on cables’ flexibility, braiding density can reach over 80%, besides,copper tape wrapped screen percentage of coverage can reach up to 100%.
Plastic PVC Insulated Screened control Cables are used for rated voltage up to and including 450/750V.
The long-term operating temperature of PVC insulation cable conductor should be lower than 70°C,and that of XLPE insulation should be lower than 90°C.
The installing ambient temperature of cables shouldn’t be lower than 0°C,the Min. bending radius of installing is 6 times of the outer diameter.

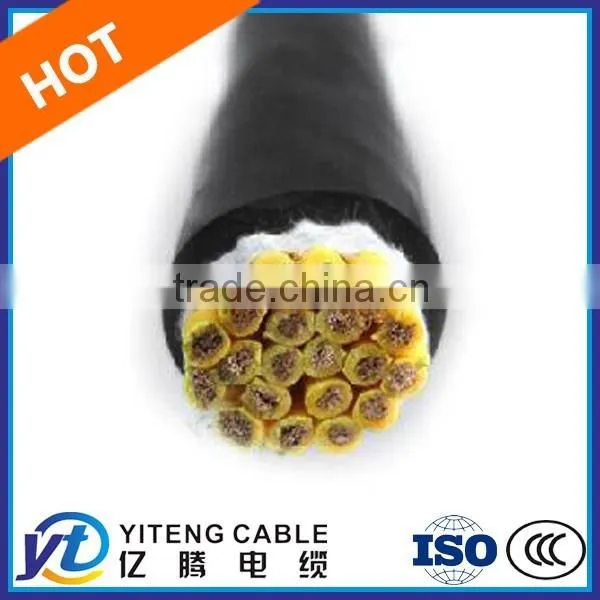

6. Picture Showcase for Control Cable with Shileding and Armour KVV KVVP KVVP2 KVV22 KVV32 KVVR KVVRP KYJV :
