Home > Industrial Equipment & Components > Power & Generating Sets > Diesel Generator > Air Cooled Diesel Generator Deutz Diesel Engine Made in China

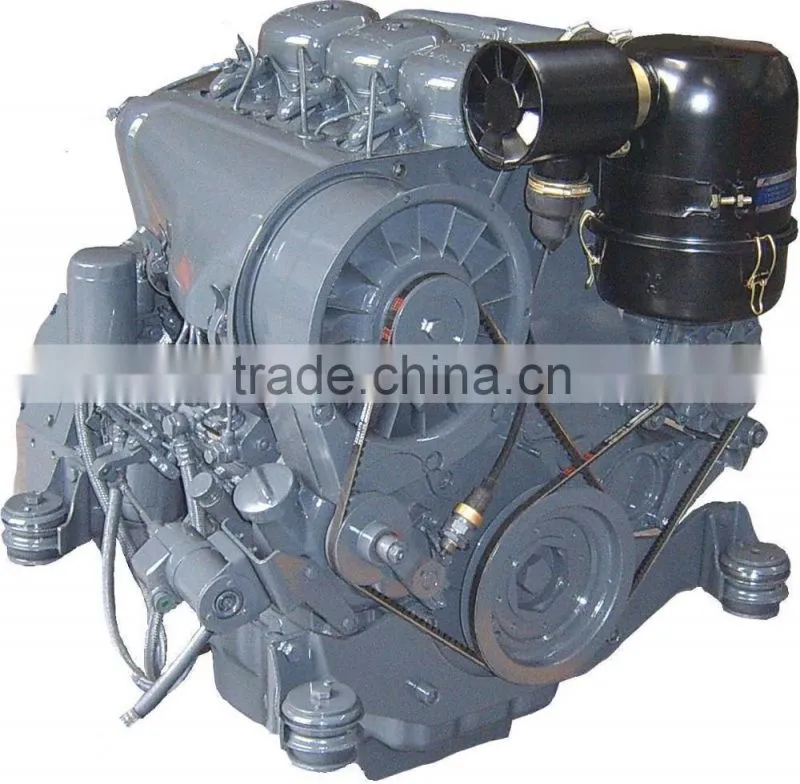

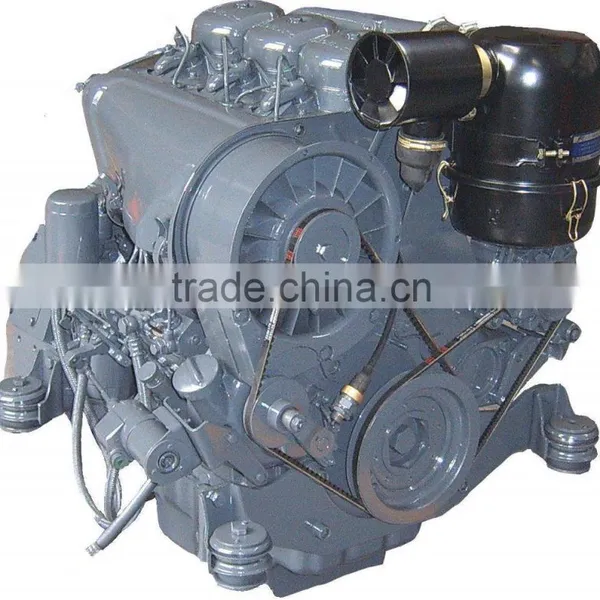

Air Cooled Diesel Generator Deutz Diesel Engine Made in China

Name: Air Cooled Diesel Generator Deutz Diesel Engine Made in China
Brand: Huachai
SKU: 113029795

Air Cooled Diesel Generator Deutz Diesel Engine Made in China thumbnail-1

Air Cooled Diesel Generator Deutz Diesel Engine Made in China photo-1

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Place of Origin:

Hebei, China

Brand Name:

Huachai

Model Number:

15GF

Contact Supplier Request Quote Chat Now

Hebei Huabei Diesel Engine Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

tianjin

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Hebei, China

Brand Name Huachai

Model Number 15GF

Output Type AC Three Phase

Speed 1500rpm/min

Frequency 50HZ

Rated Power 15kw/18.8kva

Rated Voltage 400/230V

Rated Current 29A

Engine Features:

1.Deutz brand diesel engine, single cylinder, single head, AC three phase, high-speed 4-stroke,V-90°shape

2.Turbocharged, inner oil pipe, inner water channel, four valve, central top-mounted 8 hole fuel injector

3.Electronic Governor

4.Bosch/Weifu Fuel injection pump, electronic motor starting system

5.Forged steel crankshaft ( imported from Deutz AG Germany), cast iron cylinder and replaceable wet type cylinder liner, crankshaft(imported from Deutz AG Germany), main bearings and big end bearings (imported from Deutz AG Germany)

Alternator Features:

1.Meccalte/Stamford/Customized

2.Brushless, 4 poles,rotation magnet, IP23(NEMA1)4.H class insulation system

Control Panel:Deep Sea

1.Automatic control panel, LCD display

2.Emergency stop

Generator-set Specification Data
Generator-set		Diesel Engine (DEUTZ)		Alternator (Stamford)
Model	15GF	Model	F3L912D	Model	PI144D
Rated prime power	15KW	Prime power	24KW	Rated power	16KW
Standby power	16.5KW	Stand power	26KW	Rated voltage	400V/230V
Rated voltage	400/230V	Rated speed	1500rpm	Efficiency	85.10%
Rated frequency	50Hz	No. of Cylinder	3	Rated current	29A
Rated currency	29A	Bore/stroke	100/120	Power factor	0.8
Power factor	0.8	Cylinder arrangement	Line	Frequency	50Hz
Steady state volt deviation	≤±5%	Fuel consumption	238g/kwh	Protection/ insulation	IP23/H
Steady state frequency	≤2.5%	Start mode	24V electrical	Exciting way	brushless self-exciting
Frequency drop scope	≤8%	Governor	mechanical	Weight	121kg
Phase	three phase	Aspiration type	Naturally aspirated
Base Frame	steel	Cooling way	air cooled
Dimension (mm)	1350×770×1100	Displacement	2.282L
Weight	580kg	Weight	275kg
